| Description | 4.096 VOLT LOW KNEE CURRENT Shunt VOLTAGE REFERENCE |
| Pages / Page | 6 / 4 — A Product Line of. ZRC400. Ordering Information*. Order. Tol. Reel Size. … |
| File Format / Size | PDF / 103 Kb |
| Document Language | English |

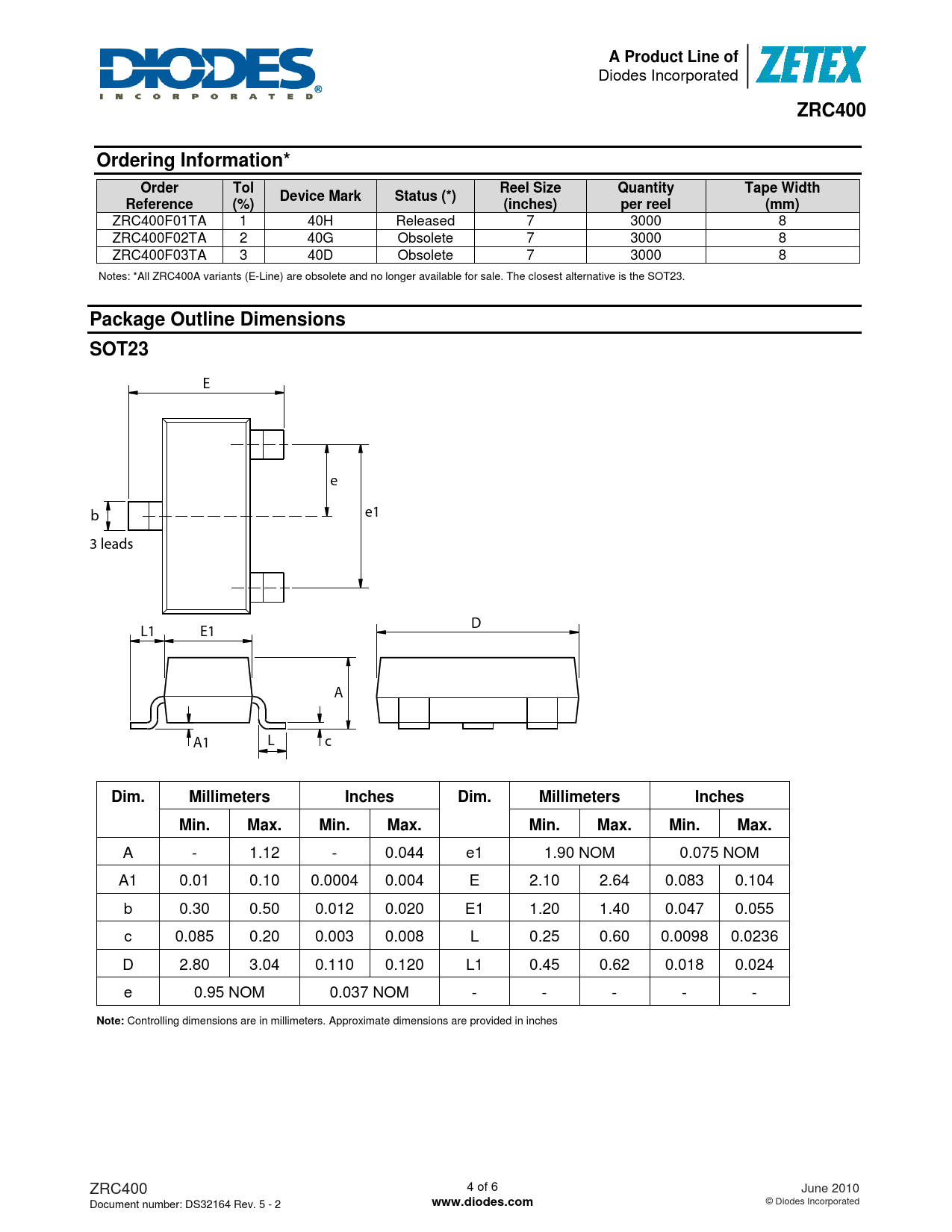

A Product Line of. ZRC400. Ordering Information*. Order. Tol. Reel Size. Quantity. Tape Width. Device Mark. Status (*). Reference. (%)
Model Line for this Datasheet
Text Version of Document
A Product Line of
Diodes Incorporated
ZRC400 Ordering Information* Order Tol Reel Size Quantity Tape Width Device Mark Status (*) Reference (%) (inches) per reel (mm)
ZRC400F01TA 1 40H Released 7 3000 8 ZRC400F02TA 2 40G Obsolete 7 3000 8 ZRC400F03TA 3 40D Obsolete 7 3000 8 Notes: *All ZRC400A variants (E-Line) are obsolete and no longer available for sale. The closest alternative is the SOT23.
Package Outline Dimensions SOT23
E e e1 b 3 leads D L1 E1 A A1 L c
Dim. Millimeters Inches Dim. Millimeters Inches Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.12 - 0.044 e1 1.90 NOM 0.075 NOM A1 0.01 0.10 0.0004 0.004 E 2.10 2.64 0.083 0.104 b 0.30 0.50 0.012 0.020 E1 1.20 1.40 0.047 0.055 c 0.085 0.20 0.003 0.008 L 0.25 0.60 0.0098 0.0236 D 2.80 3.04 0.110 0.120 L1 0.45 0.62 0.018 0.024 e 0.95 NOM 0.037 NOM - - - - -
Note:
Controlling dimensions are in millimeters. Approximate dimensions are provided in inches ZRC400 4 of 6 June 2010 Document number: DS32164 Rev. 5 - 2
