Precision, Micropower, 3V Series Voltage Reference in SOT23. ABSOLUTE MAXIMUM RATINGS. MAX6010. ELECTRICAL CHARACTERISTICS
Model Line for this Datasheet
Text Version of Document

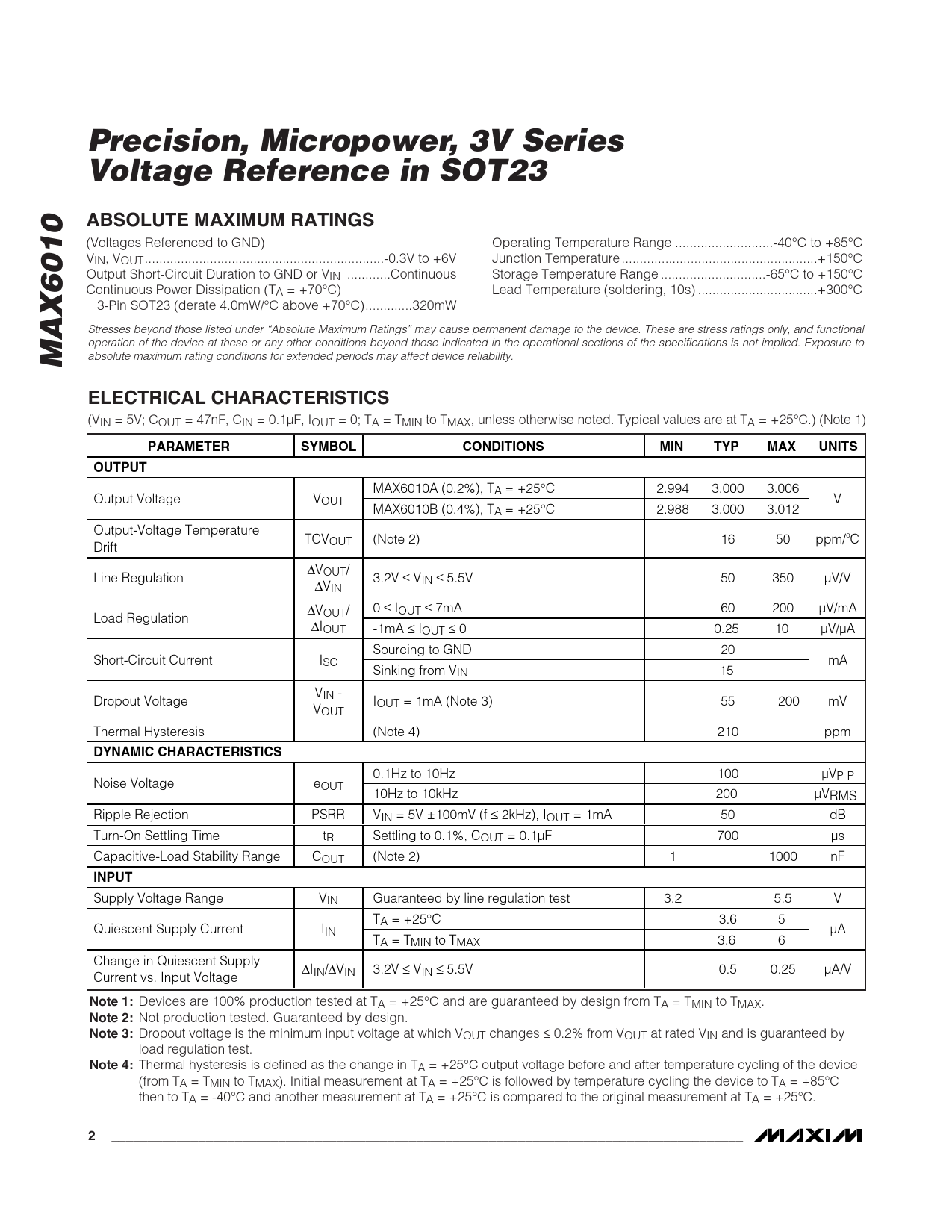

Precision, Micropower, 3V Series Voltage Reference in SOT23 ABSOLUTE MAXIMUM RATINGS
(Voltages Referenced to GND) Operating Temperature Range ...-40°C to +85°C VIN, VOUT..-0.3V to +6V Junction Temperature ..+150°C Output Short-Circuit Duration to GND or VIN ..Continuous Storage Temperature Range ...-65°C to +150°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s) ...+300°C 3-Pin SOT23 (derate 4.0mW/°C above +70°C)...320mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX6010 ELECTRICAL CHARACTERISTICS
(VIN = 5V; COUT = 47nF, CIN = 0.1µF, IOUT = 0; TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6010A (0.2%), TA = +25°C 2.994 3.000 3.006 Output Voltage VOUT V MAX6010B (0.4%), TA = +25°C 2.988 3.000 3.012 Output-Voltage Temperature TCV Drift OUT (Note 2) 16 50 ppm/oC ∆VOUT/ Line Regulation ∆ 3.2V ≤ V V IN ≤ 5.5V 50 350 µV/V IN 0 ∆VOUT/ ≤ IOUT ≤ 7mA 60 200 µV/mA Load Regulation ∆IOUT -1mA ≤ IOUT ≤ 0 0.25 10 µV/µA Sourcing to GND 20 Short-Circuit Current ISC mA Sinking from VIN 15 VIN - Dropout Voltage I V OUT = 1mA (Note 3) 55 200 mV OUT Thermal Hysteresis (Note 4) 210 ppm
DYNAMIC CHARACTERISTICS
0.1Hz to 10Hz 100 µVP-P Noise Voltage eOUT 10Hz to 10kHz 200 µVRMS Ripple Rejection PSRR VIN = 5V ±100mV (f ≤ 2kHz), IOUT = 1mA 50 dB Turn-On Settling Time tR Settling to 0.1%, COUT = 0.1µF 700 µs Capacitive-Load Stability Range COUT (Note 2) 1 1000 nF
INPUT
Supply Voltage Range VIN Guaranteed by line regulation test 3.2 5.5 V TA = +25°C 3.6 5 Quiescent Supply Current IIN µA TA = TMIN to TMAX 3.6 6 Change in Quiescent Supply ∆I Current vs. Input Voltage IN/∆VIN 3.2V ≤ VIN ≤ 5.5V 0.5 0.25 µA/V
Note 1:
Devices are 100% production tested at TA = +25°C and are guaranteed by design from TA = TMIN to TMAX.
Note 2:
Not production tested. Guaranteed by design.
Note 3:
Dropout voltage is the minimum input voltage at which VOUT changes ≤ 0.2% from VOUT at rated VIN and is guaranteed by load regulation test.
Note 4:
Thermal hysteresis is defined as the change in TA = +25°C output voltage before and after temperature cycling of the device (from TA = TMIN to TMAX). Initial measurement at TA = +25°C is followed by temperature cycling the device to TA = +85°C then to TA = -40°C and another measurement at TA = +25°C is compared to the original measurement at TA = +25°C.
