Datasheet PCR406, PCR606 (Hao Pin Microelectronics)
| Manufacturer | Hao Pin Microelectronics |
| Description | Sensitive Gate Thyristors |
| Pages / Page | 4 / 1 — PCR406 TM HPM 606 SCRs HAOPIN MICROELECTRONICS CO.,LTD. Description |
| File Format / Size | PDF / 106 Kb |
| Document Language | English |
PCR406 TM HPM 606 SCRs HAOPIN MICROELECTRONICS CO.,LTD. Description
Model Line for this Datasheet
Text Version of Document

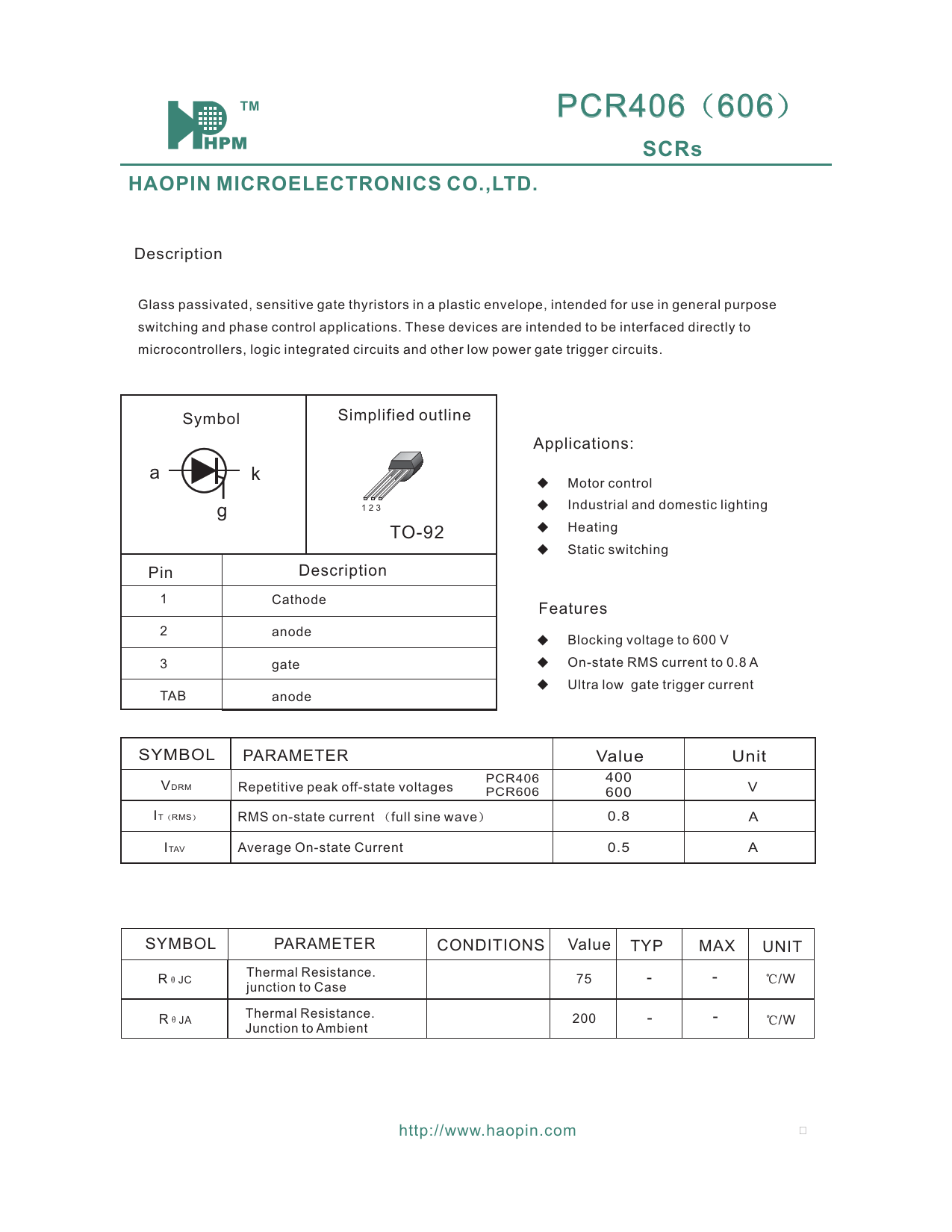

PCR406 TM HPM 606 SCRs HAOPIN MICROELECTRONICS CO.,LTD. Description
Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose
switching and phase control applications. These devices are intended to be interfaced directly to
microcontrollers, logic integrated circuits and other low power gate trigger circuits. Simplified outline Symbol Applications: a k Motor control g Industrial and domestic lighting 123 Heating TO-92 Static switching Description Pin
1 Cathode 2 anode 3 gate TAB anode SYMBOL PARAMETER V DRM IT RMS I TAV SYMBOL Features
Blocking voltage to 600 V
On-state RMS current to 0.8 A
Ultra low gate trigger current Repetitive peak off-state voltages
RMS on-state current PCR406
PCR606 full sine wave Average On-state Current PARAMETER CONDITIONS Value Unit 400
600 V 0.8 A 0.5 A Value TYP MAX UNIT R JC Thermal Resistance.
junction to Case 75 -/W R Thermal Resistance.
Junction to Ambient 200 -/W JA http://www.haopin.com ¼
