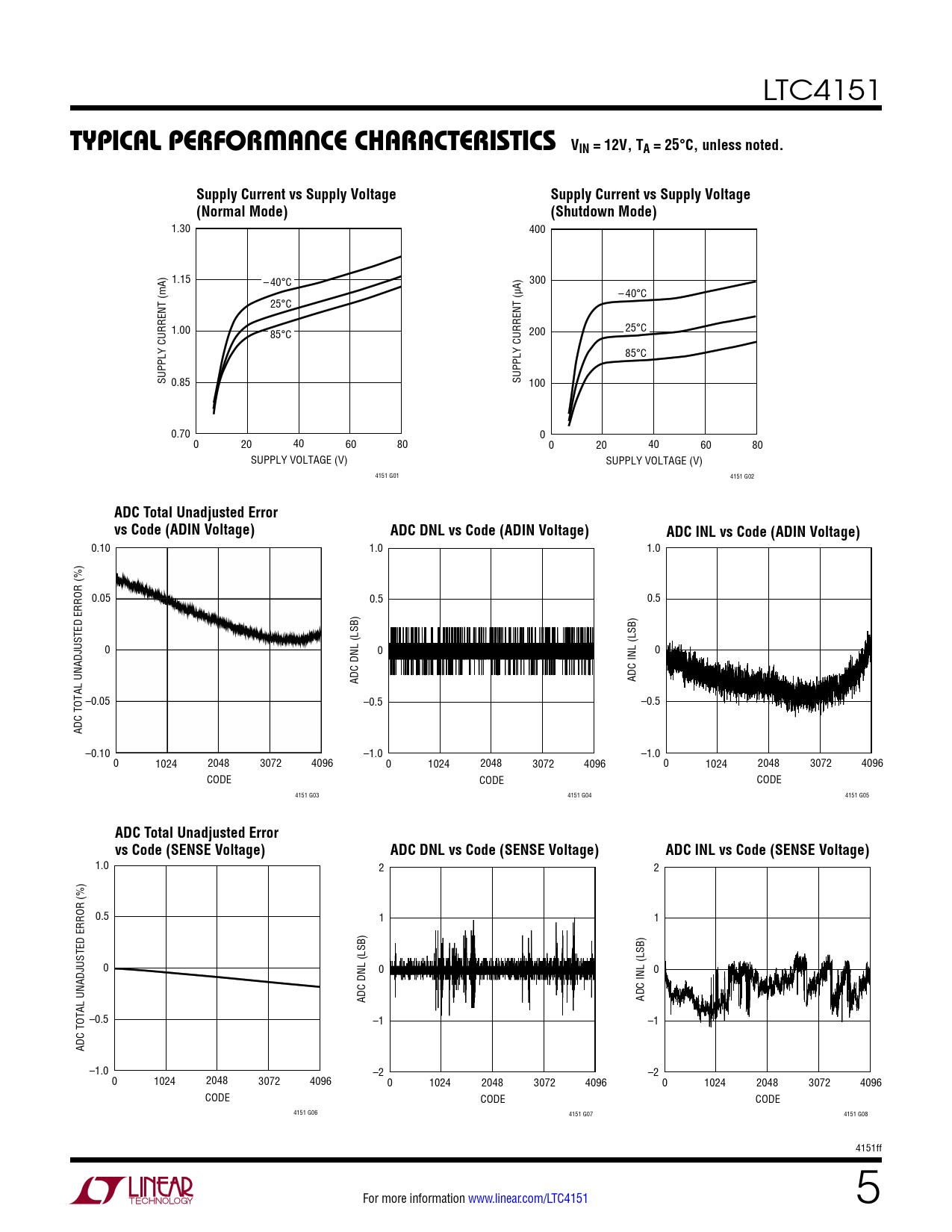

Typical perForMance characTerisTics VIN = 12V, TA = 25°C, unless noted. Supply Current vs Supply Voltage. (Normal Mode)
Model Line for this Datasheet
