Datasheet STM32F405xx, STM32F407xx - 168
| Description | ARM Cortex-M4 32b MCU+FPU, 210DMIPS, up to 1MB Flash/192+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 comm. interfaces & camera |
| Pages / Page | 185 / 168 — Package characteristics. STM32F405xx, STM32F407xx |
| File Format / Size | PDF / 5.6 Mb |
| Document Language | English |
Package characteristics. STM32F405xx, STM32F407xx
Text Version of Document

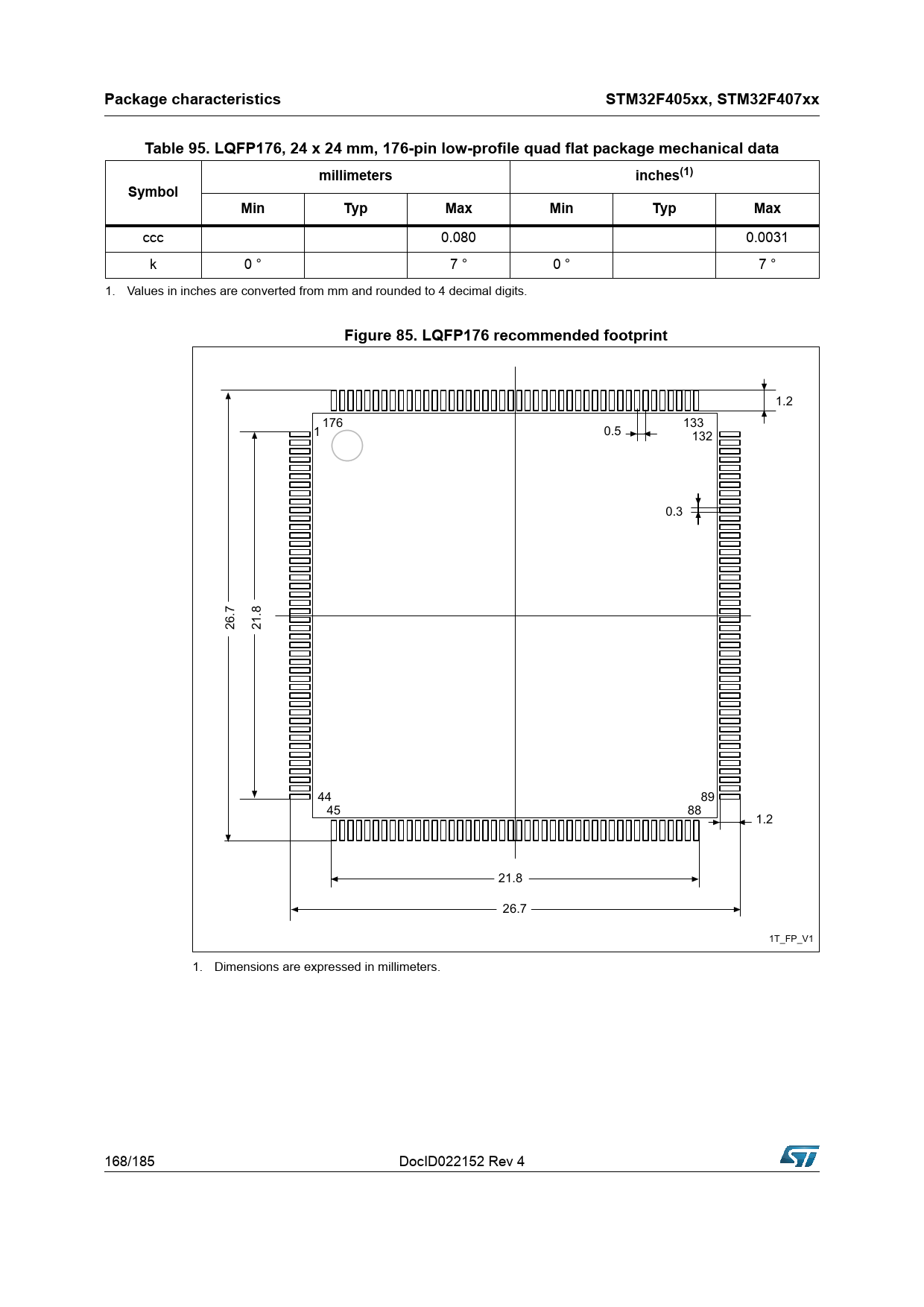

Package characteristics STM32F405xx, STM32F407xx Table 95. LQFP176, 24 x 24 mm, 176-pin low-profile quad flat package mechanical data millimeters inches(1) Symbol Min Typ Max Min Typ Max
ccc 0.080 0.0031 k 0 ° 7 ° 0 ° 7 ° 1. Values in inches are converted from mm and rounded to 4 decimal digits.
Figure 85. LQFP176 recommended footprint
