Datasheet LM317L (Fairchild)
| Manufacturer | Fairchild |
| Description | 3-Terminal 0.1 A Positive Adjustable Regulator |
| Pages / Page | 8 / 1 — LM317L —. 3-T. e rminal 0.1A. LM317L 3-Terminal 0.1A Positive Adjustable … |
| File Format / Size | PDF / 241 Kb |
| Document Language | English |

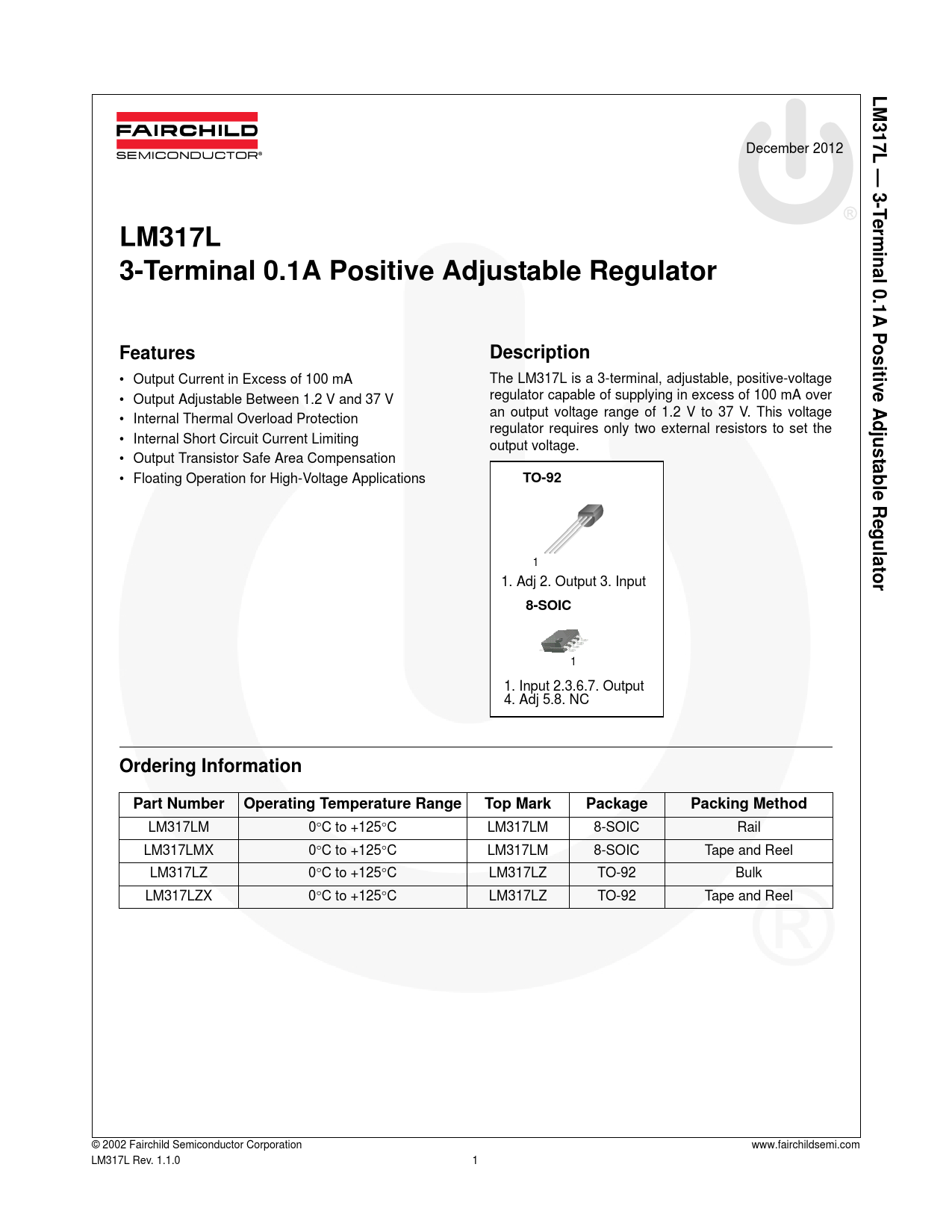

LM317L —. 3-T. e rminal 0.1A. LM317L 3-Terminal 0.1A Positive Adjustable Regulator. Positiv. Features. Description. Adjust. able. TO-92
Model Line for this Datasheet
Text Version of Document
LM317L —
December 2012
3-T e rminal 0.1A LM317L 3-Terminal 0.1A Positive Adjustable Regulator Positiv Features Description
• Output Current in Excess of 100 mA The LM317L is a 3-terminal, adjustable, positive-voltage
e
• Output Adjustable Between 1.2 V and 37 V regulator capable of supplying in excess of 100 mA over
Adjust
an output voltage range of 1.2 V to 37 V. This voltage • Internal Thermal Overload Protection regulator requires only two external resistors to set the • Internal Short Circuit Current Limiting output voltage. • Output Transistor Safe Area Compensation
able
• Floating Operation for High-Voltage Applications
TO-92 Regulator
1 1. Adj 2. Output 3. Input
8-SOIC
1 1. Input 2.3.6.7. Output 4. Adj 5.8. NC
Ordering Information Part Number Operating Temperature Range Top Mark Package Packing Method
LM317LM 0°C to +125°C LM317LM 8-SOIC Rail LM317LMX 0°C to +125°C LM317LM 8-SOIC Tape and Reel LM317LZ 0°C to +125°C LM317LZ TO-92 Bulk LM317LZX 0°C to +125°C LM317LZ TO-92 Tape and Reel © 2002 Fairchild Semiconductor Corporation www.fairchildsemi.com LM317L Rev. 1.1.0 1
