Datasheet 74HC590 - 10

Description8-bit binary counter with output register; 3-state
Pages / Page21 / 10 — NXP Semiconductors. 74HC590. 8-bit binary counter with output register; …
File Format / SizePDF / 502 Kb
Document LanguageEnglish

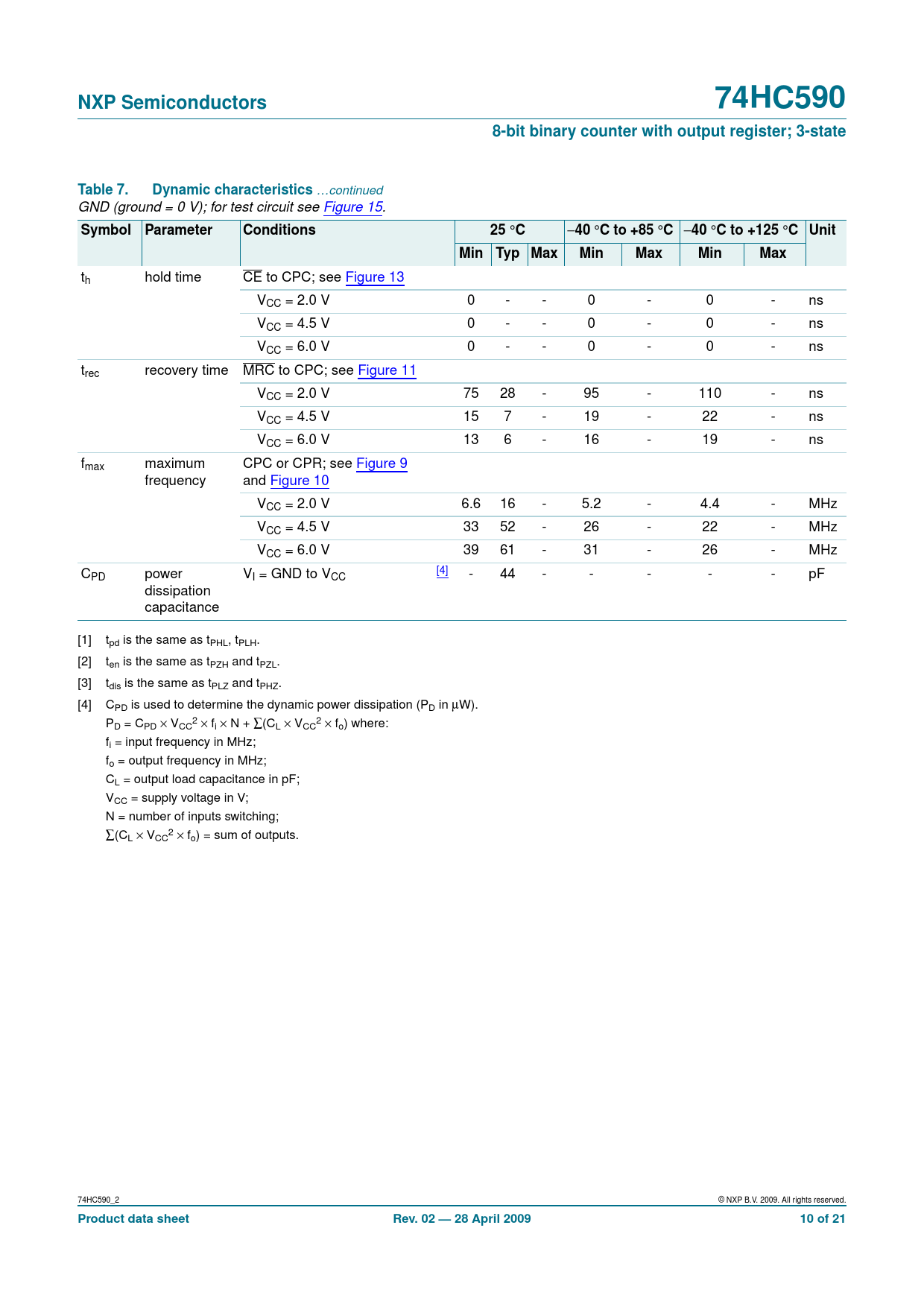

NXP Semiconductors. 74HC590. 8-bit binary counter with output register; 3-state. Table 7. Dynamic characteristics. Symbol

NXP Semiconductors 74HC590 8-bit binary counter with output register; 3-state Table 7 Dynamic characteristics Symbol

Model Line for this Datasheet

Text Version of Document

link to page 13 link to page 12 link to page 11 link to page 11 link to page 10
NXP Semiconductors 74HC590 8-bit binary counter with output register; 3-state Table 7. Dynamic characteristics
…continued GND (ground = 0 V); for test circuit see Figure 15.
Symbol Parameter Conditions 25
°
C

40
°
C to +85
°
C

40
°
C to +125
°
C Unit Min Typ Max Min Max Min Max
th hold time CE to CPC; see Figure 13 VCC = 2.0 V 0 - - 0 - 0 - ns VCC = 4.5 V 0 - - 0 - 0 - ns VCC = 6.0 V 0 - - 0 - 0 - ns trec recovery time MRC to CPC; see Figure 11 VCC = 2.0 V 75 28 - 95 - 110 - ns VCC = 4.5 V 15 7 - 19 - 22 - ns VCC = 6.0 V 13 6 - 16 - 19 - ns fmax maximum CPC or CPR; see Figure 9 frequency and Figure 10 VCC = 2.0 V 6.6 16 - 5.2 - 4.4 - MHz VCC = 4.5 V 33 52 - 26 - 22 - MHz VCC = 6.0 V 39 61 - 31 - 26 - MHz C [4] PD power VI = GND to VCC - 44 - - - - - pF dissipation capacitance [1] tpd is the same as tPHL, tPLH. [2] ten is the same as tPZH and tPZL. [3] tdis is the same as tPLZ and tPHZ. [4] CPD is used to determine the dynamic power dissipation (PD in µW). P 2 2 D = CPD × VCC × fi × N + ∑(CL × VCC × fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; ∑(C 2 L × VCC × fo) = sum of outputs. 74HC590_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 28 April 2009 10 of 21
