Datasheet OP1177, OP2177, OP4177 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Precision Low Noise, Low Input Bias Current Quad Operational Amplifier |
| Pages / Page | 24 / 5 — OP1177/OP2177/OP4177. ABSOLUTE MAXIMUM RATINGS. Table 3. THERMAL … |
| Revision | H |
| File Format / Size | PDF / 484 Kb |
| Document Language | English |
OP1177/OP2177/OP4177. ABSOLUTE MAXIMUM RATINGS. Table 3. THERMAL RESISTANCE. Parameter Rating. Table 4. Thermal Resistance
Model Line for this Datasheet
OP1177
Text Version of Document
link to page 5

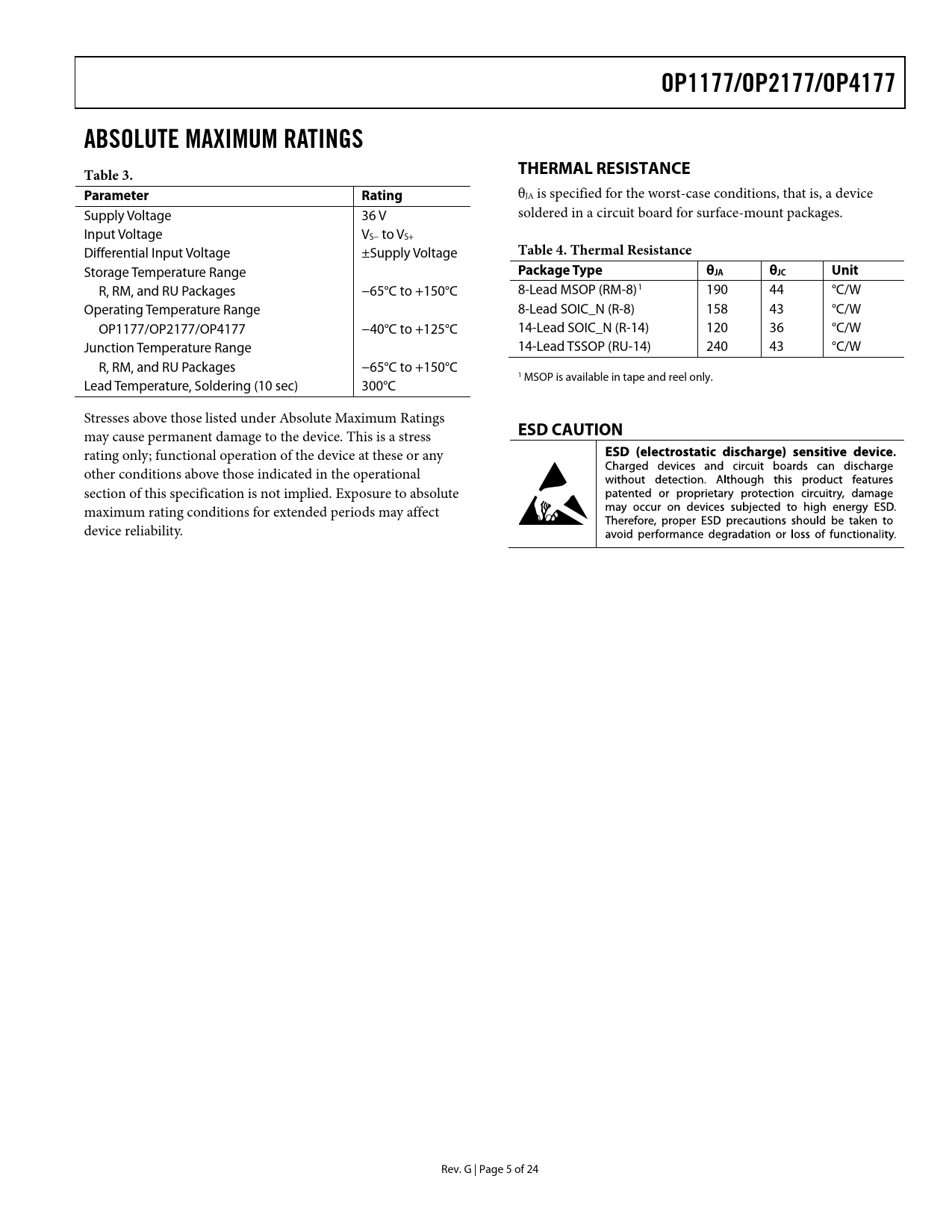

OP1177/OP2177/OP4177 ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 36 V soldered in a circuit board for surface-mount packages. Input Voltage VS− to VS+ Differential Input Voltage ±Supply Voltage
Table 4. Thermal Resistance
Storage Temperature Range
Package Type θJA θJC Unit
R, RM, and RU Packages −65°C to +150°C 8-Lead MSOP (RM-8)1 190 44 °C/W Operating Temperature Range 8-Lead SOIC_N (R-8) 158 43 °C/W OP1177/OP2177/OP4177 −40°C to +125°C 14-Lead SOIC_N (R-14) 120 36 °C/W Junction Temperature Range 14-Lead TSSOP (RU-14) 240 43 °C/W R, RM, and RU Packages −65°C to +150°C 1 MSOP is available in tape and reel only. Lead Temperature, Soldering (10 sec) 300°C Stresses above those listed under Absolute Maximum Ratings
