Datasheet LT5400 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Quad Matched Resistor Network |
| Pages / Page | 12 / 7 — Typical applicaTions. Difference Amplifier. Low Noise Reference Divider … |
| File Format / Size | PDF / 260 Kb |
| Document Language | English |
Typical applicaTions. Difference Amplifier. Low Noise Reference Divider with Op Amp Input Bias Current Balancing
Model Line for this Datasheet
- LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LT5400ACMS8E-2#PBF LT5400ACMS8E-2#TRPBF LT5400ACMS8E-3#PBF LT5400ACMS8E-3#TRPBF LT5400ACMS8E-4#PBF LT5400ACMS8E-4#TRPBF LT5400ACMS8E-5#PBF LT5400ACMS8E-5#TRPBF LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LT5400AHMS8E-2#PBF LT5400AHMS8E-2#TRPBF LT5400AHMS8E-3#PBF LT5400AHMS8E-3#TRPBF LT5400AHMS8E-4#PBF LT5400AHMS8E-4#TRPBF LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF LT5400AIMS8E-2#PBF LT5400AIMS8E-2#TRPBF LT5400AIMS8E-3#PBF LT5400AIMS8E-3#TRPBF LT5400AIMS8E-4#PBF LT5400AIMS8E-4#TRPBF LT5400AIMS8E-5#PBF LT5400AIMS8E-5#TRPBF LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LT5400BCMS8E-2#PBF LT5400BCMS8E-2#TRPBF LT5400BCMS8E-3#PBF LT5400BCMS8E-3#TRPBF LT5400BCMS8E-4#PBF LT5400BCMS8E-4#TRPBF LT5400BCMS8E-5#PBF LT5400BCMS8E-5#TRPBF LT5400BCMS8E-6#PBF LT5400BCMS8E-6#TRPBF LT5400BCMS8E-7#PBF LT5400BCMS8E-7#TRPBF LT5400BCMS8E-8#PBF LT5400BCMS8E-8#TRPBF LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LT5400BHMS8E-2#PBF LT5400BHMS8E-2#TRPBF LT5400BHMS8E-3#PBF LT5400BHMS8E-3#TRPBF LT5400BHMS8E-4#PBF LT5400BHMS8E-4#TRPBF LT5400BHMS8E-6#PBF LT5400BHMS8E-6#TRPBF LT5400BHMS8E-7#PBF LT5400BHMS8E-7#TRPBF LT5400BHMS8E-8#PBF LT5400BHMS8E-8#TRPBF LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LT5400BIMS8E-2#PBF LT5400BIMS8E-2#TRPBF LT5400BIMS8E-3#PBF LT5400BIMS8E-3#TRPBF LT5400BIMS8E-4#PBF LT5400BIMS8E-4#TRPBF LT5400BIMS8E-5#PBF LT5400BIMS8E-5#TRPBF LT5400BIMS8E-6#PBF LT5400BIMS8E-6#TRPBF LT5400BIMS8E-7#PBF LT5400BIMS8E-7#TRPBF LT5400BIMS8E-8#PBF LT5400BIMS8E-8#TRPBF LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF LT5400BMPMS8E-2#PBF LT5400BMPMS8E-2#TRPBF LT5400BMPMS8E-3#PBF LT5400BMPMS8E-3#TRPBF LT5400BMPMS8E-4#PBF LT5400BMPMS8E-4#TRPBF LT5400BMPMS8E-6#PBF LT5400BMPMS8E-6#TRPBF LT5400BMPMS8E-7#PBF LT5400BMPMS8E-7#TRPBF LT5400BMPMS8E-8#PBF LT5400BMPMS8E-8#TRPBF
- LT5400ACMS8E-1#PBF LT5400ACMS8E-1#TRPBF LT5400AHMS8E-1#PBF LT5400AHMS8E-1#TRPBF LT5400AIMS8E-1#PBF LT5400AIMS8E-1#TRPBF
- LT5400ACMS8E-2#PBF LT5400ACMS8E-2#TRPBF LT5400AHMS8E-2#PBF LT5400AHMS8E-2#TRPBF LT5400AIMS8E-2#PBF LT5400AIMS8E-2#TRPBF
- LT5400ACMS8E-3#PBF LT5400ACMS8E-3#TRPBF LT5400AHMS8E-3#PBF LT5400AHMS8E-3#TRPBF LT5400AIMS8E-3#PBF LT5400AIMS8E-3#TRPBF
- LT5400ACMS8E-4#PBF LT5400ACMS8E-4#TRPBF LT5400AHMS8E-4#PBF LT5400AHMS8E-4#TRPBF LT5400AIMS8E-4#PBF LT5400AIMS8E-4#TRPBF
- LT5400BCMS8E-1#PBF LT5400BCMS8E-1#TRPBF LT5400BHMS8E-1#PBF LT5400BHMS8E-1#TRPBF LT5400BIMS8E-1#PBF LT5400BIMS8E-1#TRPBF LT5400BMPMS8E-1#PBF LT5400BMPMS8E-1#TRPBF
- LT5400BCMS8E-2#PBF LT5400BCMS8E-2#TRPBF LT5400BHMS8E-2#PBF LT5400BHMS8E-2#TRPBF LT5400BIMS8E-2#PBF LT5400BIMS8E-2#TRPBF LT5400BMPMS8E-2#PBF LT5400BMPMS8E-2#TRPBF
- LT5400BCMS8E-3#PBF LT5400BCMS8E-3#TRPBF LT5400BHMS8E-3#PBF LT5400BHMS8E-3#TRPBF LT5400BIMS8E-3#PBF LT5400BIMS8E-3#TRPBF LT5400BMPMS8E-3#PBF LT5400BMPMS8E-3#TRPBF
- LT5400BCMS8E-4#PBF LT5400BCMS8E-4#TRPBF LT5400BHMS8E-4#PBF LT5400BHMS8E-4#TRPBF LT5400BIMS8E-4#PBF LT5400BIMS8E-4#TRPBF LT5400BMPMS8E-4#PBF LT5400BMPMS8E-4#TRPBF
- LT5400BCMS8E-6#PBF LT5400BCMS8E-6#TRPBF LT5400BHMS8E-6#PBF LT5400BHMS8E-6#TRPBF LT5400BIMS8E-6#PBF LT5400BIMS8E-6#TRPBF LT5400BMPMS8E-6#PBF LT5400BMPMS8E-6#TRPBF
Text Version of Document
LT5400

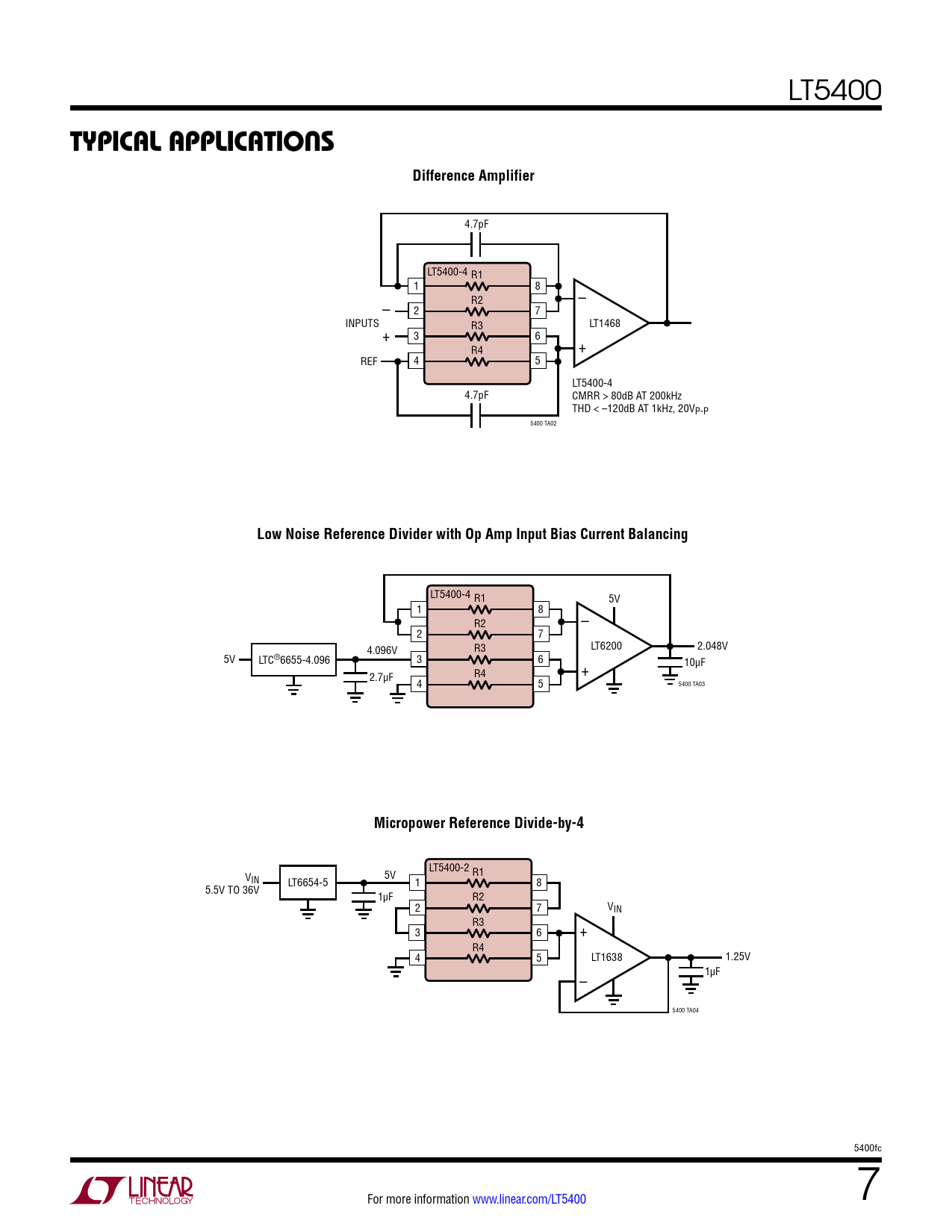

Typical applicaTions Difference Amplifier
4.7pF LT5400-4 R1 1 8 R2 – – 2 7 INPUTS R3 LT1468 + 3 6 R4 + REF 4 5 LT5400-4 4.7pF CMRR > 80dB AT 200kHz THD < –120dB AT 1kHz, 20VP-P 5400 TA02
Low Noise Reference Divider with Op Amp Input Bias Current Balancing
LT5400-4 R1 5V 1 8 R2 – 2 7 4.096V R3 LT6200 2.048V 5V LTC®6655-4.096 3 6 10µF R4 + 2.7µF 4 5 5400 TA03
Micropower Reference Divide-by-4
LT5400-2 R1 V 5V IN LT6654-5 1 8 5.5V TO 36V 1µF R2 2 7 VIN R3 3 6 + R4 4 5 LT1638 1.25V 1µF – 5400 TA04 5400fc For more information www.linear.com/LT5400 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
