| Manufacturer | Analog Devices |
| Description | Low Cost, 300 MHz Rail-to-Rail Amplifier (Single with Disable) |
| Pages / Page | 20 / 5 — Data Sheet. AD8061/AD8062/AD8063. Table 3. Parameter. Conditions. Min. … |
| Revision | J |
| File Format / Size | PDF / 396 Kb |
| Document Language | English |
Data Sheet. AD8061/AD8062/AD8063. Table 3. Parameter. Conditions. Min. Typ. Max Unit
Model Line for this Datasheet
Text Version of Document

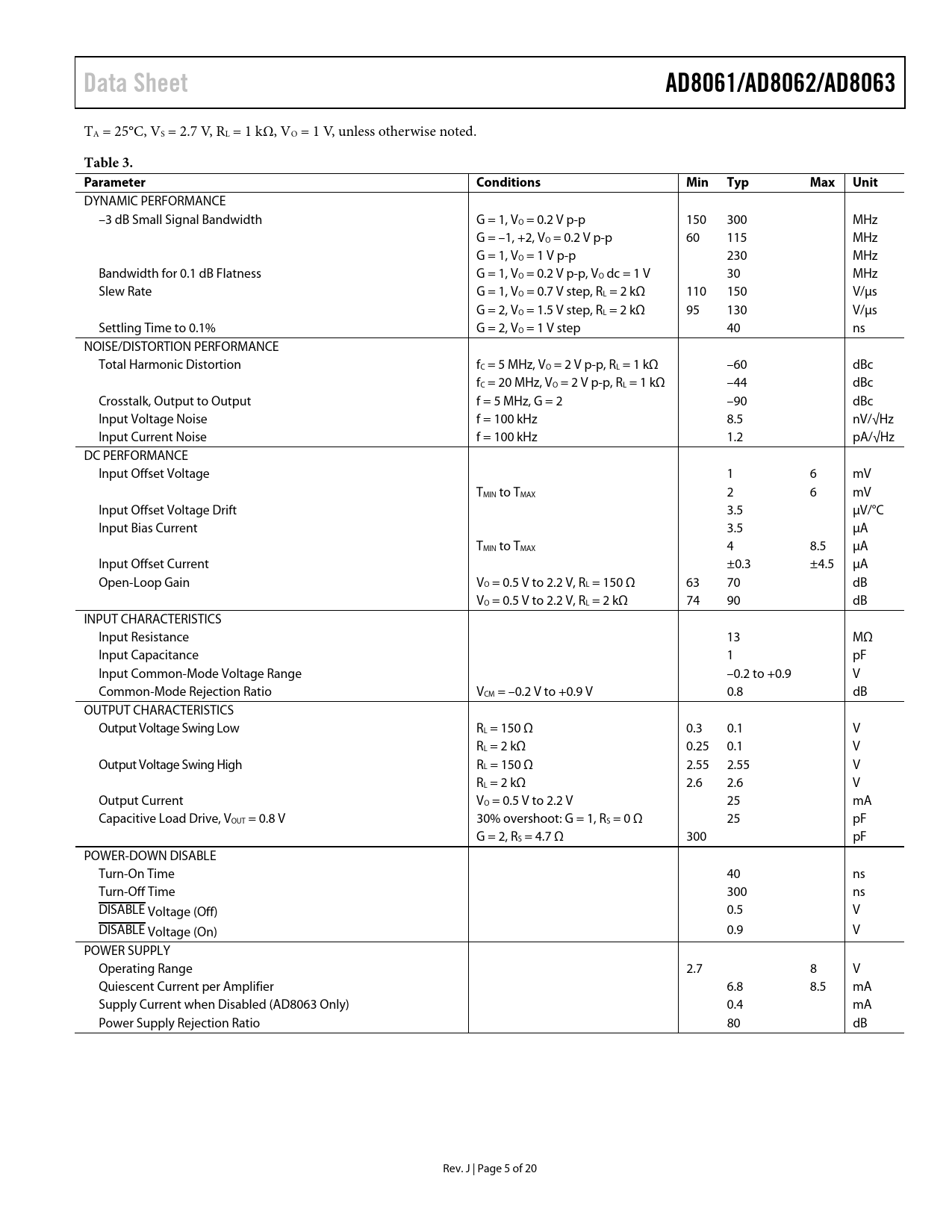

Data Sheet AD8061/AD8062/AD8063
TA = 25°C, VS = 2.7 V, RL = 1 kΩ, VO = 1 V, unless otherwise noted.
Table 3. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Small Signal Bandwidth G = 1, VO = 0.2 V p-p 150 300 MHz G = –1, +2, VO = 0.2 V p-p 60 115 MHz G = 1, VO = 1 V p-p 230 MHz Bandwidth for 0.1 dB Flatness G = 1, VO = 0.2 V p-p, VO dc = 1 V 30 MHz Slew Rate G = 1, VO = 0.7 V step, RL = 2 kΩ 110 150 V/µs G = 2, VO = 1.5 V step, RL = 2 kΩ 95 130 V/µs Settling Time to 0.1% G = 2, VO = 1 V step 40 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion fC = 5 MHz, VO = 2 V p-p, RL = 1 kΩ –60 dBc fC = 20 MHz, VO = 2 V p-p, RL = 1 kΩ –44 dBc Crosstalk, Output to Output f = 5 MHz, G = 2 –90 dBc Input Voltage Noise f = 100 kHz 8.5 nV/√Hz Input Current Noise f = 100 kHz 1.2 pA/√Hz DC PERFORMANCE Input Offset Voltage 1 6 mV TMIN to TMAX 2 6 mV Input Offset Voltage Drift 3.5 µV/°C Input Bias Current 3.5 µA TMIN to TMAX 4 8.5 µA Input Offset Current ±0.3 ±4.5 µA Open-Loop Gain VO = 0.5 V to 2.2 V, RL = 150 Ω 63 70 dB VO = 0.5 V to 2.2 V, RL = 2 kΩ 74 90 dB INPUT CHARACTERISTICS Input Resistance 13 MΩ Input Capacitance 1 pF Input Common-Mode Voltage Range –0.2 to +0.9 V Common-Mode Rejection Ratio VCM = –0.2 V to +0.9 V 0.8 dB OUTPUT CHARACTERISTICS Output Voltage Swing Low RL = 150 Ω 0.3 0.1 V RL = 2 kΩ 0.25 0.1 V Output Voltage Swing High RL = 150 Ω 2.55 2.55 V RL = 2 kΩ 2.6 2.6 V Output Current VO = 0.5 V to 2.2 V 25 mA Capacitive Load Drive, VOUT = 0.8 V 30% overshoot: G = 1, RS = 0 Ω 25 pF G = 2, RS = 4.7 Ω 300 pF POWER-DOWN DISABLE Turn-On Time 40 ns Turn-Off Time 300 ns DISABLE Voltage (Off) 0.5 V DISABLE Voltage (On) 0.9 V POWER SUPPLY Operating Range 2.7 8 V Quiescent Current per Amplifier 6.8 8.5 mA Supply Current when Disabled (AD8063 Only) 0.4 mA Power Supply Rejection Ratio 80 dB Rev. J | Page 5 of 20 Document Outline Features Applications Connection Diagrams General Description Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Typical Performance Characteristics Circuit Description Headroom Considerations Overload Behavior and Recovery Input Output Capacitive Load Drive Disable Operation Board Layout Considerations Applications Information Single-Supply Sync Stripper RGB Amplifier Multiplexer Outline Dimensions Ordering Guide
