Datasheet FMMT3903, FMMT3904 (Diodes) - 2
| Manufacturer | Diodes |
| Description | SOT23 NPN SILICON PLANAR SWITCHING TRANSISTORS |
| Pages / Page | 2 / 2 — FMMT3903 FMMT3904. SWITCHING CHARACTERISTICS (at Tamb = 25°C unless … |
| File Format / Size | PDF / 47 Kb |
| Document Language | English |
FMMT3903 FMMT3904. SWITCHING CHARACTERISTICS (at Tamb = 25°C unless otherwise stated). Internet:http://www.zetex.com
Model Line for this Datasheet
Text Version of Document

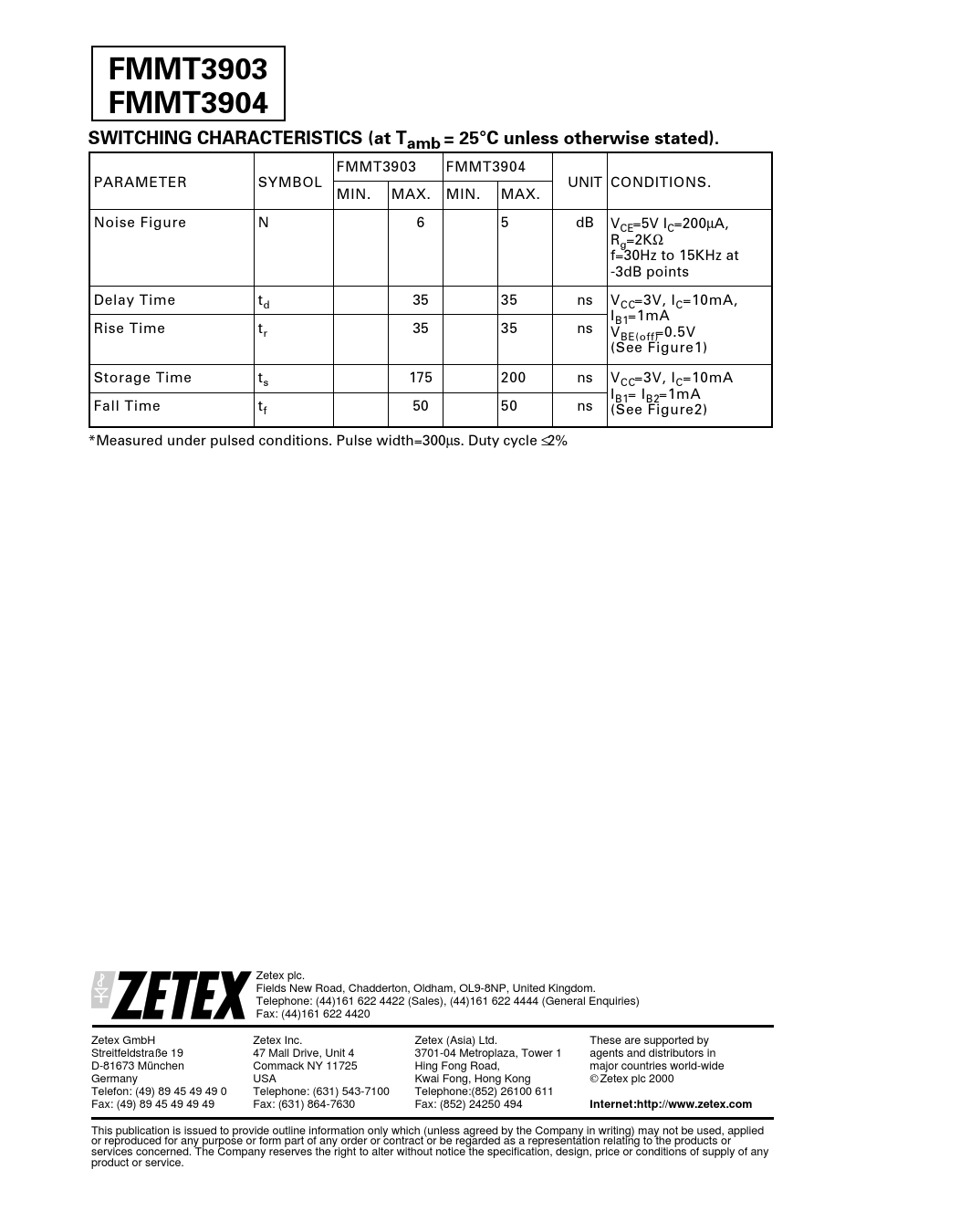

FMMT3903 FMMT3904 SWITCHING CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
FMMT3903 FMMT3904 PARAMETER SYMBOL UNIT CONDITIONS. MIN. MAX. MIN. MAX. Noise Figure N 6 5 dB VCE=5V IC=200µA, Rg=2KΩ f=30Hz to 15KHz at -3dB points Delay Time td 35 35 ns VCC=3V, IC=10mA, IB1=1mA Rise Time tr 35 35 ns VBE(off)=0.5V (See Figure1) Storage Time ts 175 200 ns VCC=3V, IC=10mA IB1= IB2=1mA Fall Time tf 50 50 ns (See Figure2) *Measured under pulsed conditions. Pulse width=300µs. Duty cycle ≤ 2% Zetex plc. Fields New Road, Chadderton, Oldham, OL9-8NP, United Kingdom. Telephone: (44)161 622 4422 (Sales), (44)161 622 4444 (General Enquiries) Fax: (44)161 622 4420 Zetex GmbH Zetex Inc. Zetex (Asia) Ltd. These are supported by Streitfeldstraße 19 47 Mall Drive, Unit 4 3701-04 Metroplaza, Tower 1 agents and distributors in D-81673 München Commack NY 11725 Hing Fong Road, major countries world-wide Germany USA Kwai Fong, Hong Kong Zetex plc 2000 Telefon: (49) 89 45 49 49 0 Telephone: (631) 543-7100 Telephone:(852) 26100 611 Fax: (49) 89 45 49 49 49 Fax: (631) 864-7630 Fax: (852) 24250 494
