LM4780,. LM4780TABD. www.ti.com. Electrical Characteristics(1)(2). (continued). LM4780. Units. Symbol. Parameter. Conditions. (Limits)
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6
LM4780, LM4780TABD
SNAS193B – JULY 2003 – REVISED APRIL 2013
www.ti.com Electrical Characteristics(1)(2) (continued)
The following specifications apply for V+ = +35V, V- = −35V, IMUTE = -1mA and RL = 8Ω unless otherwise specified. Limits apply for TA = 25°C.
LM4780 Units Symbol Parameter Conditions (Limits) Typical(3) Limit(4)(5)
60Hz, 7kHz, 4:1 (SMPTE) 0.004 % IMD Intermodulation Distortion 60Hz, 7kHz, 1:1 (SMPTE) 0.009 %

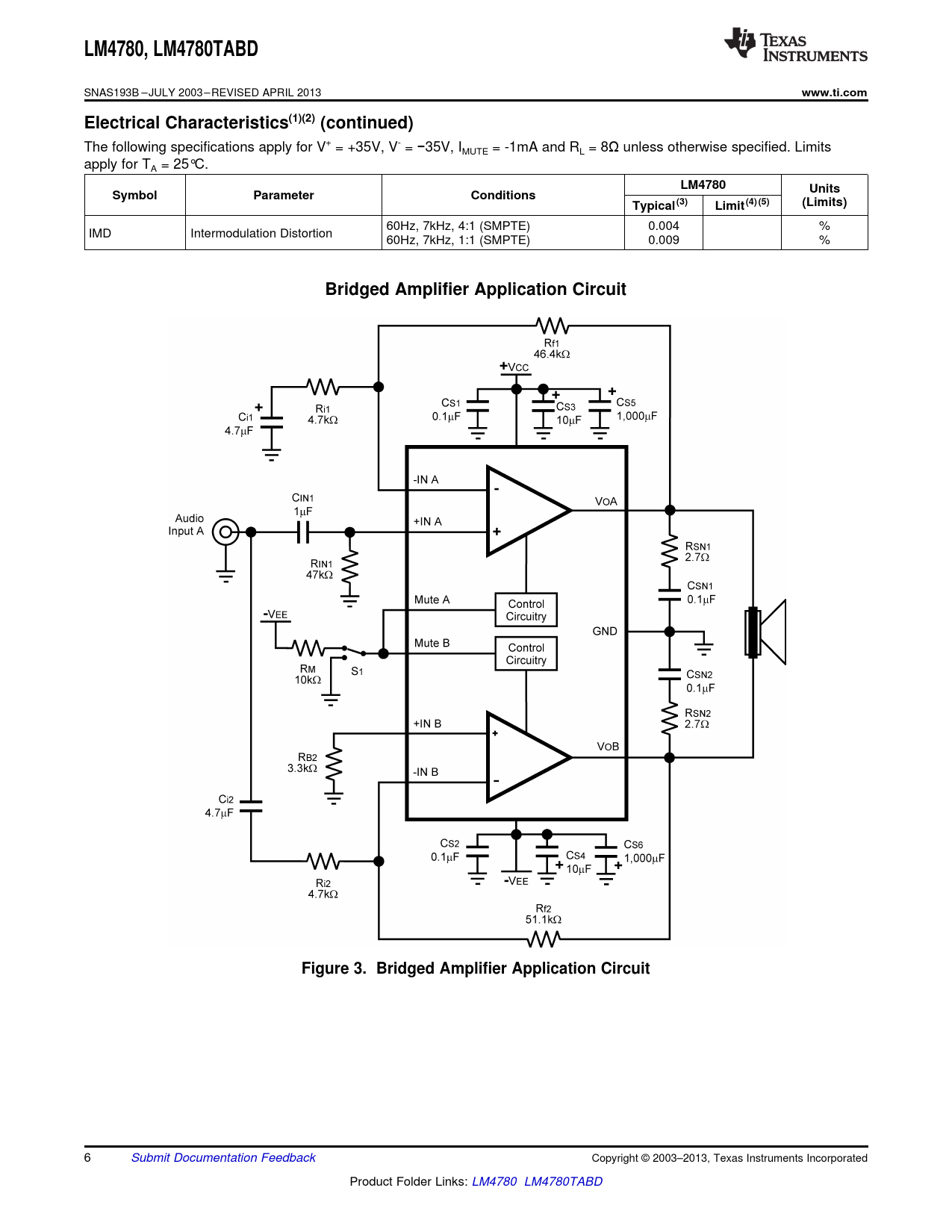

Bridged Amplifier Application Circuit Figure 3. Bridged Amplifier Application Circuit
