Datasheet CD54HC14, CD74HC14, CD54HCT14, CD74HCT14 (Texas Instruments) - 10
| Manufacturer | Texas Instruments |
| Description | High-Speed CMOS Logic Hex Inverting Schmitt Trigger |
| Pages / Page | 19 / 10 — PACKAGE MATERIALS INFORMATION. Device. Package Type. Package Drawing. … |
| Revision | F |
| File Format / Size | PDF / 813 Kb |
| Document Language | English |

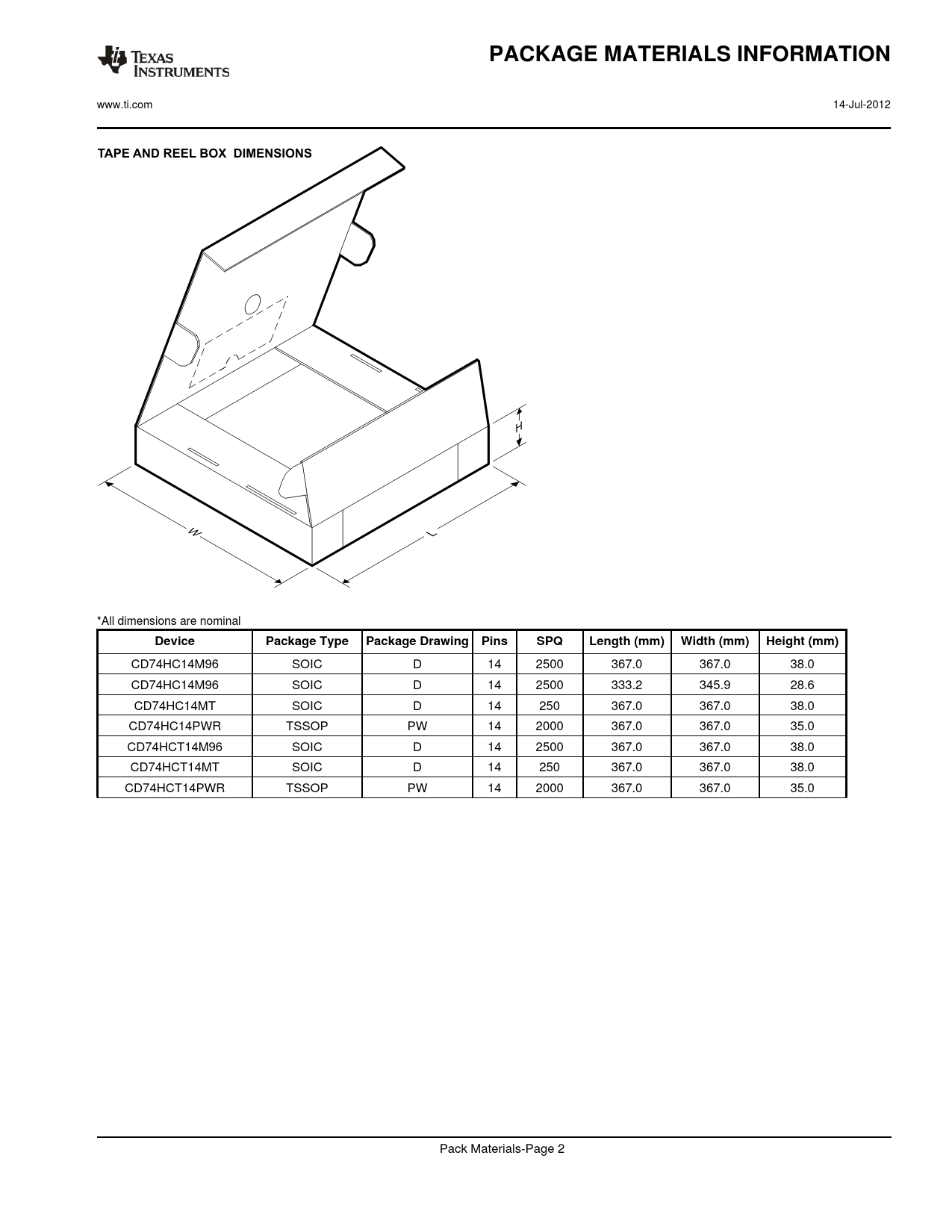

PACKAGE MATERIALS INFORMATION. Device. Package Type. Package Drawing. Pins. SPQ. Length (mm). Width (mm). Height (mm)
Text Version of Document
PACKAGE MATERIALS INFORMATION
www.ti.com 14-Jul-2012 *All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
CD74HC14M96 SOIC D 14 2500 367.0 367.0 38.0 CD74HC14M96 SOIC D 14 2500 333.2 345.9 28.6 CD74HC14MT SOIC D 14 250 367.0 367.0 38.0 CD74HC14PWR TSSOP PW 14 2000 367.0 367.0 35.0 CD74HCT14M96 SOIC D 14 2500 367.0 367.0 38.0 CD74HCT14MT SOIC D 14 250 367.0 367.0 38.0 CD74HCT14PWR TSSOP PW 14 2000 367.0 367.0 35.0 Pack Materials-Page 2
www.ti.com 14-Jul-2012 *All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
CD74HC14M96 SOIC D 14 2500 367.0 367.0 38.0 CD74HC14M96 SOIC D 14 2500 333.2 345.9 28.6 CD74HC14MT SOIC D 14 250 367.0 367.0 38.0 CD74HC14PWR TSSOP PW 14 2000 367.0 367.0 35.0 CD74HCT14M96 SOIC D 14 2500 367.0 367.0 38.0 CD74HCT14MT SOIC D 14 250 367.0 367.0 38.0 CD74HCT14PWR TSSOP PW 14 2000 367.0 367.0 35.0 Pack Materials-Page 2
