Datasheet LM146, LM346 (Texas Instruments) - 4
| Manufacturer | Texas Instruments |
| Description | Programmable Quad Low Power Op Amps |
| Pages / Page | 24 / 4 — LM146,. LM346. www.ti.com. DC ELECTRICAL CHARACTERISTICS. Parameter. … |
| Revision | B |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |

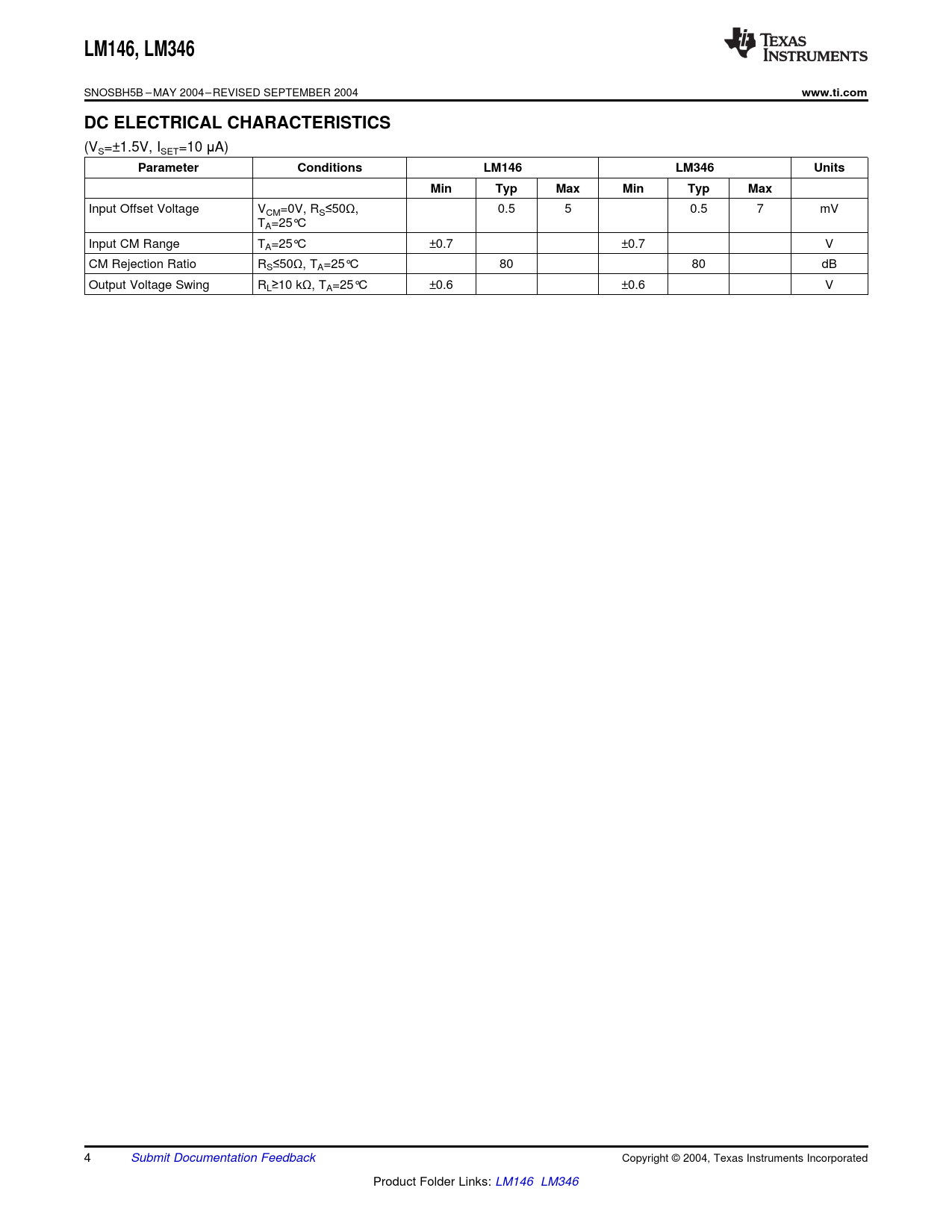

LM146,. LM346. www.ti.com. DC ELECTRICAL CHARACTERISTICS. Parameter. Conditions. LM146. Units. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
LM146, LM346
SNOSBH5B – MAY 2004 – REVISED SEPTEMBER 2004
www.ti.com DC ELECTRICAL CHARACTERISTICS
(VS=±1.5V, ISET=10 μA)
Parameter Conditions LM146 LM346 Units Min Typ Max Min Typ Max
Input Offset Voltage VCM=0V, RS≤50Ω, 0.5 5 0.5 7 mV TA=25°C Input CM Range TA=25°C ±0.7 ±0.7 V CM Rejection Ratio RS≤50Ω, TA=25°C 80 80 dB Output Voltage Swing RL≥10 kΩ, TA=25°C ±0.6 ±0.6 V 4 Submit Documentation Feedback Copyright © 2004, Texas Instruments Incorporated Product Folder Links: LM146 LM346 Document Outline FEATURES DESCRIPTION Connection Diagram Capacitorless Active Filters (Basic Circuit) ABSOLUTE MAXIMUM RATINGS DC ELECTRICAL CHARACTERISTICS DC ELECTRICAL CHARACTERISTIC DC ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION HINTS COMMON-MODE INPUT VOLTAGE OUTPUT VOLTAGE SWING VS ISET INPUT CAPACITANCE TEMPERATURE EFFECT ON THE GBW ISOLATION BETWEEN AMPLIFIERS LM146 TYPICAL PERFORMANCE SUMMARY SPEED VS POWER CONSUMPTION Typical Applications Active Filters Applications Circuit Synthesis Equations Circuit Synthesis Equations Miscellaneous Applications Schematic Diagram
