Datasheet LM146, LM346 (Texas Instruments) - 6
| Manufacturer | Texas Instruments |
| Description | Programmable Quad Low Power Op Amps |
| Pages / Page | 24 / 6 — LM146,. LM346. www.ti.com. TYPICAL PERFORMANCE CHARACTERISTICS … |
| Revision | B |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
LM146,. LM346. www.ti.com. TYPICAL PERFORMANCE CHARACTERISTICS (continued) Input Offset Voltage. Common-Mode Rejection. vs ISET
Model Line for this Datasheet
Text Version of Document
LM146, LM346
SNOSBH5B – MAY 2004 – REVISED SEPTEMBER 2004

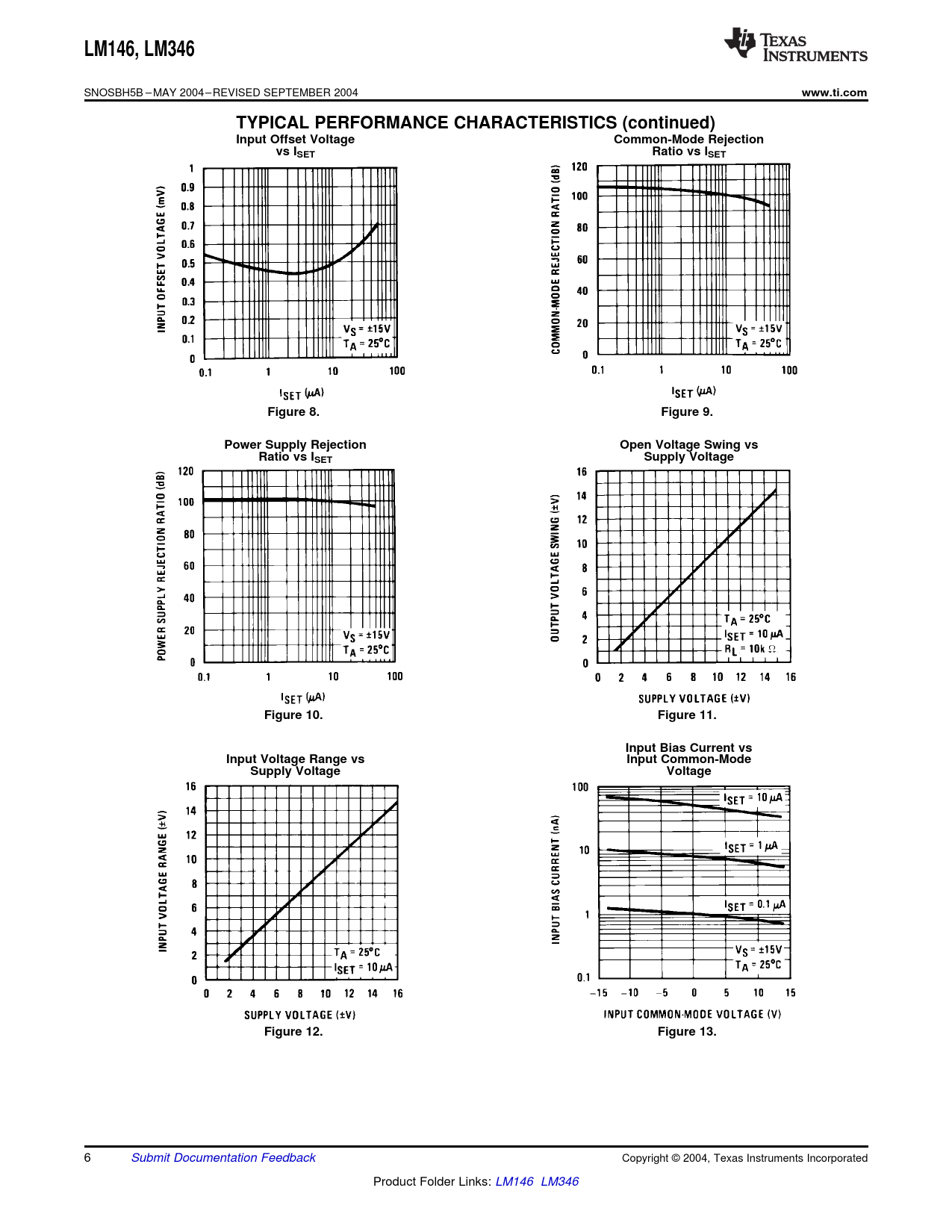

www.ti.com TYPICAL PERFORMANCE CHARACTERISTICS (continued) Input Offset Voltage Common-Mode Rejection vs ISET Ratio vs ISET Figure 8. Figure 9. Power Supply Rejection Open Voltage Swing vs Ratio vs ISET Supply Voltage Figure 10. Figure 11. Input Bias Current vs Input Voltage Range vs Input Common-Mode Supply Voltage Voltage Figure 12. Figure 13.
