Datasheet OPA2544 (Texas Instruments) - 3
| Manufacturer | Texas Instruments |
| Description | High-Voltage, High-Current Dual Operational Amplifier |
| Pages / Page | 10 / 3 — CONNECTION DIAGRAM. ABSOLUTE MAXIMUM RATINGS(1). Front View. 11-Lead … |
| File Format / Size | PDF / 112 Kb |
| Document Language | English |

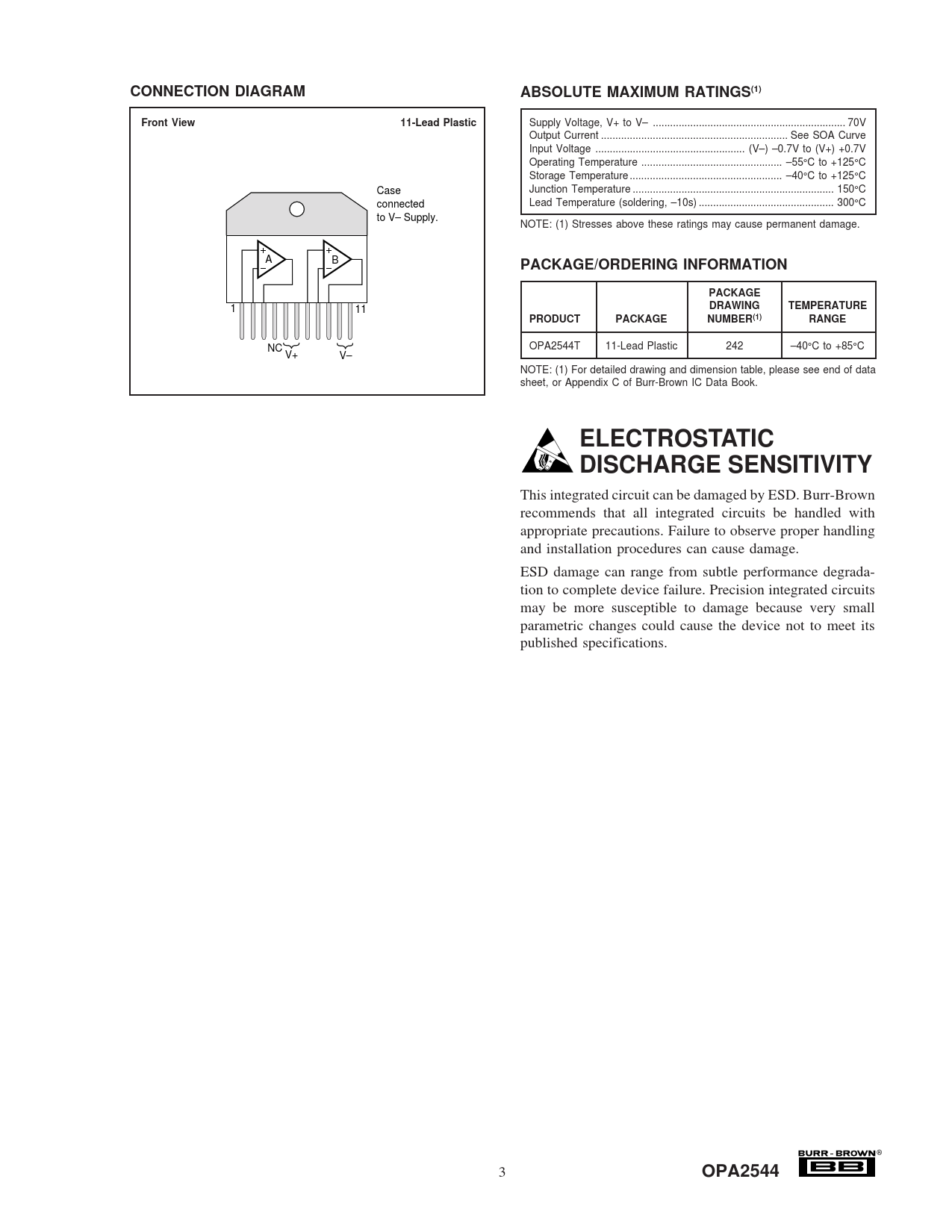

CONNECTION DIAGRAM. ABSOLUTE MAXIMUM RATINGS(1). Front View. 11-Lead Plastic. PACKAGE/ORDERING INFORMATION. PACKAGE DRAWING
Text Version of Document
CONNECTION DIAGRAM ABSOLUTE MAXIMUM RATINGS(1) Front View 11-Lead Plastic
Supply Voltage, V+ to V– ... 70V Output Current ... See SOA Curve Input Voltage .. (V–) –0.7V to (V+) +0.7V Operating Temperature ... –55°C to +125°C Storage Temperature ... –40°C to +125°C Case Junction Temperature .. 150°C connected Lead Temperature (soldering, –10s) ... 300°C to V– Supply. NOTE: (1) Stresses above these ratings may cause permanent damage. A B
PACKAGE/ORDERING INFORMATION PACKAGE DRAWING TEMPERATURE
1 11
PRODUCT PACKAGE NUMBER(1) RANGE
OPA2544T 11-Lead Plastic 242 –40 NC °C to +85°C V+ V– NOTE: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book.
ELECTROSTATIC DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degrada- tion to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. ® 3
OPA2544
Supply Voltage, V+ to V– ... 70V Output Current ... See SOA Curve Input Voltage .. (V–) –0.7V to (V+) +0.7V Operating Temperature ... –55°C to +125°C Storage Temperature ... –40°C to +125°C Case Junction Temperature .. 150°C connected Lead Temperature (soldering, –10s) ... 300°C to V– Supply. NOTE: (1) Stresses above these ratings may cause permanent damage. A B
PACKAGE/ORDERING INFORMATION PACKAGE DRAWING TEMPERATURE
1 11
PRODUCT PACKAGE NUMBER(1) RANGE
OPA2544T 11-Lead Plastic 242 –40 NC °C to +85°C V+ V– NOTE: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book.
ELECTROSTATIC DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degrada- tion to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. ® 3
OPA2544
