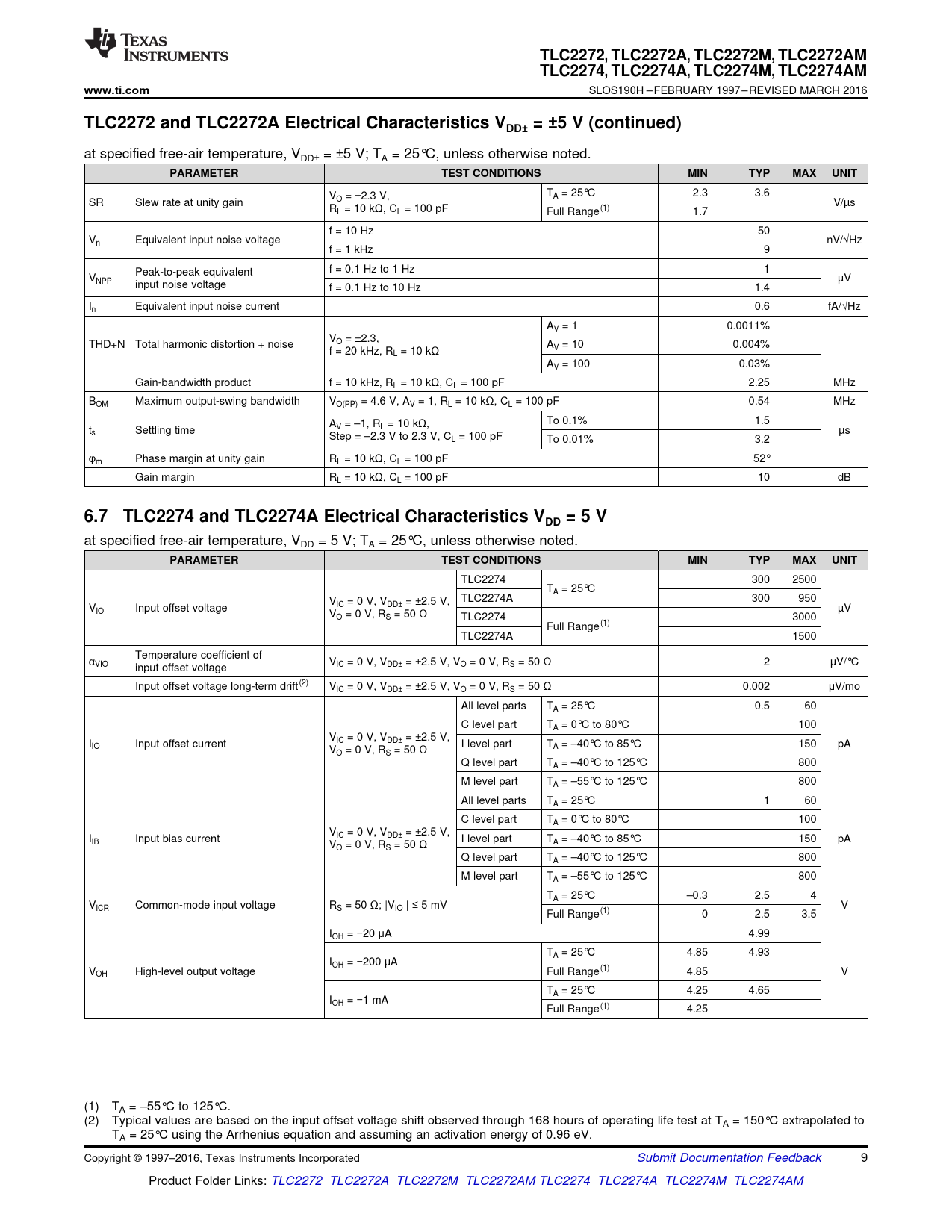

SLOS190H – FEBRUARY 1997 – REVISED MARCH 2016
TLC2272 and TLC2272A Electrical Characteristics VDD± = ±5 V (continued)
at specified free-air temperature, VDD± = ±5 V; TA = 25°C, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
V TA = 25°C 2.3 3.6 SR Slew rate at unity gain O = ±2.3 V, V/µs RL = 10 kΩ, CL = 100 pF Full Range(1) 1.7 f = 10 Hz 50 Vn Equivalent input noise voltage nV/√Hz f = 1 kHz 9 Peak-to-peak equivalent f = 0.1 Hz to 1 Hz 1 VNPP µV input noise voltage f = 0.1 Hz to 10 Hz 1.4 In Equivalent input noise current 0.6 fA/√Hz AV = 1 0.0011% V THD+N Total harmonic distortion + noise O = ±2.3, A f = 20 kHz, R V = 10 0.004% L = 10 kΩ AV = 100 0.03% Gain-bandwidth product f = 10 kHz, RL = 10 kΩ, CL = 100 pF 2.25 MHz BOM Maximum output-swing bandwidth VO(PP) = 4.6 V, AV = 1, RL = 10 kΩ, CL = 100 pF 0.54 MHz A To 0.1% 1.5 t V = –1, RL = 10 kΩ, s Settling time µs Step = –2.3 V to 2.3 V, CL = 100 pF To 0.01% 3.2 φm Phase margin at unity gain RL = 10 kΩ, CL = 100 pF 52° Gain margin RL = 10 kΩ, CL = 100 pF 10 dB
6.7 TLC2274 and TLC2274A Electrical Characteristics VDD = 5 V
at specified free-air temperature, VDD = 5 V; TA = 25°C, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
TLC2274 300 2500 TA = 25°C V TLC2274A 300 950 V IC = 0 V, VDD± = ±2.5 V, IO Input offset voltage µV VO = 0 V, RS = 50 Ω TLC2274 3000 Full Range(1) TLC2274A 1500 Temperature coefficient of αVIO V input offset voltage IC = 0 V, VDD± = ±2.5 V, VO = 0 V, RS = 50 Ω 2 μV/°C Input offset voltage long-term drift(2) VIC = 0 V, VDD± = ±2.5 V, VO = 0 V, RS = 50 Ω 0.002 μV/mo All level parts TA = 25°C 0.5 60 C level part TA = 0°C to 80°C 100 V I IC = 0 V, VDD± = ±2.5 V, IO Input offset current I level part T pA V A = –40°C to 85°C 150 O = 0 V, RS = 50 Ω Q level part TA = –40°C to 125°C 800 M level part TA = –55°C to 125°C 800 All level parts TA = 25°C 1 60 C level part TA = 0°C to 80°C 100 V I IC = 0 V, VDD± = ±2.5 V, IB Input bias current I level part T pA V A = –40°C to 85°C 150 O = 0 V, RS = 50 Ω Q level part TA = –40°C to 125°C 800 M level part TA = –55°C to 125°C 800 TA = 25°C –0.3 2.5 4 VICR Common-mode input voltage RS = 50 Ω; |VIO | ≤ 5 mV V Full Range(1) 0 2.5 3.5 IOH = −20 μA 4.99 TA = 25°C 4.85 4.93 IOH = −200 μA VOH High-level output voltage Full Range(1) 4.85 V TA = 25°C 4.25 4.65 IOH = −1 mA Full Range(1) 4.25 (1) TA = –55°C to 125°C. (2) Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150°C extrapolated to TA = 25°C using the Arrhenius equation and assuming an activation energy of 0.96 eV. Copyright © 1997–2016, Texas Instruments Incorporated Submit Documentation Feedback 9 Product Folder Links: TLC2272 TLC2272A TLC2272M TLC2272AM TLC2274 TLC2274A TLC2274M TLC2274AM Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 TLC2272 and TLC2272A Electrical Characteristics VDD = 5 V 6.6 TLC2272 and TLC2272A Electrical Characteristics VDD± = ±5 V 6.7 TLC2274 and TLC2274A Electrical Characteristics VDD = 5 V 6.8 TLC2274 and TLC2274A Electrical Characteristics VDD± = ±5 V 6.9 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.1.1 Macromodel Information 8.2 Typical Application 8.2.1 High-Side Current Monitor 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curves 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Related Links 11.2 Community Resources 11.3 Trademarks 11.4 Electrostatic Discharge Caution 11.5 Glossary 12 Mechanical, Packaging, and Orderable Information
