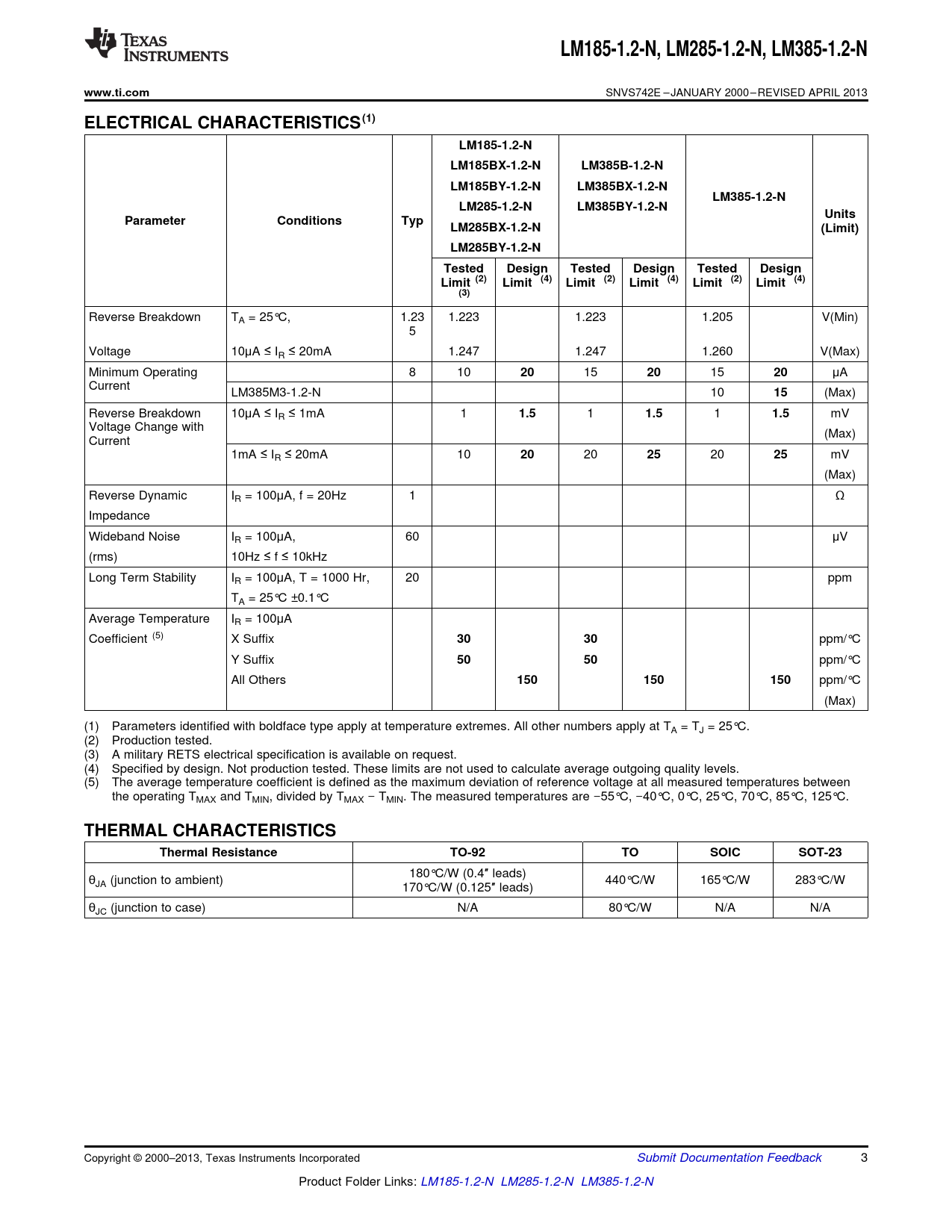

LM185-1.2-N. , LM285-1.2-N,. LM385-1.2-N. www.ti.com. ELECTRICAL CHARACTERISTICS(1). LM185BX-1.2-N. LM385B-1.2-N. LM185BY-1.2-N
Model Line for this Datasheet
Text Version of Document
LM185-1.2-N , LM285-1.2-N, LM385-1.2-N www.ti.com
SNVS742E – JANUARY 2000 – REVISED APRIL 2013
ELECTRICAL CHARACTERISTICS(1) LM185-1.2-N LM185BX-1.2-N LM385B-1.2-N LM185BY-1.2-N LM385BX-1.2-N LM385-1.2-N LM285-1.2-N LM385BY-1.2-N Units Parameter Conditions Typ LM285BX-1.2-N (Limit) LM285BY-1.2-N Tested Design Tested Design Tested Design Limit (2) Limit (4) Limit (2) Limit (4) Limit (2) Limit (4) (3)
Reverse Breakdown TA = 25°C, 1.23 1.223 1.223 1.205 V(Min) 5 Voltage 10μA ≤ IR ≤ 20mA 1.247 1.247 1.260 V(Max) Minimum Operating 8 10
20
15
20
15
20
μA Current LM385M3-1.2-N 10
15
(Max) Reverse Breakdown 10μA ≤ IR ≤ 1mA 1
1.5
1
1.5
1
1.5
mV Voltage Change with (Max) Current 1mA ≤ IR ≤ 20mA 10
20
20
25
20
25
mV (Max) Reverse Dynamic IR = 100μA, f = 20Hz 1 Ω Impedance Wideband Noise IR = 100μA, 60 μV (rms) 10Hz ≤ f ≤ 10kHz Long Term Stability IR = 100μA, T = 1000 Hr, 20 ppm TA = 25°C ±0.1°C Average Temperature IR = 100μA Coefficient (5) X Suffix
30 30
ppm/°C Y Suffix
50 50
ppm/°C All Others
150 150 150
ppm/°C (Max) (1) Parameters identified with boldface type apply at temperature extremes. All other numbers apply at TA = TJ = 25°C. (2) Production tested. (3) A military RETS electrical specification is available on request. (4) Specified by design. Not production tested. These limits are not used to calculate average outgoing quality levels. (5) The average temperature coefficient is defined as the maximum deviation of reference voltage at all measured temperatures between the operating TMAX and TMIN, divided by TMAX − TMIN. The measured temperatures are −55°C, −40°C, 0°C, 25°C, 70°C, 85°C, 125°C.
THERMAL CHARACTERISTICS Thermal Resistance TO-92 TO SOIC SOT-23
180°C/W (0.4″ leads) θJA (junction to ambient) 440°C/W 165°C/W 283°C/W 170°C/W (0.125″ leads) θJC (junction to case) N/A 80°C/W N/A N/A Copyright © 2000–2013, Texas Instruments Incorporated Submit Documentation Feedback 3 Product Folder Links: LM185-1.2-N LM285-1.2-N LM385-1.2-N Document Outline FEATURES DESCRIPTION CONNECTION DIAGRAM ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS THERMAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS TYPICAL APPLICATIONS METER THERMOMETERS SCHEMATIC DIAGRAM Revision History
