LM556. www.ti.com. 6.6 Typical Characteristics. Figure 1. Minimum Pulse Width Required for Triggering
Model Line for this Datasheet
Text Version of Document
LM556
SNAS549A – MARCH 2000 – REVISED OCTOBER 2015
www.ti.com 6.6 Typical Characteristics
DS007852-4

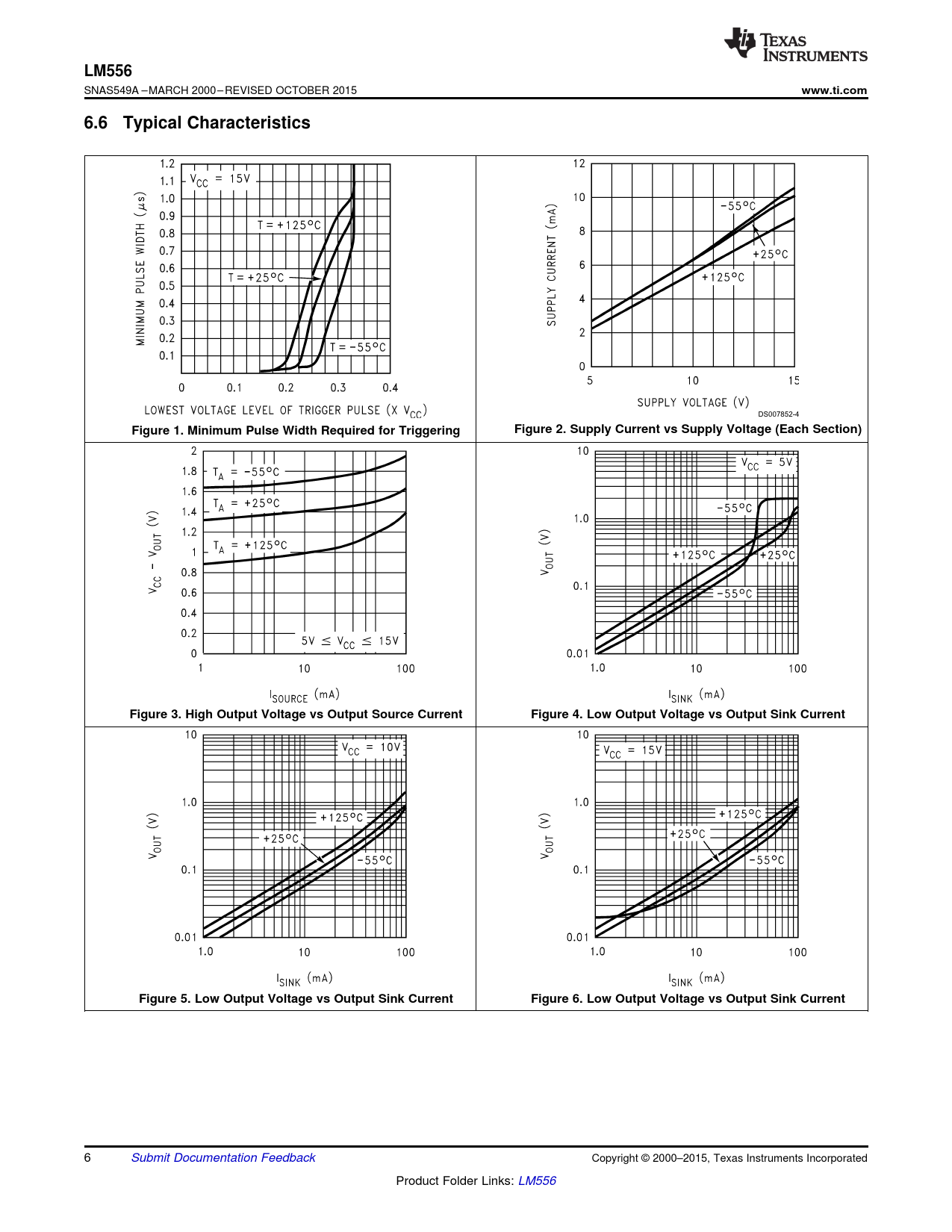

Figure 1. Minimum Pulse Width Required for Triggering Figure 2. Supply Current vs Supply Voltage (Each Section) Figure 3. High Output Voltage vs Output Source Current Figure 4. Low Output Voltage vs Output Sink Current Figure 5. Low Output Voltage vs Output Sink Current Figure 6. Low Output Voltage vs Output Sink Current
