LT3080

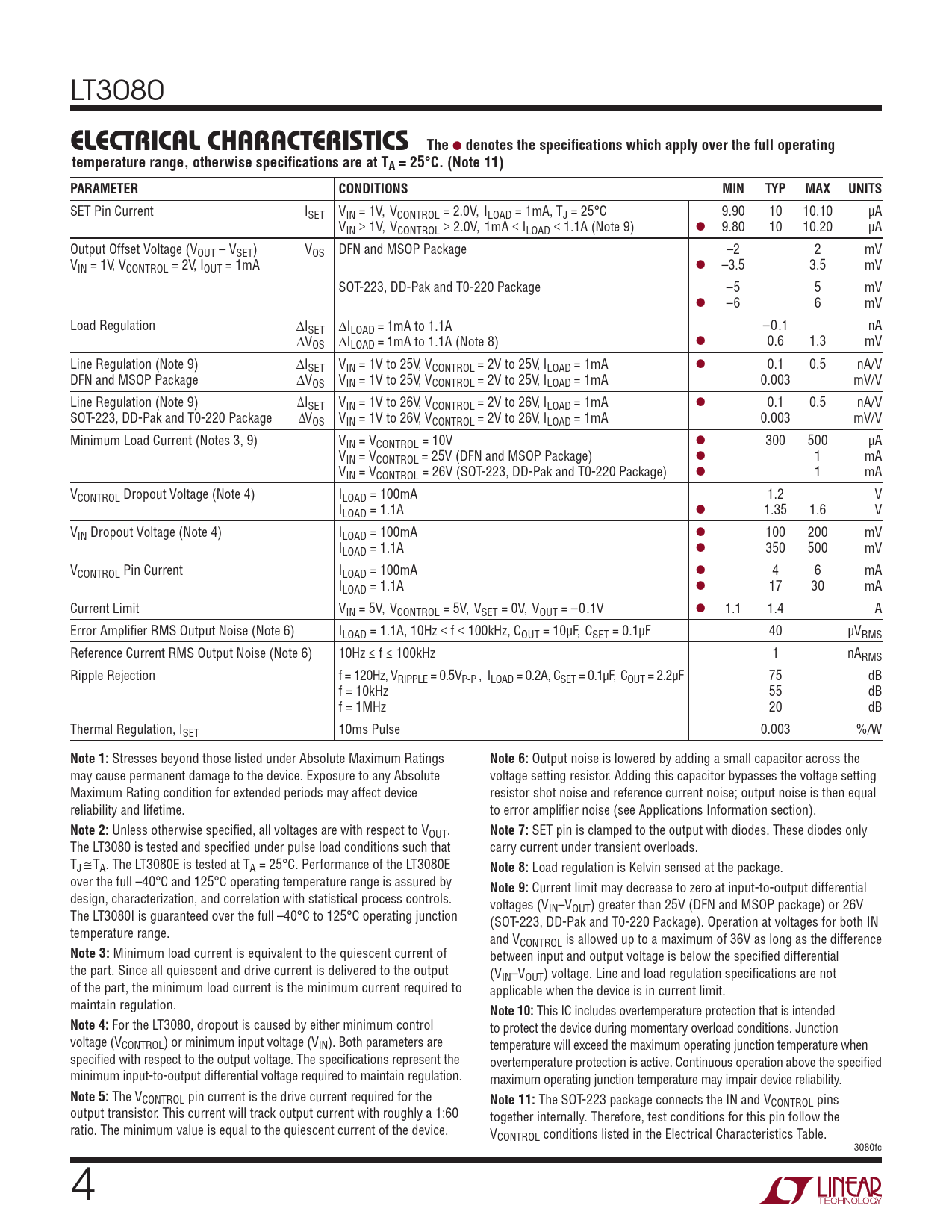

elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 11) PARAMETER CONDITIONS MIN TYP MAX UNITS
SET Pin Current ISET VIN = 1V, VCONTROL = 2.0V, ILOAD = 1mA, TJ = 25°C 9.90 10 10.10 µA VIN ≥ 1V, VCONTROL ≥ 2.0V, 1mA ≤ ILOAD ≤ 1.1A (Note 9) l 9.80 10 10.20 µA Output Offset Voltage (VOUT – VSET) VOS DFN and MSOP Package –2 2 mV VIN = 1V, VCONTROL = 2V, IOUT = 1mA l –3.5 3.5 mV SOT-223, DD-Pak and T0-220 Package –5 5 mV l –6 6 mV Load Regulation ΔISET ΔILOAD = 1mA to 1.1A –0.1 nA ΔVOS ΔILOAD = 1mA to 1.1A (Note 8) l 0.6 1.3 mV Line Regulation (Note 9) ΔISET VIN = 1V to 25V, VCONTROL = 2V to 25V, ILOAD = 1mA l 0.1 0.5 nA/V DFN and MSOP Package ΔVOS VIN = 1V to 25V, VCONTROL = 2V to 25V, ILOAD = 1mA 0.003 mV/V Line Regulation (Note 9) ΔISET VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA l 0.1 0.5 nA/V SOT-223, DD-Pak and T0-220 Package ΔVOS VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA 0.003 mV/V Minimum Load Current (Notes 3, 9) VIN = VCONTROL = 10V l 300 500 µA VIN = VCONTROL = 25V (DFN and MSOP Package) l 1 mA VIN = VCONTROL = 26V (SOT-223, DD-Pak and T0-220 Package) l 1 mA VCONTROL Dropout Voltage (Note 4) ILOAD = 100mA 1.2 V ILOAD = 1.1A l 1.35 1.6 V VIN Dropout Voltage (Note 4) ILOAD = 100mA l 100 200 mV ILOAD = 1.1A l 350 500 mV VCONTROL Pin Current ILOAD = 100mA l 4 6 mA ILOAD = 1.1A l 17 30 mA Current Limit VIN = 5V, VCONTROL = 5V, VSET = 0V, VOUT = –0.1V l 1.1 1.4 A Error Amplifier RMS Output Noise (Note 6) ILOAD = 1.1A, 10Hz ≤ f ≤ 100kHz, COUT = 10µF, CSET = 0.1µF 40 µVRMS Reference Current RMS Output Noise (Note 6) 10Hz ≤ f ≤ 100kHz 1 nARMS Ripple Rejection f = 120Hz, VRIPPLE = 0.5VP-P , ILOAD = 0.2A, CSET = 0.1µF, COUT = 2.2µF 75 dB f = 10kHz 55 dB f = 1MHz 20 dB Thermal Regulation, ISET 10ms Pulse 0.003 %/W
