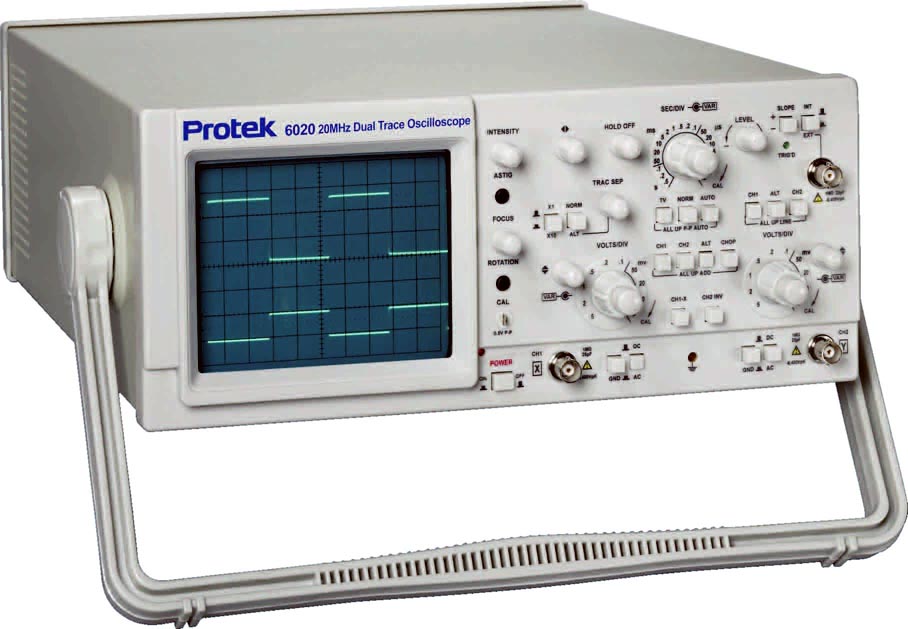

Oscilloscope Protek 6020

Vertical Amplifier
(CH 1 and CH 2)

Sensitivity

5mV/Div to 5V/Div in 10 steps (1-2-5 seq)

Accuracy

±3%

Bandwidth (–3dB)

DC: 0Hz to 20MHz, AC: 10Hz to 20MHz

Rise Time

< 17.5ns

Input Impedance

Res: 1MW ±5%
Cap: 25pF ±5pF

Input Coupling

AC, DC, GND

Invert Channel

CH2

Display Modes

CH1, CH2, ALT, Chop, ADD, X-Y

Maximum Input Voltage

400V (DC or AC p-p)

Horizonta
 Sweep

Sweep Time

200ns/Div to 0.5s/Div in 20 steps (1-2-5 seq)
(×10 Mag: 20ns/Div to 50ms/Div)

Mag

×10

Accuracy

±3% (8% ×10 Mag)

Sweep Modes

TV, Normal, Auto and p-p Auto

Triggering

Source

CH 1, CH 2, ALT, Line and EXT

Slope

Positive or Negative adjustable levels

Coupling

AC

Sensitivity (Int)

DC to 10MHz (1 Div)
DC to 20MHz (1.5 Div)

Sensitivity (Ext)

DC to 10MHz (0.3 p-p)
DC to 20MHz (0.5 p-p)

TV Synch (Int)

2 Div

TV Synch (Ext)

0.5V p-p

Auto Triggering

> 20Hz

External Trigger Input

Impedance: 1MW ±5% + 20pF Capacitance
Maximum Input Voltage: 160V (DC or AC peak)

Z Axis Modulation

Sensitivity

5V p-p

Maximum Input Voltage

50V or AC p-p

Polarity

Intensity increases as the voltage increases

Input Resistance

10KW

Bandwidth (–3dB)

DC to 1MHz

X-Y Mode

Inputs

X-Axis (CH1), Y-Axis (CH2)

Sensitivity

Same as CH1

Accuracy

±5%

Frequency
Response (–3dB)

DC: 0Hz to 1MHz
AC: 10Hz to 1MHz

Maximum Voltage

Same as CH1

X-Y Phase Difference

< 3° from DC to 50KHz

Calibrator Signal

Waveform

Square Wave

Amplitude

0.5V ±3% p-p

Frequency

1KHz ±2%

CRT

Size

8cm x 10cm (3.15" x 3.94")

Acceleration Voltage

2KV

General Specifications

Power Requirements

AC Input Voltage: 120V AC

Frequency

50/60Hz

Power Consumption

40W

Operating Temperature

0 to 40°C (32 to 104°F)

Size

5.1" (H) × 12.5" (W) x 15.75" (D)

Weight

16 lbs

Accessories

Manual, Line cord, ×1/ ×10 Probes (2)
