Development module FTDI V2DIP2-32
VNC2 based development modules with two USB connectors.
Detailed Description
The modules are targeted for prototyping with the VNC2 and for application integration to enable USB capability within a finished product design.

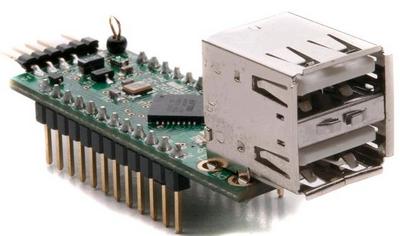

V2DIP2-32 module is designed to allow rapid development of designs using the VNC2-32Q IC. The V2DIP2-32 is supplied as a PCB designed to fit into a 24 pin 0.6” wide / 0.1” pitch DIP socket. The module provides access to the UART, parallel FIFO and SPI interface pins of the VNC2-32Q device via its IO bus pins. The USB port is accessed via a type A USB connector.
Features:
- Compact modules designed to fit 0.1” pitch DIP sockets.
- Each module features an onboard VNC2 USB Host / Slave controller device. Three versions available supporting different VNC2 package types. V2DIP2-32 – 32pin VNC2 based module.
- Each module has a two USB type-A connectors for USB Host / Slave interfacing with VNC2 device.
- I/O header pins on each module provide access to UART, FIFO, GPIO, SPI and PWM interfaces on VNC2.
- Debug header available for VNC2 debug module to enable firmware configuration and debug via Vinculum II software development tools.
- Power and traffic indication LEDs.
- Powered from 5V supply via DIL header pins. Can also be powered from USB connector when VNC2 is in USB slave mode.
- Pb-free RoHS compliant.
The VNC2 is the second of FTDI’s Vinculum family of Embedded dual USB host controller devices. The VNC2 device provides USB Host interfacing capability for a variety of different USB device classes including support for BOMS (bulk only mass storage), Printer, HID (human interface devices). For mass storage devices such as USB Flash drives, VNC2 also transparently handles the FAT file structure. Communication with non USB devices such as a low cost microcontroller is accomplished via either UART, SPI or parallel FIFO interfaces.
The VNC2 provides a new cost effective solution for providing USB Host capability into products that previously did not have the hardware resources available. The VNC2 supports the capability to enable customers to develop custom firmware using the Vinculum II development software tool suite. The development tools support compiler, linker and debugger tools
complete within an integrated development environment (IDE).
Other Names:
V2DIP232, V2DIP2 32
