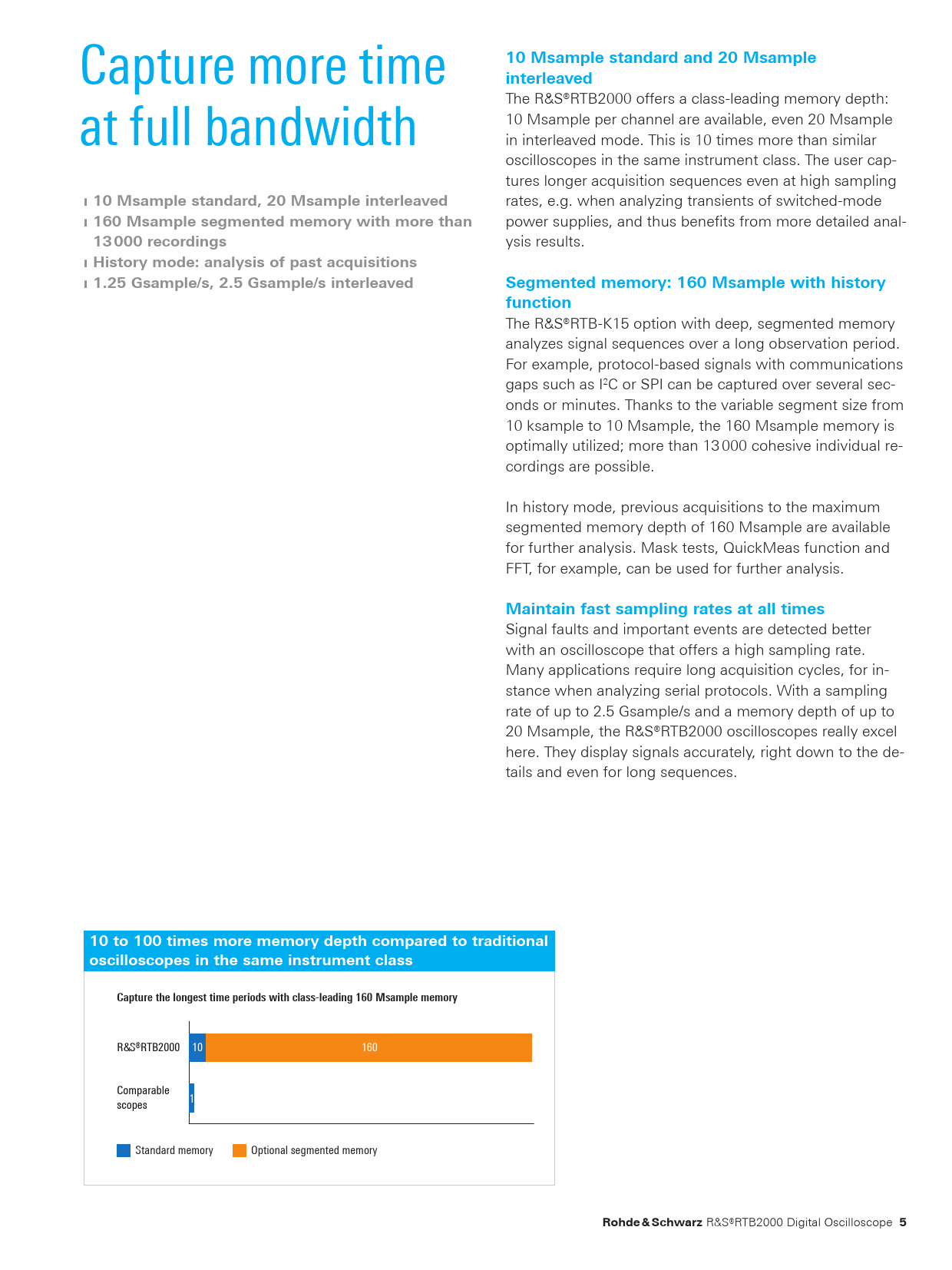

Capture more time
10 Msample standard and 20 Msample interleaved
at full bandwidth The R&S®RTB2000 offers a class-leading memory depth: 10 Msample per channel are available, even 20 Msample in interleaved mode. This is 10 times more than similar oscilloscopes in the same instrument class. The user cap- tures longer acquisition sequences even at high sampling ❙
10 Msample standard, 20 Msample interleaved
rates, e.g. when analyzing transients of switched-mode ❙
160 Msample segmented memory with more than
power supplies, and thus benefits from more detailed anal-
13 000 recordings
ysis results. ❙
History mode: analysis of past acquisitions
❙
1.25 Gsample/s, 2.5 Gsample/s interleaved Segmented memory: 160 Msample with history function
The R&S®RTB-K15 option with deep, segmented memory analyzes signal sequences over a long observation period. For example, protocol-based signals with communications gaps such as I2C or SPI can be captured over several sec- onds or minutes. Thanks to the variable segment size from 10 ksample to 10 Msample, the 160 Msample memory is optimally utilized; more than 13 000 cohesive individual re- cordings are possible. In history mode, previous acquisitions to the maximum segmented memory depth of 160 Msample are available for further analysis. Mask tests, QuickMeas function and FFT, for example, can be used for further analysis.
Maintain fast sampling rates at all times
Signal faults and important events are detected better with an oscilloscope that offers a high sampling rate. Many applications require long acquisition cycles, for in- stance when analyzing serial protocols. With a sampling rate of up to 2.5 Gsample/s and a memory depth of up to 20 Msample, the R&S®RTB2000 oscilloscopes really excel here. They display signals accurately, right down to the de- tails and even for long sequences.
10 to 100 times more memory depth compared to traditional oscilloscopes in the same instrument class Capture the longest time periods with class-leading 160 Msample memory
¸RTB2000 10 160 Comparable scopes 1 Standard memory Optional segmented memory
