Version 19.00, March 2018. R&S®RT-ZH03 high voltage passive probe. R&S®RT-ZH03. Step response. Frequency response
Text Version of Document
link to page 4 link to page 7

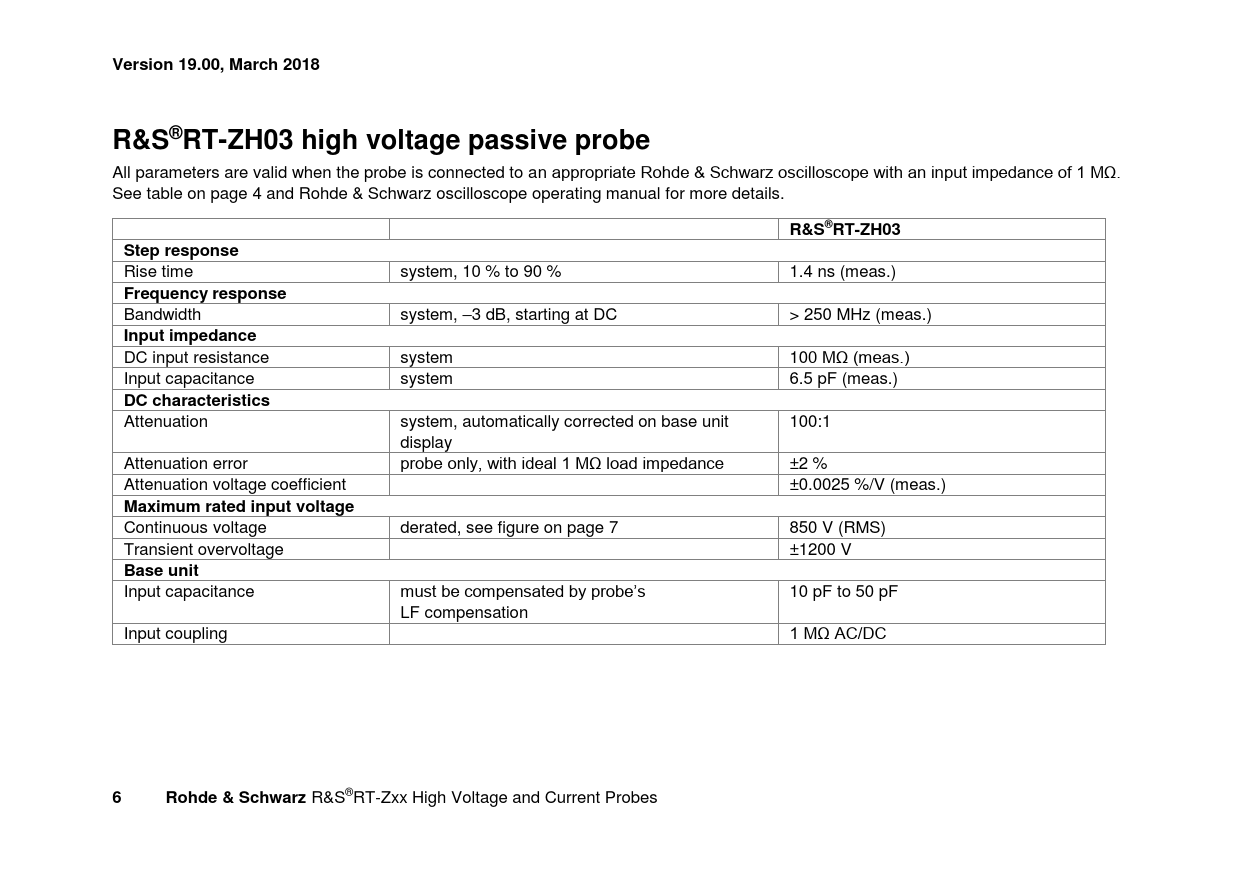

Version 19.00, March 2018 R&S®RT-ZH03 high voltage passive probe
All parameters are valid when the probe is connected to an appropriate Rohde & Schwarz oscilloscope with an input impedance of 1 MΩ. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZH03 Step response
Rise time system, 10 % to 90 % 1.4 ns (meas.)
Frequency response
Bandwidth system, –3 dB, starting at DC > 250 MHz (meas.)
Input impedance
DC input resistance system 100 MΩ (meas.) Input capacitance system 6.5 pF (meas.)
DC characteristics
Attenuation system, automatically corrected on base unit 100:1 display Attenuation error probe only, with ideal 1 MΩ load impedance ±2 % Attenuation voltage coefficient ±0.0025 %/V (meas.)
Maximum rated input voltage
Continuous voltage derated, see figure on page 7 850 V (RMS) Transient overvoltage ±1200 V
Base unit
Input capacitance must be compensated by probe’s 10 pF to 50 pF LF compensation Input coupling 1 MΩ AC/DC
6 Rohde & Schwarz
