Version 19.00, March 2018. R&S®RT-ZH10/-ZH11 high voltage passive probes. R&S®RT-ZH10. R&S®RT-ZH11. Step response
Text Version of Document
link to page 4 link to page 10

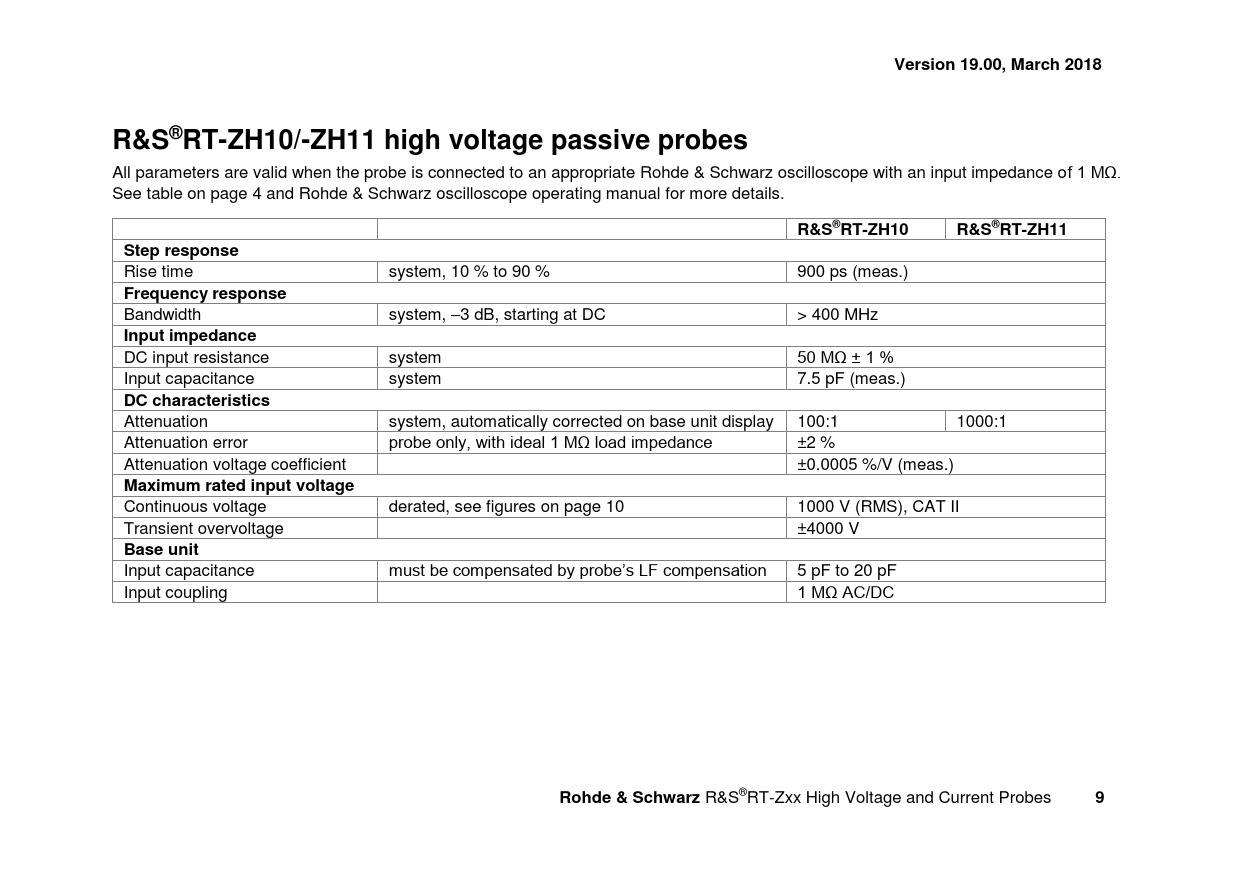

Version 19.00, March 2018 R&S®RT-ZH10/-ZH11 high voltage passive probes
All parameters are valid when the probe is connected to an appropriate Rohde & Schwarz oscilloscope with an input impedance of 1 MΩ. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZH10 R&S®RT-ZH11 Step response
Rise time system, 10 % to 90 % 900 ps (meas.)
Frequency response
Bandwidth system, –3 dB, starting at DC > 400 MHz
Input impedance
DC input resistance system 50 MΩ ± 1 % Input capacitance system 7.5 pF (meas.)
DC characteristics
Attenuation system, automatically corrected on base unit display 100:1 1000:1 Attenuation error probe only, with ideal 1 MΩ load impedance ±2 % Attenuation voltage coefficient ±0.0005 %/V (meas.)
Maximum rated input voltage
Continuous voltage derated, see figures on page 10 1000 V (RMS), CAT II Transient overvoltage ±4000 V
Base unit
Input capacitance must be compensated by probe’s LF compensation 5 pF to 20 pF Input coupling 1 MΩ AC/DC
