Version 18.00, December 2017. R&S®RT-ZP03 passive probe. R&S®RT-ZP03. Attenuation setting. Step response
Text Version of Document
link to page 4 link to page 6

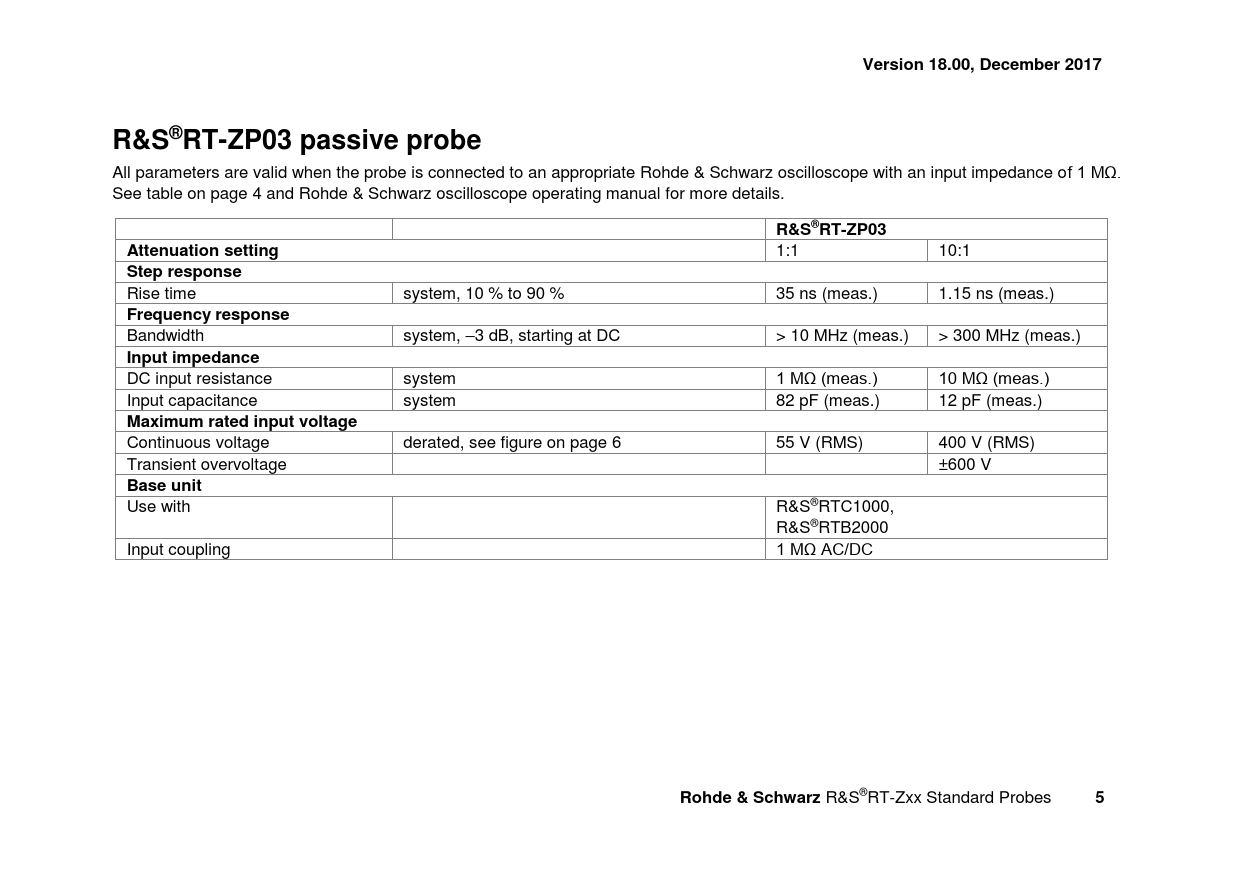

Version 18.00, December 2017 R&S®RT-ZP03 passive probe
All parameters are valid when the probe is connected to an appropriate Rohde & Schwarz oscilloscope with an input impedance of 1 MΩ. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZP03 Attenuation setting
1:1 10:1
Step response
Rise time system, 10 % to 90 % 35 ns (meas.) 1.15 ns (meas.)
Frequency response
Bandwidth system, –3 dB, starting at DC > 10 MHz (meas.) > 300 MHz (meas.)
Input impedance
DC input resistance system 1 MΩ (meas.) 10 MΩ (meas.) Input capacitance system 82 pF (meas.) 12 pF (meas.)
Maximum rated input voltage
Continuous voltage derated, see figure on page 6 55 V (RMS) 400 V (RMS) Transient overvoltage ±600 V
Base unit
Use with R&S®RTC1000, R&S®RTB2000 Input coupling 1 MΩ AC/DC
Rohde & Schwarz
R&S®RT-Zxx Standard Probes
5
