Datasheet RTO2000 Digital oscilloscope (Rohde&Schwarz) - 6
| Manufacturer | Rohde&Schwarz |
| Description | Digital Oscilloscope Specifications |
| Pages / Page | 64 / 6 — Version 16.01, November 2017. Rohde & Schwarz |
| Revision | 16.01 |
| File Format / Size | PDF / 3.0 Mb |
| Document Language | English |
Version 16.01, November 2017. Rohde & Schwarz

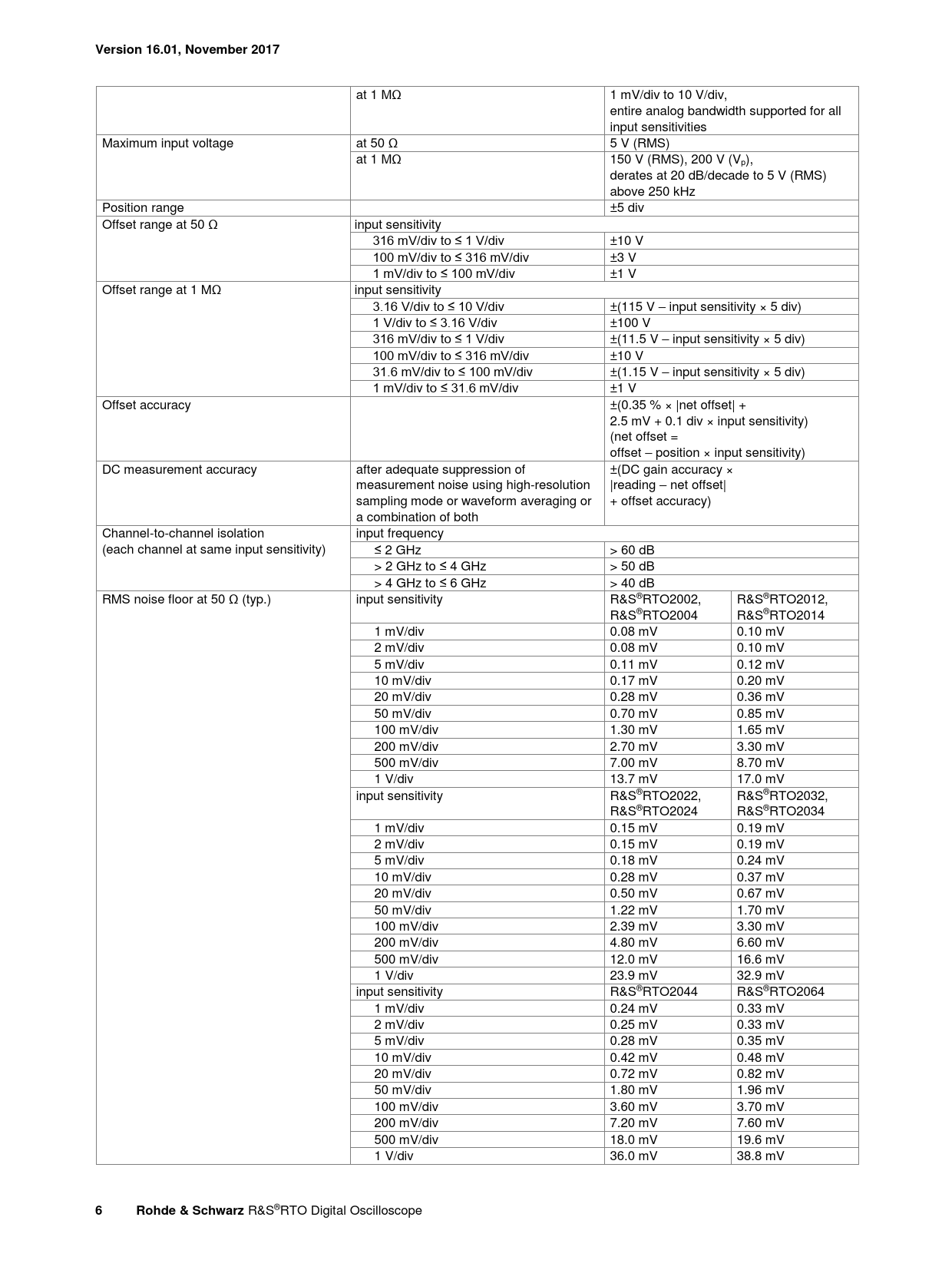

Text Version of Document
Version 16.01, November 2017
at 1 MΩ 1 mV/div to 10 V/div, entire analog bandwidth supported for all input sensitivities Maximum input voltage at 50 Ω 5 V (RMS) at 1 MΩ 150 V (RMS), 200 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz Position range ±5 div Offset range at 50 Ω input sensitivity 316 mV/div to ≤ 1 V/div ±10 V 100 mV/div to ≤ 316 mV/div ±3 V 1 mV/div to ≤ 100 mV/div ±1 V Offset range at 1 MΩ input sensitivity 3.16 V/div to ≤ 10 V/div ±(115 V – input sensitivity × 5 div) 1 V/div to ≤ 3.16 V/div ±100 V 316 mV/div to ≤ 1 V/div ±(11.5 V – input sensitivity × 5 div) 100 mV/div to ≤ 316 mV/div ±10 V 31.6 mV/div to ≤ 100 mV/div ±(1.15 V – input sensitivity × 5 div) 1 mV/div to ≤ 31.6 mV/div ±1 V Offset accuracy ±(0.35 % × |net offset| + 2.5 mV + 0.1 div × input sensitivity) (net offset = offset – position × input sensitivity) DC measurement accuracy after adequate suppression of ±(DC gain accuracy × measurement noise using high-resolution |reading – net offset| sampling mode or waveform averaging or + offset accuracy) a combination of both Channel-to-channel isolation input frequency (each channel at same input sensitivity) ≤ 2 GHz > 60 dB > 2 GHz to ≤ 4 GHz > 50 dB > 4 GHz to ≤ 6 GHz > 40 dB RMS noise floor at 50 Ω (typ.) input sensitivity R&S®RTO2002, R&S®RTO2012, R&S®RTO2004 R&S®RTO2014 1 mV/div 0.08 mV 0.10 mV 2 mV/div 0.08 mV 0.10 mV 5 mV/div 0.11 mV 0.12 mV 10 mV/div 0.17 mV 0.20 mV 20 mV/div 0.28 mV 0.36 mV 50 mV/div 0.70 mV 0.85 mV 100 mV/div 1.30 mV 1.65 mV 200 mV/div 2.70 mV 3.30 mV 500 mV/div 7.00 mV 8.70 mV 1 V/div 13.7 mV 17.0 mV input sensitivity R&S®RTO2022, R&S®RTO2032, R&S®RTO2024 R&S®RTO2034 1 mV/div 0.15 mV 0.19 mV 2 mV/div 0.15 mV 0.19 mV 5 mV/div 0.18 mV 0.24 mV 10 mV/div 0.28 mV 0.37 mV 20 mV/div 0.50 mV 0.67 mV 50 mV/div 1.22 mV 1.70 mV 100 mV/div 2.39 mV 3.30 mV 200 mV/div 4.80 mV 6.60 mV 500 mV/div 12.0 mV 16.6 mV 1 V/div 23.9 mV 32.9 mV input sensitivity R&S®RTO2044 R&S®RTO2064 1 mV/div 0.24 mV 0.33 mV 2 mV/div 0.25 mV 0.33 mV 5 mV/div 0.28 mV 0.35 mV 10 mV/div 0.42 mV 0.48 mV 20 mV/div 0.72 mV 0.82 mV 50 mV/div 1.80 mV 1.96 mV 100 mV/div 3.60 mV 3.70 mV 200 mV/div 7.20 mV 7.60 mV 500 mV/div 18.0 mV 19.6 mV 1 V/div 36.0 mV 38.8 mV
6 Rohde & Schwarz
R&S®RTO Digital Oscilloscope
at 1 MΩ 1 mV/div to 10 V/div, entire analog bandwidth supported for all input sensitivities Maximum input voltage at 50 Ω 5 V (RMS) at 1 MΩ 150 V (RMS), 200 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz Position range ±5 div Offset range at 50 Ω input sensitivity 316 mV/div to ≤ 1 V/div ±10 V 100 mV/div to ≤ 316 mV/div ±3 V 1 mV/div to ≤ 100 mV/div ±1 V Offset range at 1 MΩ input sensitivity 3.16 V/div to ≤ 10 V/div ±(115 V – input sensitivity × 5 div) 1 V/div to ≤ 3.16 V/div ±100 V 316 mV/div to ≤ 1 V/div ±(11.5 V – input sensitivity × 5 div) 100 mV/div to ≤ 316 mV/div ±10 V 31.6 mV/div to ≤ 100 mV/div ±(1.15 V – input sensitivity × 5 div) 1 mV/div to ≤ 31.6 mV/div ±1 V Offset accuracy ±(0.35 % × |net offset| + 2.5 mV + 0.1 div × input sensitivity) (net offset = offset – position × input sensitivity) DC measurement accuracy after adequate suppression of ±(DC gain accuracy × measurement noise using high-resolution |reading – net offset| sampling mode or waveform averaging or + offset accuracy) a combination of both Channel-to-channel isolation input frequency (each channel at same input sensitivity) ≤ 2 GHz > 60 dB > 2 GHz to ≤ 4 GHz > 50 dB > 4 GHz to ≤ 6 GHz > 40 dB RMS noise floor at 50 Ω (typ.) input sensitivity R&S®RTO2002, R&S®RTO2012, R&S®RTO2004 R&S®RTO2014 1 mV/div 0.08 mV 0.10 mV 2 mV/div 0.08 mV 0.10 mV 5 mV/div 0.11 mV 0.12 mV 10 mV/div 0.17 mV 0.20 mV 20 mV/div 0.28 mV 0.36 mV 50 mV/div 0.70 mV 0.85 mV 100 mV/div 1.30 mV 1.65 mV 200 mV/div 2.70 mV 3.30 mV 500 mV/div 7.00 mV 8.70 mV 1 V/div 13.7 mV 17.0 mV input sensitivity R&S®RTO2022, R&S®RTO2032, R&S®RTO2024 R&S®RTO2034 1 mV/div 0.15 mV 0.19 mV 2 mV/div 0.15 mV 0.19 mV 5 mV/div 0.18 mV 0.24 mV 10 mV/div 0.28 mV 0.37 mV 20 mV/div 0.50 mV 0.67 mV 50 mV/div 1.22 mV 1.70 mV 100 mV/div 2.39 mV 3.30 mV 200 mV/div 4.80 mV 6.60 mV 500 mV/div 12.0 mV 16.6 mV 1 V/div 23.9 mV 32.9 mV input sensitivity R&S®RTO2044 R&S®RTO2064 1 mV/div 0.24 mV 0.33 mV 2 mV/div 0.25 mV 0.33 mV 5 mV/div 0.28 mV 0.35 mV 10 mV/div 0.42 mV 0.48 mV 20 mV/div 0.72 mV 0.82 mV 50 mV/div 1.80 mV 1.96 mV 100 mV/div 3.60 mV 3.70 mV 200 mV/div 7.20 mV 7.60 mV 500 mV/div 18.0 mV 19.6 mV 1 V/div 36.0 mV 38.8 mV
6 Rohde & Schwarz
R&S®RTO Digital Oscilloscope
