Datasheet RTO2000 Digital oscilloscope (Rohde&Schwarz) - 8

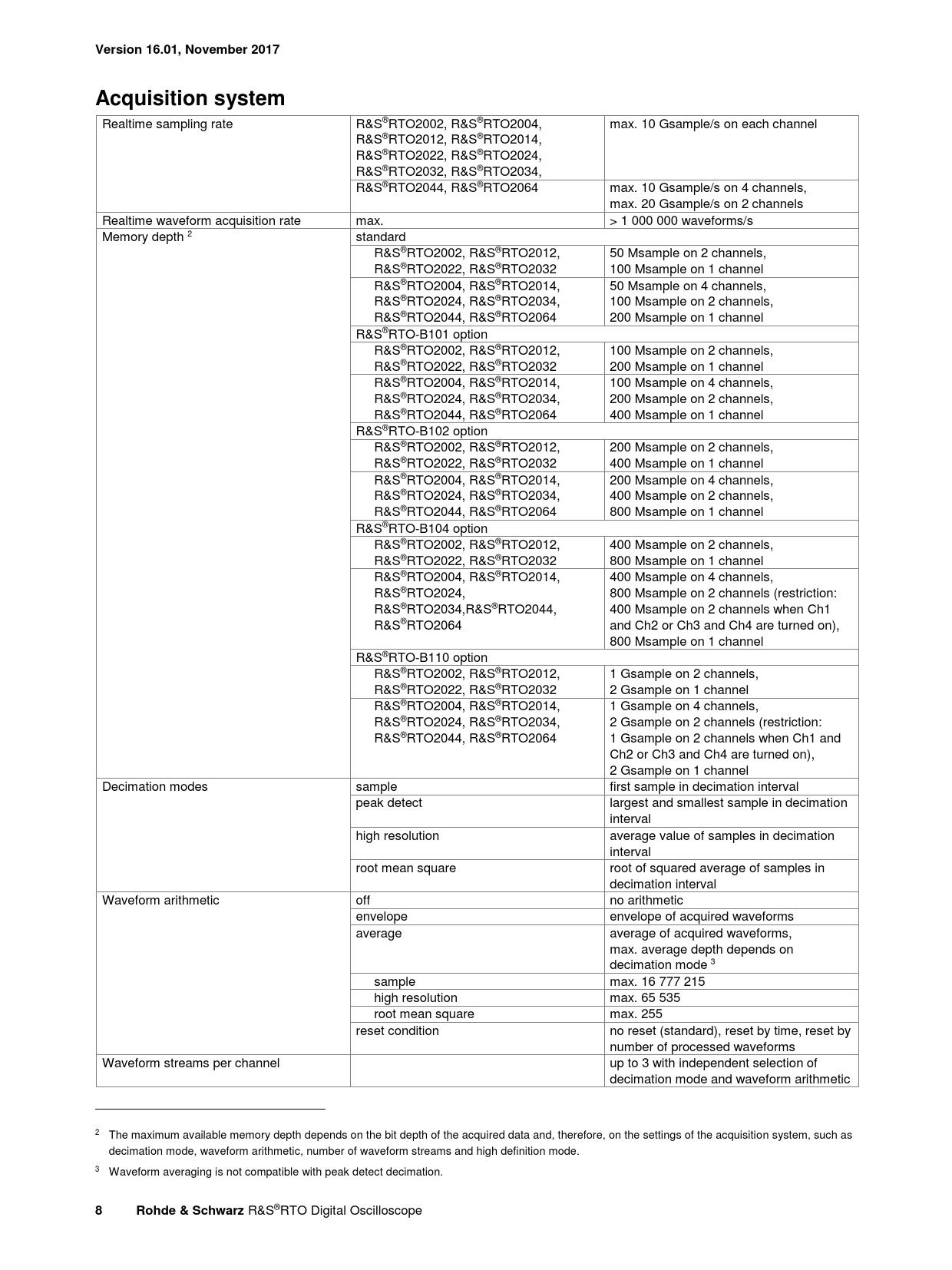

Version 16.01, November 2017 Acquisition system
Realtime sampling rate R&S®RTO2002, R&S®RTO2004, max. 10 Gsample/s on each channel R&S®RTO2012, R&S®RTO2014, R&S®RTO2022, R&S®RTO2024, R&S®RTO2032, R&S®RTO2034, R&S®RTO2044, R&S®RTO2064 max. 10 Gsample/s on 4 channels, max. 20 Gsample/s on 2 channels Realtime waveform acquisition rate max. > 1 000 000 waveforms/s Memory depth 2 standard R&S®RTO2002, R&S®RTO2012, 50 Msample on 2 channels, R&S®RTO2022, R&S®RTO2032 100 Msample on 1 channel R&S®RTO2004, R&S®RTO2014, 50 Msample on 4 channels, R&S®RTO2024, R&S®RTO2034, 100 Msample on 2 channels, R&S®RTO2044, R&S®RTO2064 200 Msample on 1 channel R&S®RTO-B101 option R&S®RTO2002, R&S®RTO2012, 100 Msample on 2 channels, R&S®RTO2022, R&S®RTO2032 200 Msample on 1 channel R&S®RTO2004, R&S®RTO2014, 100 Msample on 4 channels, R&S®RTO2024, R&S®RTO2034, 200 Msample on 2 channels, R&S®RTO2044, R&S®RTO2064 400 Msample on 1 channel R&S®RTO-B102 option R&S®RTO2002, R&S®RTO2012, 200 Msample on 2 channels, R&S®RTO2022, R&S®RTO2032 400 Msample on 1 channel R&S®RTO2004, R&S®RTO2014, 200 Msample on 4 channels, R&S®RTO2024, R&S®RTO2034, 400 Msample on 2 channels, R&S®RTO2044, R&S®RTO2064 800 Msample on 1 channel R&S®RTO-B104 option R&S®RTO2002, R&S®RTO2012, 400 Msample on 2 channels, R&S®RTO2022, R&S®RTO2032 800 Msample on 1 channel R&S®RTO2004, R&S®RTO2014, 400 Msample on 4 channels, R&S®RTO2024, 800 Msample on 2 channels (restriction: R&S®RTO2034,R&S®RTO2044, 400 Msample on 2 channels when Ch1 R&S®RTO2064 and Ch2 or Ch3 and Ch4 are turned on), 800 Msample on 1 channel R&S®RTO-B110 option R&S®RTO2002, R&S®RTO2012, 1 Gsample on 2 channels, R&S®RTO2022, R&S®RTO2032 2 Gsample on 1 channel R&S®RTO2004, R&S®RTO2014, 1 Gsample on 4 channels, R&S®RTO2024, R&S®RTO2034, 2 Gsample on 2 channels (restriction: R&S®RTO2044, R&S®RTO2064 1 Gsample on 2 channels when Ch1 and Ch2 or Ch3 and Ch4 are turned on), 2 Gsample on 1 channel Decimation modes sample first sample in decimation interval peak detect largest and smallest sample in decimation interval high resolution average value of samples in decimation interval root mean square root of squared average of samples in decimation interval Waveform arithmetic off no arithmetic envelope envelope of acquired waveforms average average of acquired waveforms, max. average depth depends on decimation mode 3 sample max. 16 777 215 high resolution max. 65 535 root mean square max. 255 reset condition no reset (standard), reset by time, reset by number of processed waveforms Waveform streams per channel up to 3 with independent selection of decimation mode and waveform arithmetic 2 The maximum available memory depth depends on the bit depth of the acquired data and, therefore, on the settings of the acquisition system, such as decimation mode, waveform arithmetic, number of waveform streams and high definition mode. 3 Waveform averaging is not compatible with peak detect decimation.
8 Rohde & Schwarz
R&S®RTO Digital Oscilloscope
