User manual of Network Camera UD.6L0201D1919A01 (Hikvision) - 5
| Manufacturer | Hikvision |
| Description | Network Camera User Manual |
| Pages / Page | 165 / 5 — Safety Instruction. Warnings. Cautions. Warnings: |
| Revision | 5.3.0 |
| File Format / Size | PDF / 4.1 Mb |
| Document Language | English |
Safety Instruction. Warnings. Cautions. Warnings:
Text Version of Document

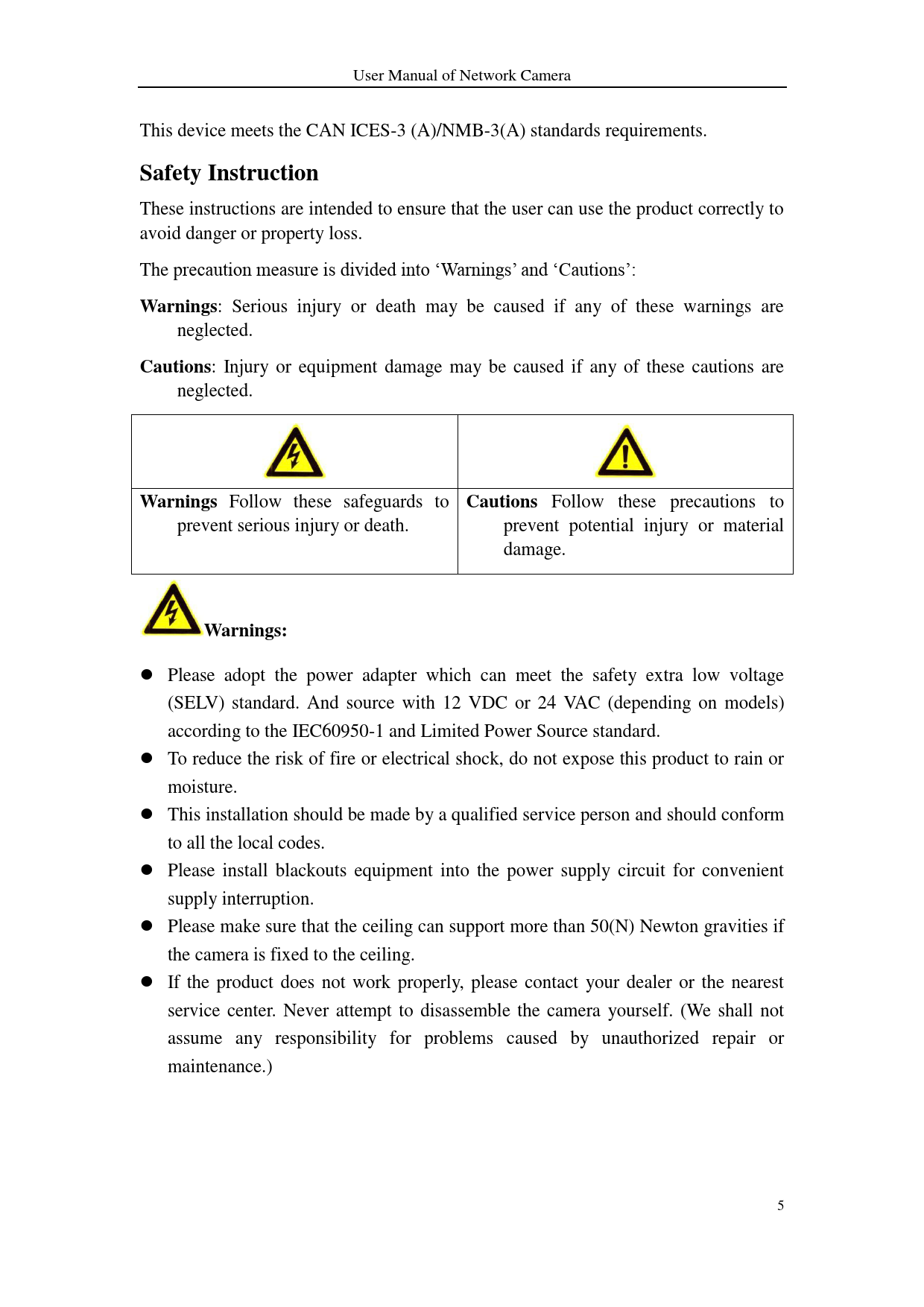

User Manual of Network Camera This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings
: Serious injury or death may be caused if any of these warnings are neglected.
Cautions
: Injury or equipment damage may be caused if any of these cautions are neglected.
Warnings
Follow these safeguards to
Cautions
Follow these precautions to prevent serious injury or death. prevent potential injury or material damage.
Warnings:
Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard. To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture. This installation should be made by a qualified service person and should conform to all the local codes. Please install blackouts equipment into the power supply circuit for convenient supply interruption. Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed to the ceiling. If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) 5 Document Outline Chapter 1 System Requirement Chapter 2 Network Connection 2.1 Setting the Network Camera over the LAN 2.1.1 Wiring over the LAN 2.1.2 Activating the Camera 2.2 Setting the Network Camera over the WAN 2.2.1 Static IP Connection 2.2.2 Dynamic IP Connection Chapter 3 Access to the Network Camera 3.1 Accessing by Web Browsers 3.2 Accessing by Client Software Chapter 4 Wi-Fi Settings 4.1 Configuring Wi-Fi Connection in Manage and Ad-hoc Modes 4.2 Easy Wi-Fi Connection with WPS function 4.3 IP Property Settings for Wireless Network Connection Chapter 5 Live View 5.1 Live View Page 5.2 Starting Live View 5.3 Recording and Capturing Pictures Manually 5.4 Operating PTZ Control 5.4.1 PTZ Control Panel 5.4.2 Setting / Calling a Preset 5.4.3 Setting / Calling a Patrol Chapter 6 Network Camera Configuration 6.1 Configuring Local Parameters 6.2 Configuring Time Settings 6.3 Configuring Network Settings 6.3.1 Configuring TCP/IP Settings 6.3.2 Configuring Port Settings 6.3.3 Configuring PPPoE Settings 6.3.4 Configuring DDNS Settings 6.3.5 Configuring SNMP Settings 6.3.6 Configuring 802.1X Settings 6.3.7 Configuring QoS Settings 6.3.8 Configuring UPnP™ Settings 6.3.9 Configuring Wireless Dial Settings 6.3.10 Email Sending Triggered by Alarm 6.3.11 Configuring NAT (Network Address Translation) Settings 6.3.12 Configuring FTP Settings 6.3.13 Platform Access 6.3.14 HTTPS Settings 6.4 Configuring Video and Audio Settings 6.4.1 Configuring Video Settings 6.4.2 Configuring Audio Settings 6.4.3 Configuring ROI Encoding 6.4.4 Display Information on Stream 6.4.5 Configuring Target Cropping 6.5 Configuring Image Parameters 6.5.1 Configuring Display Settings 6.5.2 Configuring OSD Settings 6.5.3 Configuring Text Overlay Settings 6.5.4 Configuring Privacy Mask 6.5.5 Configuring Picture Overlay 6.6 Configuring and Handling Alarms 6.6.1 Configuring Motion Detection 6.6.2 Configuring Video Tampering Alarm 6.6.3 Configuring Alarm Input 6.6.4 Configuring Alarm Output 6.6.5 Handling Exception 6.6.6 Configuring Other Alarm 6.6.7 Configuring Audio Exception Detection 6.6.8 Configuring Defocus Detection 6.6.9 Configuring Scene Change Detection 6.6.10 Configuring Face Detection 6.6.11 Configuring Line Crossing Detection 6.6.12 Configuring Intrusion Detection 6.6.13 Configuring Region Entrance Detection 6.6.14 Configuring Region Exiting Detection 6.6.15 Configuring Unattended Baggage Detection 6.6.16 Configuring Object Removal Detection 6.7 VCA Configuration 6.7.1 Behavior Analysis 6.7.2 Face Capture 6.7.3 Heat Map 6.7.4 People Counting Chapter 7 Storage Settings 7.1 Configuring NAS Settings 7.2 Configuring Recording Schedule 7.3 Configuring Snapshot Settings 7.4 Configuring Lite Storage 7.5 Configuring Cloud Storage Chapter 8 Counting Chapter 9 Road Traffic Chapter 10 Playback Chapter 11 Log Searching Chapter 12 Others 12.1 Managing User Accounts 12.2 Authentication 12.3 Anonymous Visit 12.4 IP Address Filter 12.5 Security Service 12.6 Viewing Device Information 12.7 Maintenance 12.7.1 Rebooting the Camera 12.7.2 Restoring Default Settings 12.7.3 Exporting / Importing Configuration File 12.7.4 Upgrading the System 12.8 RS-232 Settings 12.9 RS-485 Settings 12.10 Service Settings Appendix Appendix 1 SADP Software Introduction Appendix 2 Port Mapping
