Performance Verification Guide DS1000Z-E Series (Rigol) - 4

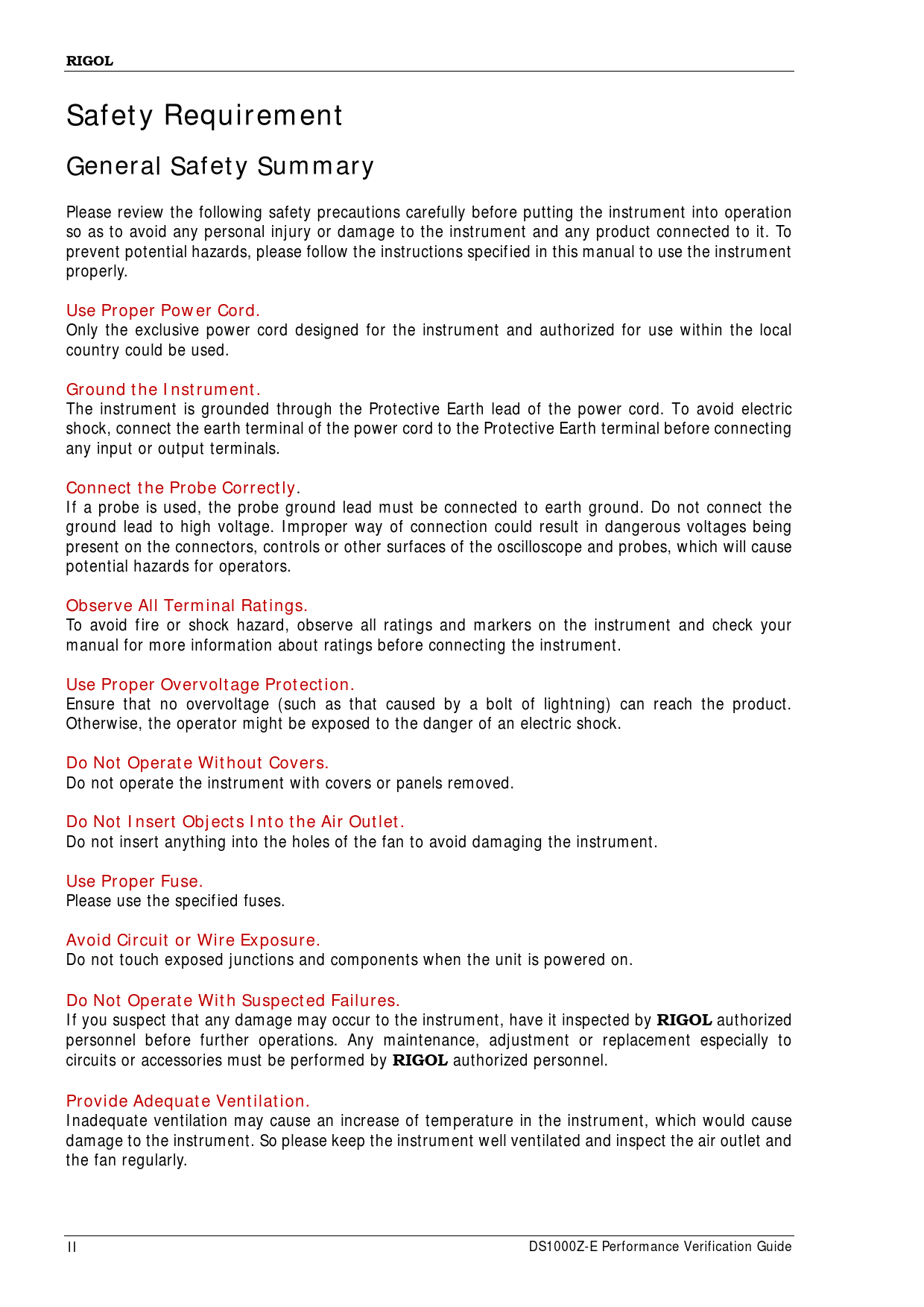

RIGOL Safety Requirement General Safety Summary
Please review the fol owing safety precautions carefully before putting the instrument into operation so as to avoid any personal injury or damage to the instrument and any product connected to it. To prevent potential hazards, please fol ow the instructions specified in this manual to use the instrument properly.
Use Proper Power Cord.
Only the exclusive power cord designed for the instrument and authorized for use within the local country could be used.
Ground the Instrument.
The instrument is grounded through the Protective Earth lead of the power cord. To avoid electric shock, connect the earth terminal of the power cord to the Protective Earth terminal before connecting any input or output terminals.
Connect the Probe Correctly
. If a probe is used, the probe ground lead must be connected to earth ground. Do not connect the ground lead to high voltage. Improper way of connection could result in dangerous voltages being present on the connectors, controls or other surfaces of the oscil oscope and probes, which wil cause potential hazards for operators.
Observe All Terminal Ratings.
To avoid fire or shock hazard, observe al ratings and markers on the instrument and check your manual for more information about ratings before connecting the instrument.
Use Proper Overvoltage Protection.
Ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the operator might be exposed to the danger of an electric shock.
Do Not Operate Without Covers.
Do not operate the instrument with covers or panels removed.
Do Not Insert Objects Into the Air Outlet.
Do not insert anything into the holes of the fan to avoid damaging the instrument.
Use Proper Fuse.
Please use the specified fuses.
Avoid Circuit or Wire Exposure.
Do not touch exposed junctions and components when the unit is powered on.
Do Not Operate With Suspected Failures.
If you suspect that any damage may occur to the instrument, have it inspected by
RIGOL
authorized personnel before further operations. Any maintenance, adjustment or replacement especial y to circuits or accessories must be performed by
RIGOL
authorized personnel.
Provide Adequate Ventilation.
Inadequate ventilation may cause an increase of temperature in the instrument, which would cause damage to the instrument. So please keep the instrument wel ventilated and inspect the air outlet and the fan regularly. II DS1000Z-E Performance Verification Guide Document Outline Guaranty and Declaration Safety Requirement General Safety Summary Safety Notices and Symbols Document Overview Overview Test Preparations Self-test Self-calibration Test Result Record Specifications Performance Verification Test Impedance Test Specification Test Connection Diagram Test Procedures Test Record Form DC Gain Accuracy Test Specification Test Connection Diagram Test Procedures Test Record Form Bandwidth Test Specification Test Connection Diagram Test Procedures Test Record Form Bandwidth Limit Test Specification Test Connection Diagram Test Procedures Test Record Form Time Base Accuracy Test Specification Test Connection Diagram Test Procedures Test Record Form Zero Point Offset Test Specification Test Connection Diagram Test Procedures Test Record Form Appendix Test Record Form
