Service Guide DS1000Z-E Series (Rigol) - 6

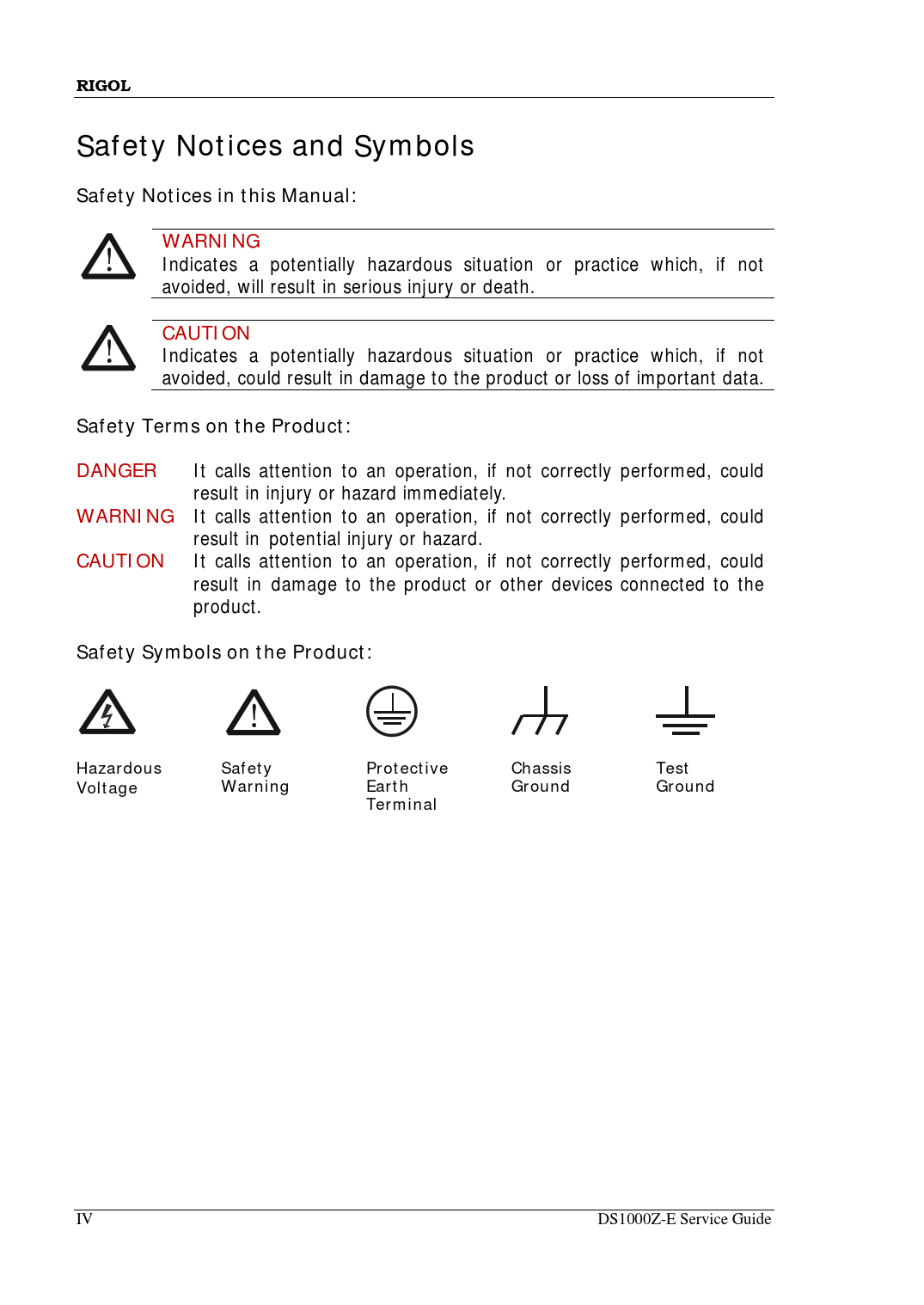

RIGOL Safety Notices and Symbols Safety Notices in this Manual: WARNING
Indicates a potential y hazardous situation or practice which, if not avoided, wil result in serious injury or death.
CAUTION
Indicates a potential y hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data.
Safety Terms on the Product: DANGER
It cal s attention to an operation, if not correctly performed, could result in injury or hazard immediately.
WARNING
It cal s attention to an operation, if not correctly performed, could result in potential injury or hazard.
CAUTION
It cal s attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product.
Safety Symbols on the Product: Hazardous Safety Protective Chassis Test Voltage Warning Earth Ground Ground Terminal
IV DS1000Z-E Service Guide Document Outline Guaranty and Declaration Safety Requirement General Safety Summary Safety Notices and Symbols Document Overview Disassembly and Assembly Notices to Disassembly and Assembly Exploded View Drawing Disassemble the Rear Panel Disassemble the Metal Rear Panel Disassemble the Knob Disassemble the Front Panel Disassemble the Keypad Board and LCD Disassemble the Main Board Assembly Procedures Troubleshooting&Maintenance Troubleshooting Maintenance System Maintenance Warranty Care and Cleaning Environmental Considerations
