Service Guide DS1000Z-E Series (Rigol) - 9

link to page 9 link to page 9 Chapter 1 Disassembly and Assembly

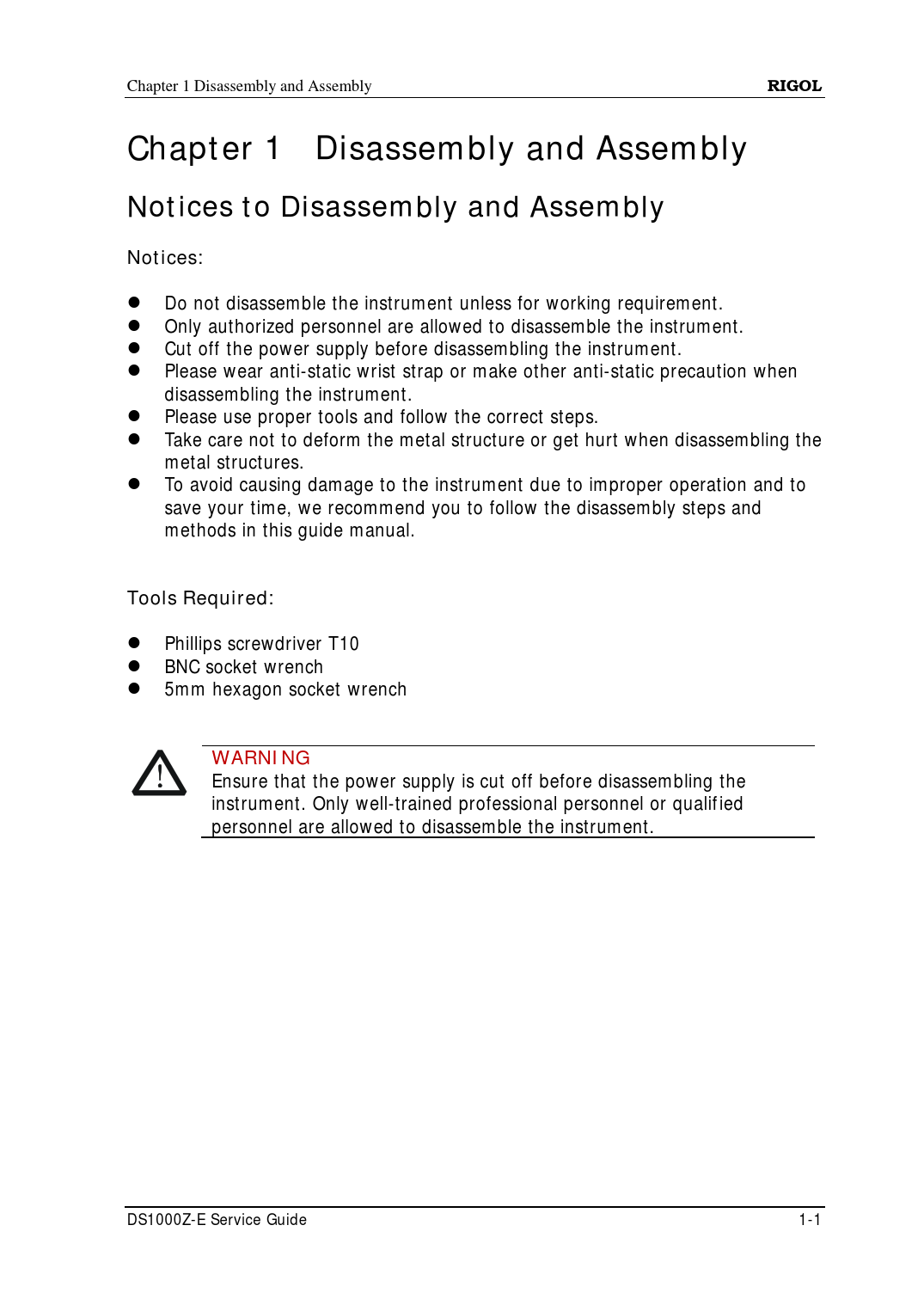

RIGOL Chapter 1 Disassembly and Assembly Notices to Disassembly and Assembly Notices:
Do not disassemble the instrument unless for working requirement. Only authorized personnel are al owed to disassemble the instrument. Cut off the power supply before disassembling the instrument. Please wear anti-static wrist strap or make other anti-static precaution when disassembling the instrument. Please use proper tools and fol ow the correct steps. Take care not to deform the metal structure or get hurt when disassembling the metal structures. To avoid causing damage to the instrument due to improper operation and to save your time, we recommend you to fol ow the disassembly steps and methods in this guide manual.
Tools Required:
Phil ips screwdriver T10 BNC socket wrench 5mm hexagon socket wrench
WARNING
Ensure that the power supply is cut off before disassembling the instrument. Only wel -trained professional personnel or qualified personnel are al owed to disassemble the instrument. DS1000Z-E Service Guide 1-1 Document Outline Guaranty and Declaration Safety Requirement General Safety Summary Safety Notices and Symbols Document Overview Disassembly and Assembly Notices to Disassembly and Assembly Exploded View Drawing Disassemble the Rear Panel Disassemble the Metal Rear Panel Disassemble the Knob Disassemble the Front Panel Disassemble the Keypad Board and LCD Disassemble the Main Board Assembly Procedures Troubleshooting&Maintenance Troubleshooting Maintenance System Maintenance Warranty Care and Cleaning Environmental Considerations
