EV6550DHAT—Raspberry Pi HAT for CMX655D Product Preview

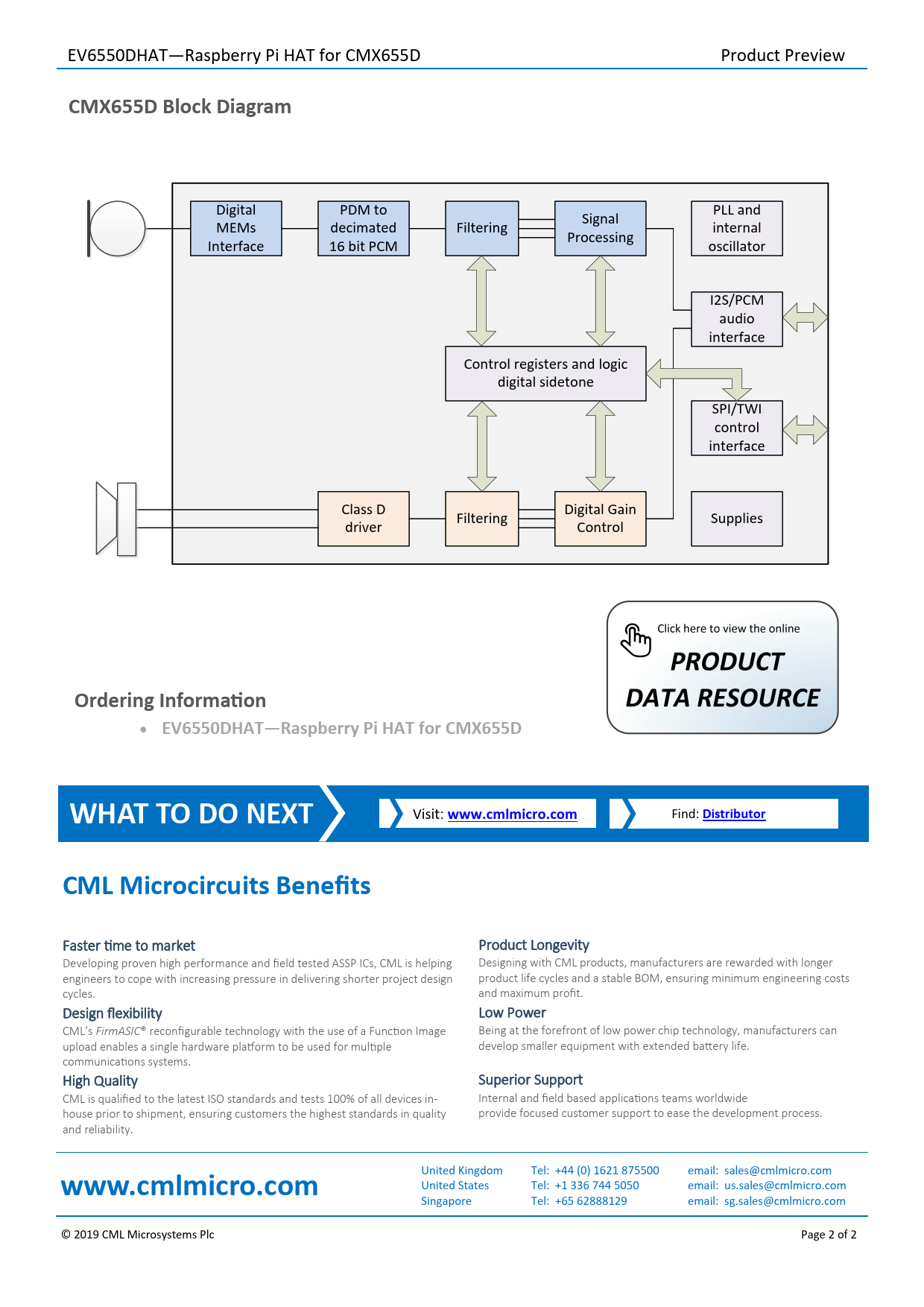

CMX655D Block Diagram
Digital PDM to PLL and Signal MEMs decimated Filtering internal Processing Interface 16 bit PCM oscillator I2S/PCM audio interface Control registers and logic digital sidetone SPI/TWI control interface Class D Digital Gain Filtering Supplies driver Control
Ordering Information EV6550DHAT—Raspberry Pi HAT for CMX655D
