Raspberry Pi HAT for CMX655D EV6550DHAT

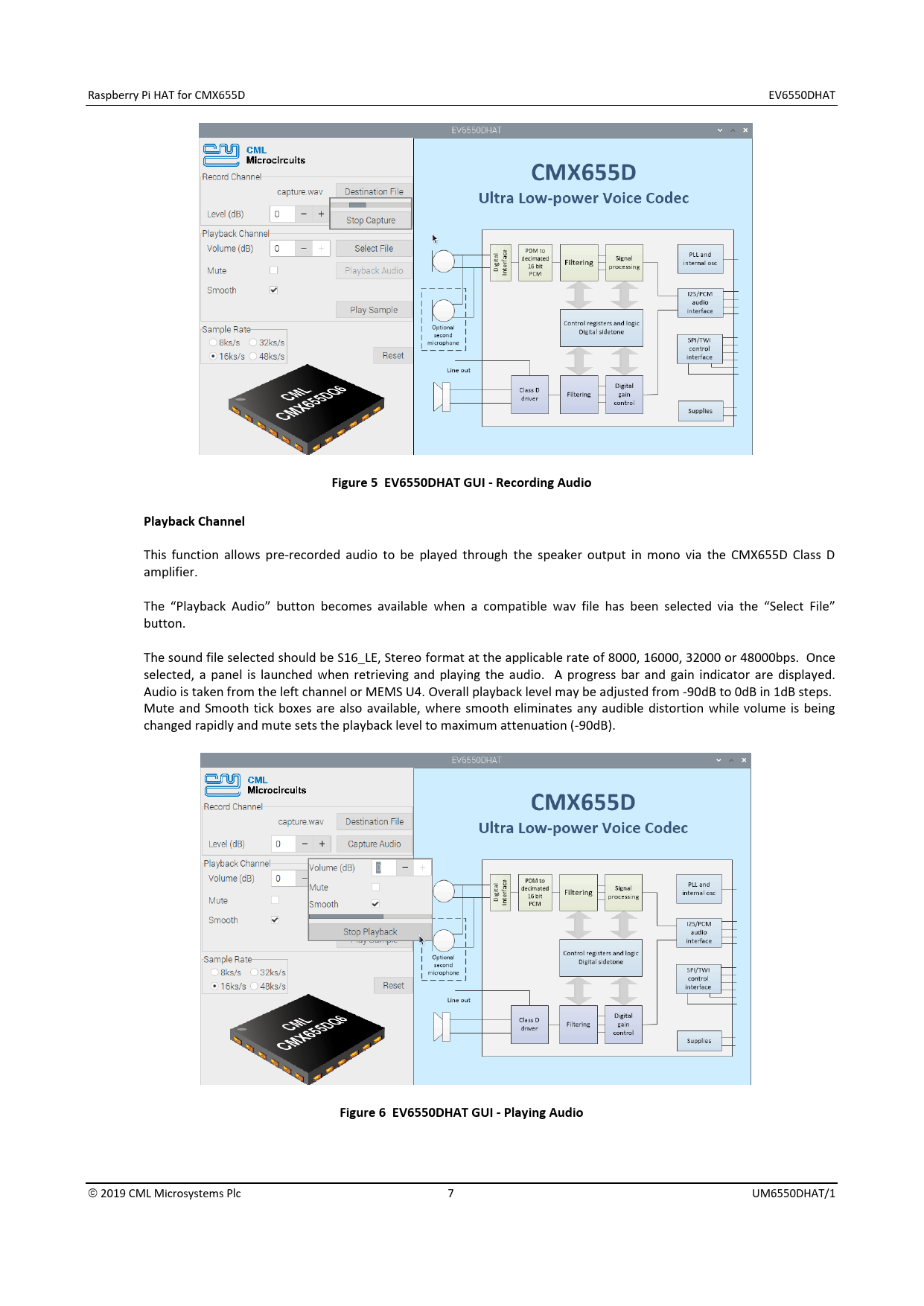

Figure 5 EV6550DHAT GUI - Recording Audio Playback Channel
This function allows pre-recorded audio to be played through the speaker output in mono via the CMX655D Class D amplifier. The “Playback Audio” button becomes available when a compatible wav file has been selected via the “Select File” button. The sound file selected should be S16_LE, Stereo format at the applicable rate of 8000, 16000, 32000 or 48000bps. Once selected, a panel is launched when retrieving and playing the audio. A progress bar and gain indicator are displayed. Audio is taken from the left channel or MEMS U4. Overall playback level may be adjusted from -90dB to 0dB in 1dB steps. Mute and Smooth tick boxes are also available, where smooth eliminates any audible distortion while volume is being changed rapidly and mute sets the playback level to maximum attenuation (-90dB).
Figure 6 EV6550DHAT GUI - Playing Audio
