Datasheet Full Pinout Nicla Sense ME (Arduino) - 2

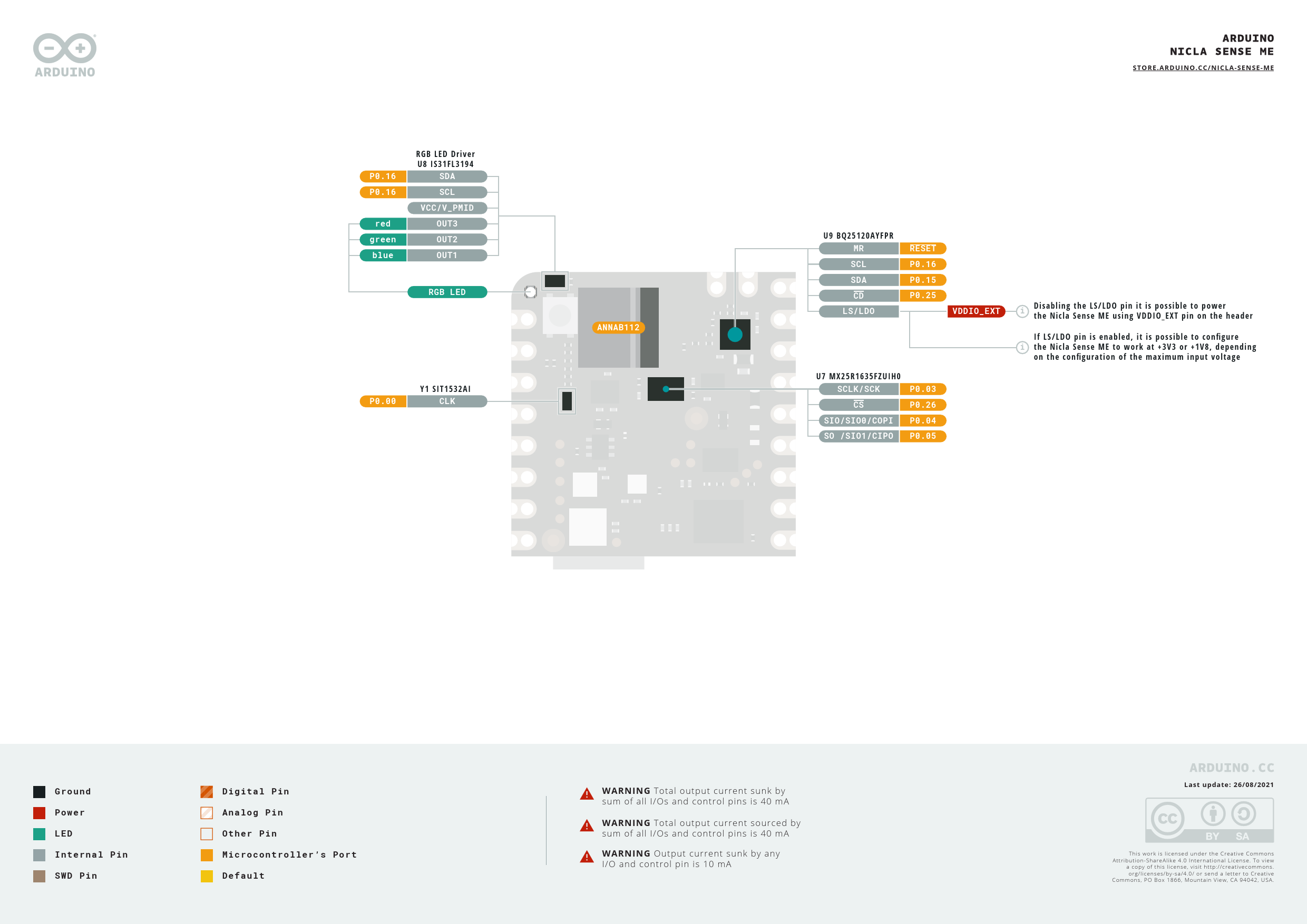

STORE.ARDUINO.CC/NICLA-SENSE-ME RGB LED Driver U8 IS31FL3194 P0.16 SDA P0.16 SCL VCC/V_PMID red OUT3 U9 BQ25120AYFPR green OUT2 MR RESET blue OUT1 SCL P0.16 SDA P0.15 RGB LED CD P0.25 Disabling the LS/LDO pin it is possible to power LS/LDO VDDIO_EXT i the Nicla Sense ME using VDDIO_EXT pin on the header ANNAB112 If LS/LDO pin is enabled, it is possible to configure i the Nicla Sense ME to work at +3V3 or +1V8, depending on the configuration of the maximum input voltage U7 MX25R1635FZUIH0 Y1 SIT1532AI SCLK/SCK P0.03 P0.00 CLK CS P0.26 SIO/SIO0/COPI P0.04 SO /SIO1/CIPO P0.05 Last update: 26/08/2021 Ground Digital Pin WARNING
Total output current sunk by sum of all I/Os and control pins is 40 mA
Power Analog Pin WARNING
Total output current sourced by
LED Other Pin
sum of all I/Os and control pins is 40 mA
WARNING
Output current sunk by any This work is licensed under the Creative Commons
Internal Pin Microcontroller’s Port
Attribution-ShareAlike 4.0 International License. To view I/O and control pin is 10 mA a copy of this license, visit http://creativecommons. org/licenses/by-sa/4.0/ or send a letter to Creative
SWD Pin Default
Commons, PO Box 1866, Mountain View, CA 94042, USA.
