Datasheet LTC1096, LTC1096L, LTC1098, LTC1098L (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Micropower Sampling 8-Bit Serial I/O A/D Converters |
| Pages / Page | 32 / 5 — CONVERTER AND MULTIPLEXER CHARACTERISTICS. LTC1096/LTC1098 The |
| File Format / Size | PDF / 292 Kb |
| Document Language | English |
CONVERTER AND MULTIPLEXER CHARACTERISTICS. LTC1096/LTC1098 The
Model Line for this Datasheet
- LTC1096ACN8#PBF LTC1096ACS8#PBF LTC1096ACS8#TRPBF LTC1096AIN8#PBF LTC1096AIS8#PBF LTC1096AIS8#TRPBF LTC1096CN8#PBF LTC1096CN8#PBF LTC1096CS8#PBF LTC1096CS8#PBF LTC1096CS8#TRPBF LTC1096CS8#TRPBF LTC1096IN8#PBF LTC1096IN8#PBF LTC1096IS8#PBF LTC1096IS8#PBF LTC1096IS8#TRPBF LTC1096IS8#TRPBF LTC1096LCS8#PBF LTC1096LCS8#TRPBF LTC1096LIS8#PBF LTC1096LIS8#TRPBF
- LTC1098ACN8#PBF LTC1098ACS8#PBF LTC1098ACS8#TRPBF LTC1098CN8#PBF LTC1098CN8#PBF LTC1098CS8#PBF LTC1098CS8#PBF LTC1098CS8#TRPBF LTC1098CS8#TRPBF LTC1098IN8#PBF LTC1098IN8#PBF LTC1098IS8#PBF LTC1098IS8#PBF LTC1098IS8#TRPBF LTC1098IS8#TRPBF LTC1098LCS8#PBF LTC1098LCS8#TRPBF LTC1098LIS8#PBF LTC1098LIS8#TRPBF
Text Version of Document
LTC1096/LTC1096L LTC1098/LTC1098L

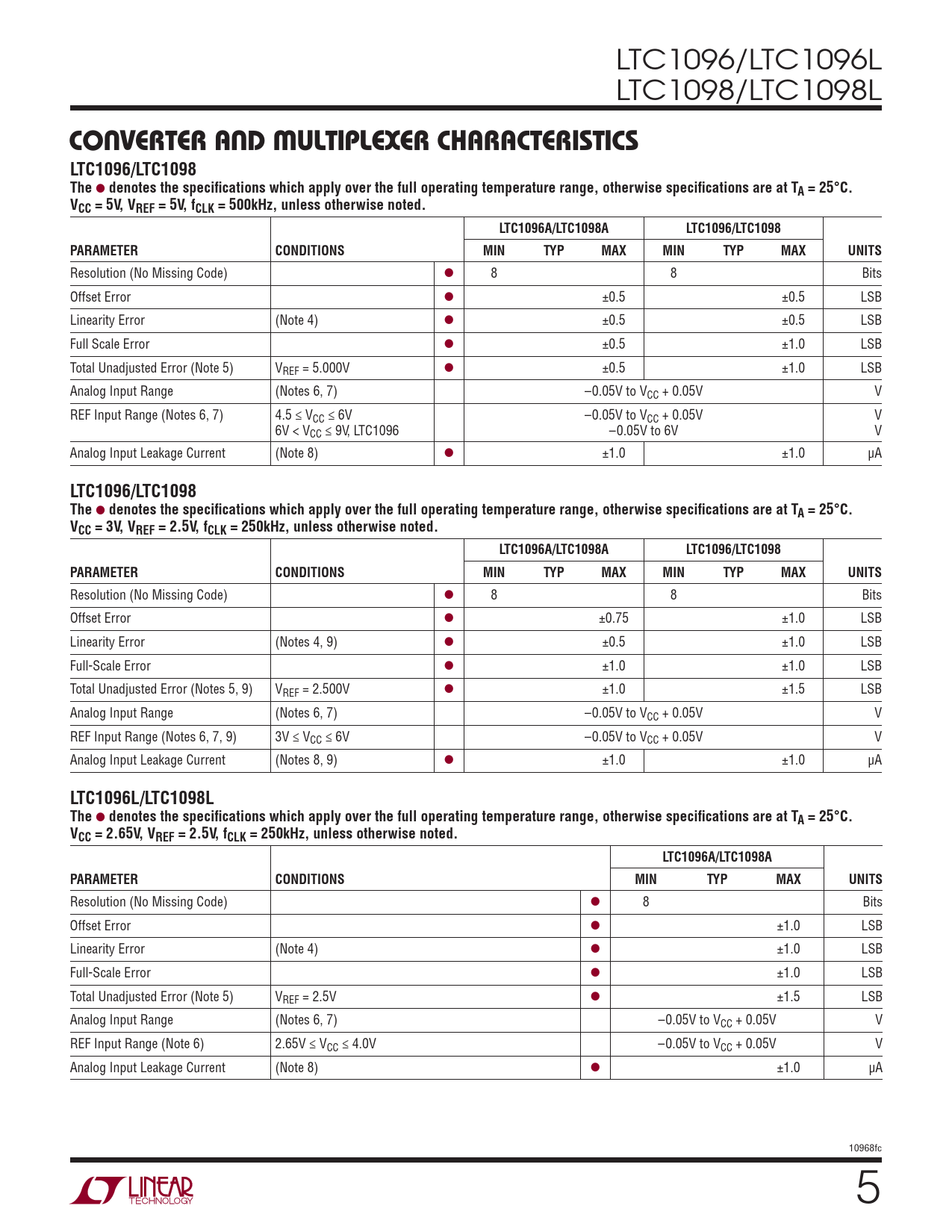

CONVERTER AND MULTIPLEXER CHARACTERISTICS LTC1096/LTC1098 The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 5V, VREF = 5V, fCLK = 500kHz, unless otherwise noted. LTC1096A/LTC1098A LTC1096/LTC1098 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 8 Bits Offset Error l ±0.5 ±0.5 LSB Linearity Error (Note 4) l ±0.5 ±0.5 LSB Full Scale Error l ±0.5 ±1.0 LSB Total Unadjusted Error (Note 5) VREF = 5.000V l ±0.5 ±1.0 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Notes 6, 7) 4.5 ≤ VCC ≤ 6V –0.05V to VCC + 0.05V V 6V < VCC ≤ 9V, LTC1096 –0.05V to 6V V Analog Input Leakage Current (Note 8) l ±1.0 ±1.0 μA
LTC1096/LTC1098 The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 3V, VREF = 2.5V, fCLK = 250kHz, unless otherwise noted. LTC1096A/LTC1098A LTC1096/LTC1098 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 8 Bits Offset Error l ±0.75 ±1.0 LSB Linearity Error (Notes 4, 9) l ±0.5 ±1.0 LSB Full-Scale Error l ±1.0 ±1.0 LSB Total Unadjusted Error (Notes 5, 9) VREF = 2.500V l ±1.0 ±1.5 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Notes 6, 7, 9) 3V ≤ VCC ≤ 6V –0.05V to VCC + 0.05V V Analog Input Leakage Current (Notes 8, 9) l ±1.0 ±1.0 μA
LTC1096L/LTC1098L The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 2.65V, VREF = 2.5V, fCLK = 250kHz, unless otherwise noted. LTC1096A/LTC1098A PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 Bits Offset Error l ±1.0 LSB Linearity Error (Note 4) l ±1.0 LSB Full-Scale Error l ±1.0 LSB Total Unadjusted Error (Note 5) VREF = 2.5V l ±1.5 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Note 6) 2.65V ≤ VCC ≤ 4.0V –0.05V to VCC + 0.05V V Analog Input Leakage Current (Note 8) l ±1.0 μA 10968fc 5
CONVERTER AND MULTIPLEXER CHARACTERISTICS LTC1096/LTC1098 The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 5V, VREF = 5V, fCLK = 500kHz, unless otherwise noted. LTC1096A/LTC1098A LTC1096/LTC1098 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 8 Bits Offset Error l ±0.5 ±0.5 LSB Linearity Error (Note 4) l ±0.5 ±0.5 LSB Full Scale Error l ±0.5 ±1.0 LSB Total Unadjusted Error (Note 5) VREF = 5.000V l ±0.5 ±1.0 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Notes 6, 7) 4.5 ≤ VCC ≤ 6V –0.05V to VCC + 0.05V V 6V < VCC ≤ 9V, LTC1096 –0.05V to 6V V Analog Input Leakage Current (Note 8) l ±1.0 ±1.0 μA
LTC1096/LTC1098 The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 3V, VREF = 2.5V, fCLK = 250kHz, unless otherwise noted. LTC1096A/LTC1098A LTC1096/LTC1098 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 8 Bits Offset Error l ±0.75 ±1.0 LSB Linearity Error (Notes 4, 9) l ±0.5 ±1.0 LSB Full-Scale Error l ±1.0 ±1.0 LSB Total Unadjusted Error (Notes 5, 9) VREF = 2.500V l ±1.0 ±1.5 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Notes 6, 7, 9) 3V ≤ VCC ≤ 6V –0.05V to VCC + 0.05V V Analog Input Leakage Current (Notes 8, 9) l ±1.0 ±1.0 μA
LTC1096L/LTC1098L The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 2.65V, VREF = 2.5V, fCLK = 250kHz, unless otherwise noted. LTC1096A/LTC1098A PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Code) l 8 Bits Offset Error l ±1.0 LSB Linearity Error (Note 4) l ±1.0 LSB Full-Scale Error l ±1.0 LSB Total Unadjusted Error (Note 5) VREF = 2.5V l ±1.5 LSB Analog Input Range (Notes 6, 7) –0.05V to VCC + 0.05V V REF Input Range (Note 6) 2.65V ≤ VCC ≤ 4.0V –0.05V to VCC + 0.05V V Analog Input Leakage Current (Note 8) l ±1.0 μA 10968fc 5
