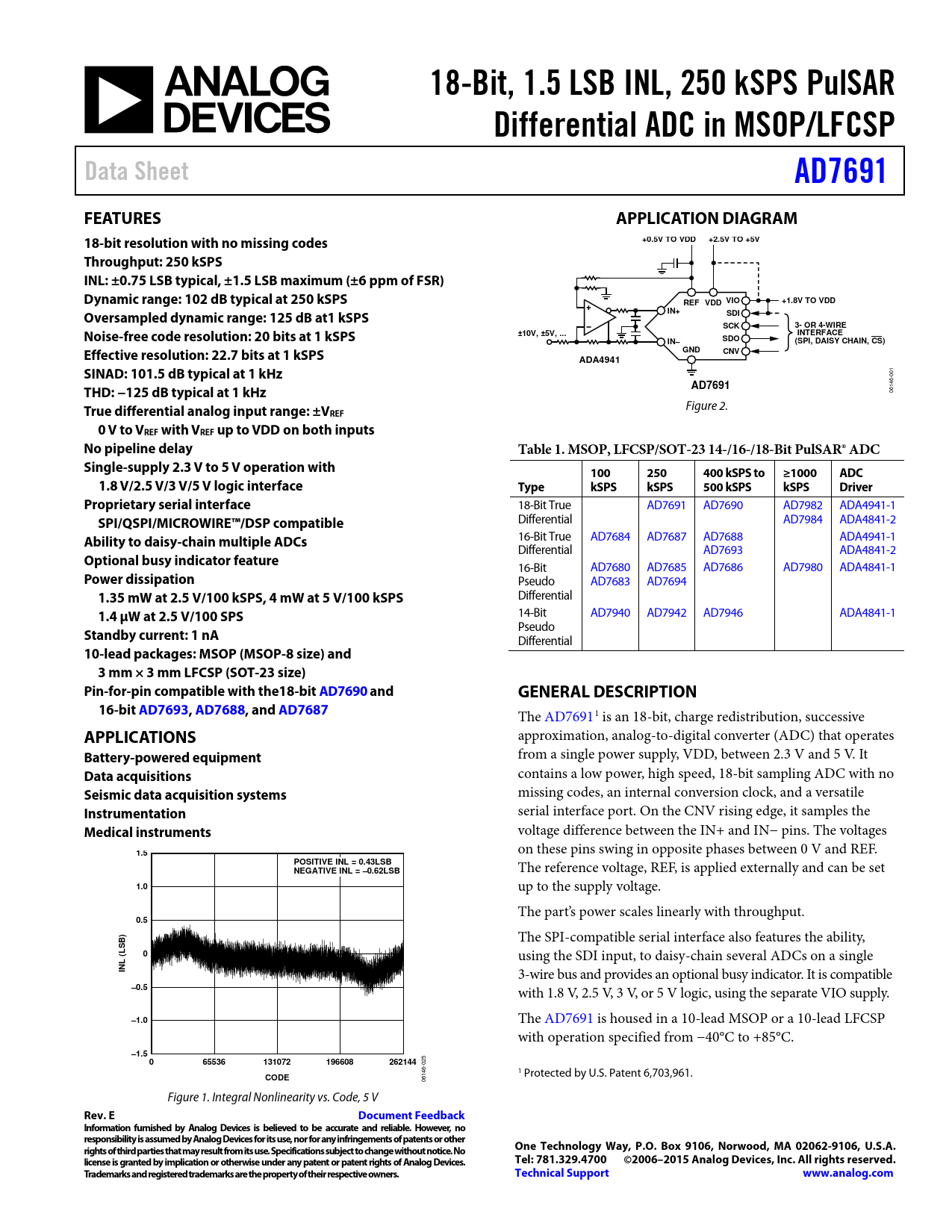

18-Bit, 1.5 LSB INL, 250 kSPS PulSAR Differential ADC in MSOP/LFCSP Data Sheet AD7691 FEATURES APPLICATION DIAGRAM 18-bit resolution with no missing codes +0.5V TO VDD +2.5V TO +5V Throughput: 250 kSPS INL: ±0.75 LSB typical, ±1.5 LSB maximum (±6 ppm of FSR) Dynamic range: 102 dB typical at 250 kSPS REF VDD VIO +1.8V TO VDD Oversampled dynamic range: 125 dB at1 kSPS IN+ SDI SCK 3- OR 4-WIRE Noise-free code resolution: 20 bits at 1 kSPS ±10V, ±5V, ... INTERFACE IN– SDO (SPI, DAISY CHAIN, CS) Effective resolution: 22.7 bits at 1 kSPS GND CNV ADA4941 SINAD: 101.5 dB typical at 1 kHz
001
THD: −125 dB typical at 1 kHz AD7691
06146-
True differential analog input range: ±V
Figure 2.
REF 0 V to VREF with VREF up to VDD on both inputs No pipeline delay Table 1. MSOP, LFCSP/SOT-23 14-/16-/18-Bit PulSAR® ADC Single-supply 2.3 V to 5 V operation with 100 250 400 kSPS to ≥1000 ADC 1.8 V/2.5 V/3 V/5 V logic interface Type kSPS kSPS 500 kSPS kSPS Driver Proprietary serial interface
18-Bit True AD7691 AD7690 AD7982 ADA4941-1
SPI/QSPI/MICROWIRE™/DSP compatible
Differential AD7984 ADA4841-2
Ability to daisy-chain multiple ADCs
16-Bit True AD7684 AD7687 AD7688 ADA4941-1 Differential AD7693 ADA4841-2
Optional busy indicator feature
16-Bit AD7680 AD7685 AD7686 AD7980 ADA4841-1
Power dissipation
Pseudo AD7683 AD7694
1.35 mW at 2.5 V/100 kSPS, 4 mW at 5 V/100 kSPS
Differential
1.4 µW at 2.5 V/100 SPS
14-Bit AD7940 AD7942 AD7946 ADA4841-1 Pseudo
Standby current: 1 nA
Differential
10-lead packages: MSOP (MSOP-8 size) and 3 mm × 3 mm LFCSP (SOT-23 size) Pin-for-pin compatible with the18-bit AD7690 a nd GENERAL DESCRIPTION 16-bit AD7693, AD7688, and AD7687
The AD76911 is an 18-bit, charge redistribution, successive
APPLICATIONS
approximation, analog-to-digital converter (ADC) that operates
Battery-powered equipment
from a single power supply, VDD, between 2.3 V and 5 V. It
Data acquisitions
contains a low power, high speed, 18-bit sampling ADC with no
Seismic data acquisition systems
missing codes, an internal conversion clock, and a versatile
Instrumentation
serial interface port. On the CNV rising edge, it samples the
Medical instruments
voltage difference between the IN+ and IN− pins. The voltages
1.5
on these pins swing in opposite phases between 0 V and REF.
POSITIVE INL = 0.43LSB NEGATIVE INL = –0.62LSB
The reference voltage, REF, is applied externally and can be set
1.0
up to the supply voltage. The part’s power scales linearly with throughput.
0.5 ) B
The SPI-compatible serial interface also features the ability,
LS 0 L (
using the SDI input, to daisy-chain several ADCs on a single
IN
3-wire bus and provides an optional busy indicator. It is compatible
–0.5
with 1.8 V, 2.5 V, 3 V, or 5 V logic, using the separate VIO supply.
–1.0
The AD7691 is housed in a 10-lead MSOP or a 10-lead LFCSP with operation specified from −40°C to +85°C.
–1.5 0 65536 131072 196608 262144
025 1 Protected by U.S. Patent 6,703,961.
CODE
06146- Figure 1. Integral Nonlinearity vs. Code, 5 V
