Dual Channel 8-Bit. Resolution CMOS ADC. AD9281. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet AD9281 Analog Devices, Revision: F

Model Line for this Datasheet

Text Version of Document

a

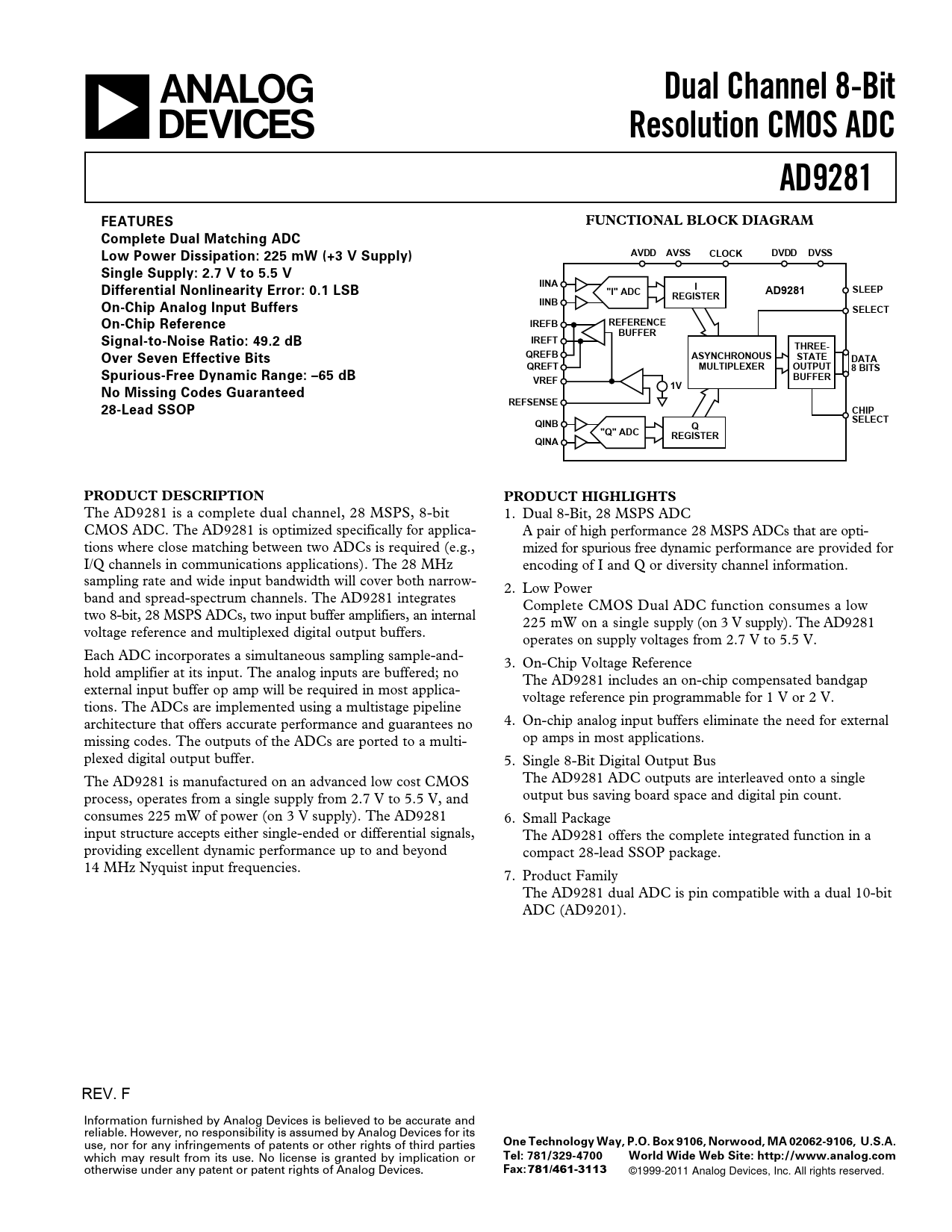

Dual Channel 8-Bit Resolution CMOS ADC AD9281 FEATURES FUNCTIONAL BLOCK DIAGRAM Complete Dual Matching ADC Low Power Dissipation: 225 mW (+3 V Supply) AVDD AVSS CLOCK DVDD DVSS Single Supply: 2.7 V to 5.5 V IINA Differential Nonlinearity Error: 0.1 LSB "I" ADC I AD9281 SLEEP REGISTER On-Chip Analog Input Buffers IINB SELECT On-Chip Reference IREFB REFERENCE BUFFER Signal-to-Noise Ratio: 49.2 dB IREFT THREE- Over Seven Effective Bits QREFB ASYNCHRONOUS STATE DATA QREFT MULTIPLEXER OUTPUT 8 BITS Spurious-Free Dynamic Range: –65 dB VREF BUFFER 1V No Missing Codes Guaranteed REFSENSE 28-Lead SSOP CHIP QINB SELECT "Q" ADC Q QINA REGISTER PRODUCT DESCRIPTION PRODUCT HIGHLIGHTS
The AD9281 is a complete dual channel, 28 MSPS, 8-bit 1. Dual 8-Bit, 28 MSPS ADC CMOS ADC. The AD9281 is optimized specifically for applica- A pair of high performance 28 MSPS ADCs that are opti- tions where close matching between two ADCs is required (e.g., mized for spurious free dynamic performance are provided for I/Q channels in communications applications). The 28 MHz encoding of I and Q or diversity channel information. sampling rate and wide input bandwidth will cover both narrow- 2. Low Power band and spread-spectrum channels. The AD9281 integrates Complete CMOS Dual ADC function consumes a low two 8-bit, 28 MSPS ADCs, two input buffer amplifiers, an internal 225 mW on a single supply (on 3 V supply). The AD9281 voltage reference and multiplexed digital output buffers. operates on supply voltages from 2.7 V to 5.5 V. Each ADC incorporates a simultaneous sampling sample-and- 3. On-Chip Voltage Reference hold amplifier at its input. The analog inputs are buffered; no The AD9281 includes an on-chip compensated bandgap external input buffer op amp will be required in most applica- voltage reference pin programmable for 1 V or 2 V. tions. The ADCs are implemented using a multistage pipeline architecture that offers accurate performance and guarantees no 4. On-chip analog input buffers eliminate the need for external missing codes. The outputs of the ADCs are ported to a multi- op amps in most applications. plexed digital output buffer. 5. Single 8-Bit Digital Output Bus The AD9281 is manufactured on an advanced low cost CMOS The AD9281 ADC outputs are interleaved onto a single process, operates from a single supply from 2.7 V to 5.5 V, and output bus saving board space and digital pin count. consumes 225 mW of power (on 3 V supply). The AD9281 6. Small Package input structure accepts either single-ended or differential signals, The AD9281 offers the complete integrated function in a providing excellent dynamic performance up to and beyond compact 28-lead SSOP package. 14 MHz Nyquist input frequencies. 7. Product Family The AD9281 dual ADC is pin compatible with a dual 10-bit ADC (AD9201). REV. F Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its
