Datasheet HMC7447 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | E-Band Detector, 71 - 86 GHz |
| Pages / Page | 10 / 1 — HMC7447. E-BAND DETECTOR. 71 - 86 GHz. Typical Applications. Features. … |
| File Format / Size | PDF / 439 Kb |
| Document Language | English |

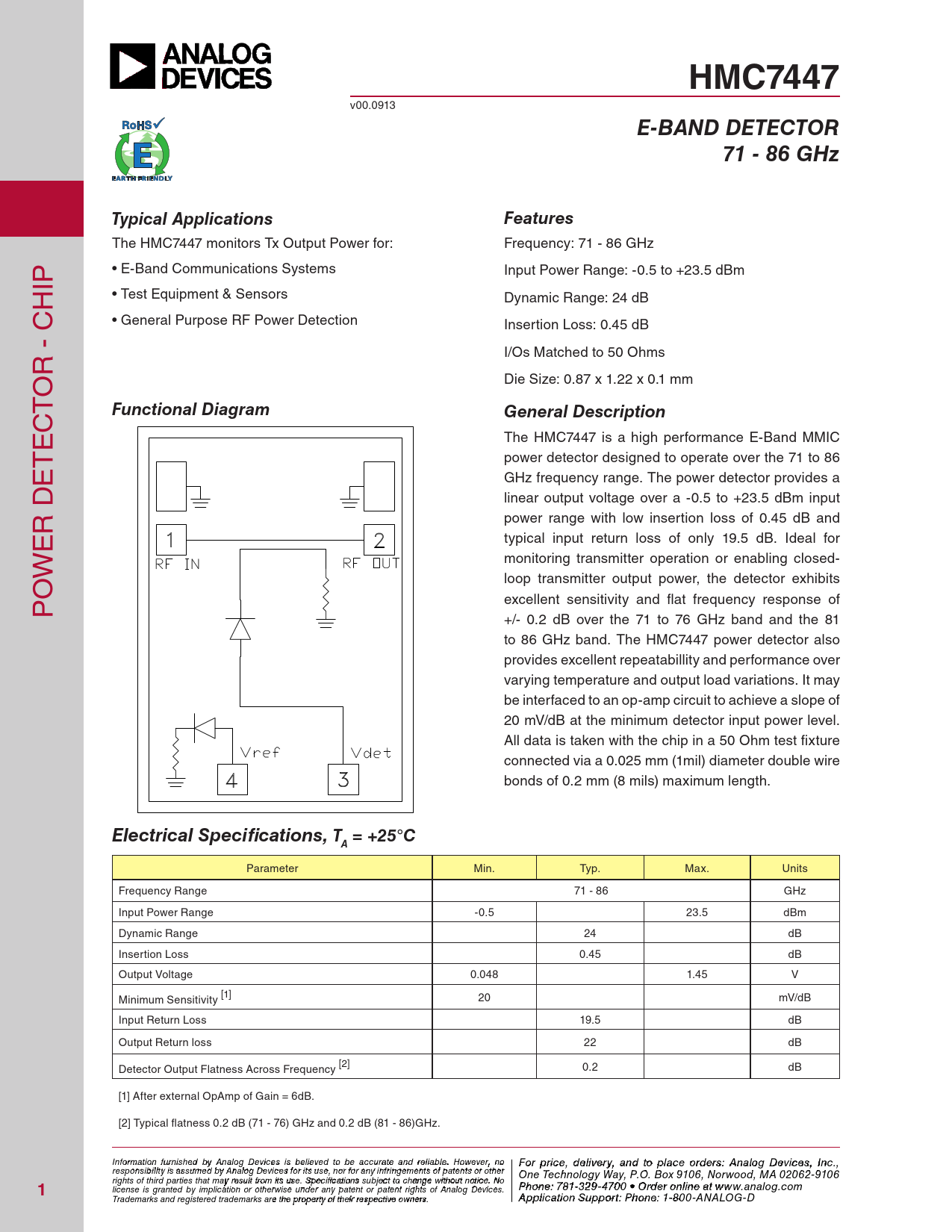

HMC7447. E-BAND DETECTOR. 71 - 86 GHz. Typical Applications. Features. Functional Diagram. General Description
Text Version of Document
HMC7447
v00.0913
E-BAND DETECTOR 71 - 86 GHz Typical Applications Features
The HMC7447 monitors Tx Output Power for: Frequency: 71 - 86 GHz IP • E-Band Communications Systems Input Power Range: -0.5 to +23.5 dBm H • Test Equipment & Sensors Dynamic Range: 24 dB • General Purpose RF Power Detection Insertion Loss: 0.45 dB R - C I/Os Matched to 50 Ohms O Die Size: 0.87 x 1.22 x 0.1 mm T C
Functional Diagram General Description
E The HMC7447 is a high performance E-Band MMIC T power detector designed to operate over the 71 to 86 E GHz frequency range. The power detector provides a linear output voltage over a -0.5 to +23.5 dBm input R D power range with low insertion loss of 0.45 dB and E typical input return loss of only 19.5 dB. Ideal for W monitoring transmitter operation or enabling closed- O loop transmitter output power, the detector exhibits P excellent sensitivity and flat frequency response of +/- 0.2 dB over the 71 to 76 GHz band and the 81 to 86 GHz band. The HMC7447 power detector also provides excellent repeatabillity and performance over varying temperature and output load variations. It may be interfaced to an op-amp circuit to achieve a slope of 20 mV/dB at the minimum detector input power level. All data is taken with the chip in a 50 Ohm test fixture connected via a 0.025 mm (1mil) diameter double wire bonds of 0.2 mm (8 mils) maximum length.
Electrical Specifications, T = +25°C A
Parameter Min. Typ. Max. Units Frequency Range 71 - 86 GHz Input Power Range -0.5 23.5 dBm Dynamic Range 24 dB Insertion Loss 0.45 dB Output Voltage 0.048 1.45 V Minimum Sensitivity [1] 20 mV/dB Input Return Loss 19.5 dB Output Return loss 22 dB Detector Output Flatness Across Frequency [2] 0.2 dB [1] After external OpAmp of Gain = 6dB. [2] Typical flatness 0.2 dB (71 - 76) GHz and 0.2 dB (81 - 86)GHz. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 p o lica rti a o p n S p u s p @ po h rt itt : P ite ho . n c e om : 1-800-ANALOG-D
