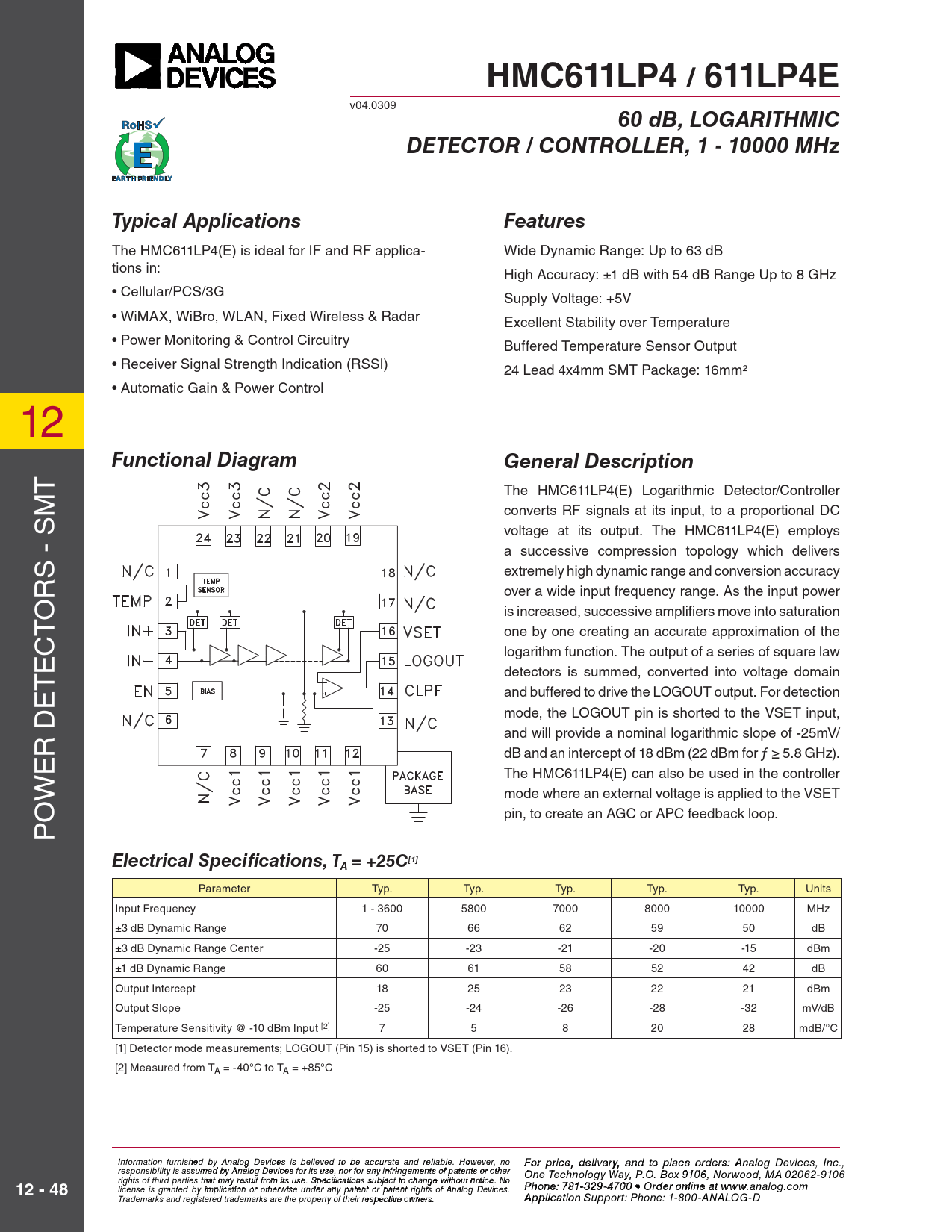

HMC611LP4 / 611LP4E
v04.0309
60 dB, LOGARITHMIC DETECTOR / CONTROLLER, 1 - 10000 MHz Typical Applications Features
The HMC611LP4(E) is ideal for IF and RF applica- Wide Dynamic Range: Up to 63 dB tions in: High Accuracy: ±1 dB with 54 dB Range Up to 8 GHz • Cellular/PCS/3G Supply Voltage: +5V • WiMAX, WiBro, WLAN, Fixed Wireless & Radar Excellent Stability over Temperature • Power Monitoring & Control Circuitry Buffered Temperature Sensor Output • Receiver Signal Strength Indication (RSSI) 24 Lead 4x4mm SMT Package: 16mm2 • Automatic Gain & Power Control 12
Functional Diagram General Description
T The HMC611LP4(E) Logarithmic Detector/Controller converts RF signals at its input, to a proportional DC voltage at its output. The HMC611LP4(E) employs a successive compression topology which delivers S - SM extremely high dynamic range and conversion accuracy R over a wide input frequency range. As the input power O is increased, successive amplifi ers move into saturation T one by one creating an accurate approximation of the C logarithm function. The output of a series of square law E T detectors is summed, converted into voltage domain E and buffered to drive the LOGOUT output. For detection mode, the LOGOUT pin is shorted to the VSET input, and will provide a nominal logarithmic slope of -25mV/ R D dB and an intercept of 18 dBm (22 dBm for ƒ ≥ 5.8 GHz). E The HMC611LP4(E) can also be used in the controller W mode where an external voltage is applied to the VSET O pin, to create an AGC or APC feedback loop. P
Electrical Specifi cations, TA = +25C[1]
Parameter Typ. Typ. Typ. Typ. Typ. Units Input Frequency 1 - 3600 5800 7000 8000 10000 MHz ±3 dB Dynamic Range 70 66 62 59 50 dB ±3 dB Dynamic Range Center -25 -23 -21 -20 -15 dBm ±1 dB Dynamic Range 60 61 58 52 42 dB Output Intercept 18 25 23 22 21 dBm Output Slope -25 -24 -26 -28 -32 mV/dB Temperature Sensitivity @ -10 dBm Input [2] 7 5 8 20 28 mdB/°C [1] Detector mode measurements; LOGOUT (Pin 15) is shorted to VSET (Pin 16). [2] Measured from TA = -40°C to TA = +85°C Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373
12 - 48
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
