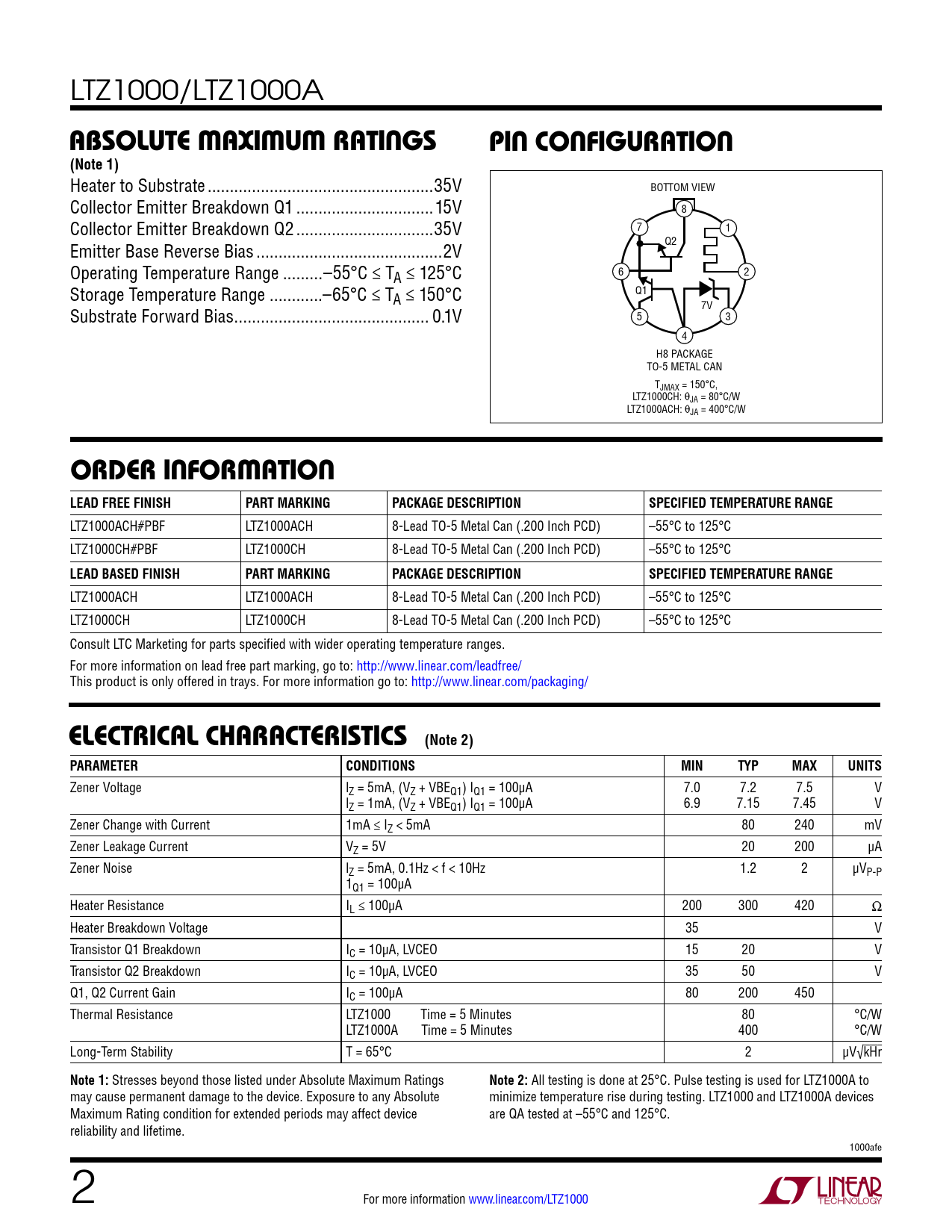

LTZ1000/LTZ1000A
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Heater to Substrate ...35V BOTTOM VIEW Collector Emitter Breakdown Q1 ...15V 8 Collector Emitter Breakdown Q2 ...35V 7 1 Emitter Base Reverse Bias ..2V Q2 Operating Temperature Range ...–55°C ≤ TA ≤ 125°C 6 2 Storage Temperature Range ..–65°C ≤ TA ≤ 150°C Q1 Substrate Forward Bias .. 0.1V 7V 5 3 4 H8 PACKAGE TO-5 METAL CAN TJMAX = 150°C, LTZ1000CH: θJA = 80°C/W LTZ1000ACH: θJA = 400°C/W
orDer inForMaTion LEAD FREE FINISH PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTZ1000ACH#PBF LTZ1000ACH 8-Lead TO-5 Metal Can (.200 Inch PCD) –55°C to 125°C LTZ1000CH#PBF LTZ1000CH 8-Lead TO-5 Metal Can (.200 Inch PCD) –55°C to 125°C
LEAD BASED FINISH PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTZ1000ACH LTZ1000ACH 8-Lead TO-5 Metal Can (.200 Inch PCD) –55°C to 125°C LTZ1000CH LTZ1000CH 8-Lead TO-5 Metal Can (.200 Inch PCD) –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
elecTrical characTerisTics (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Zener Voltage lZ = 5mA, (VZ + VBEQ1) IQ1 = 100µA 7.0 7.2 7.5 V lZ = 1mA, (VZ + VBEQ1) IQ1 = 100µA 6.9 7.15 7.45 V Zener Change with Current 1mA ≤ IZ < 5mA 80 240 mV Zener Leakage Current VZ = 5V 20 200 µA Zener Noise lZ = 5mA, 0.1Hz < f < 10Hz 1.2 2 µVP-P 1Q1 = 100µA Heater Resistance IL ≤ 100µA 200 300 420 Ω Heater Breakdown Voltage 35 V Transistor Q1 Breakdown IC = 10µA, LVCEO 15 20 V Transistor Q2 Breakdown IC = 10µA, LVCEO 35 50 V Q1, Q2 Current Gain IC = 100µA 80 200 450 Thermal Resistance LTZ1000 Time = 5 Minutes 80 °C/W LTZ1000A Time = 5 Minutes 400 °C/W Long-Term Stability T = 65°C 2 µV√kHr
