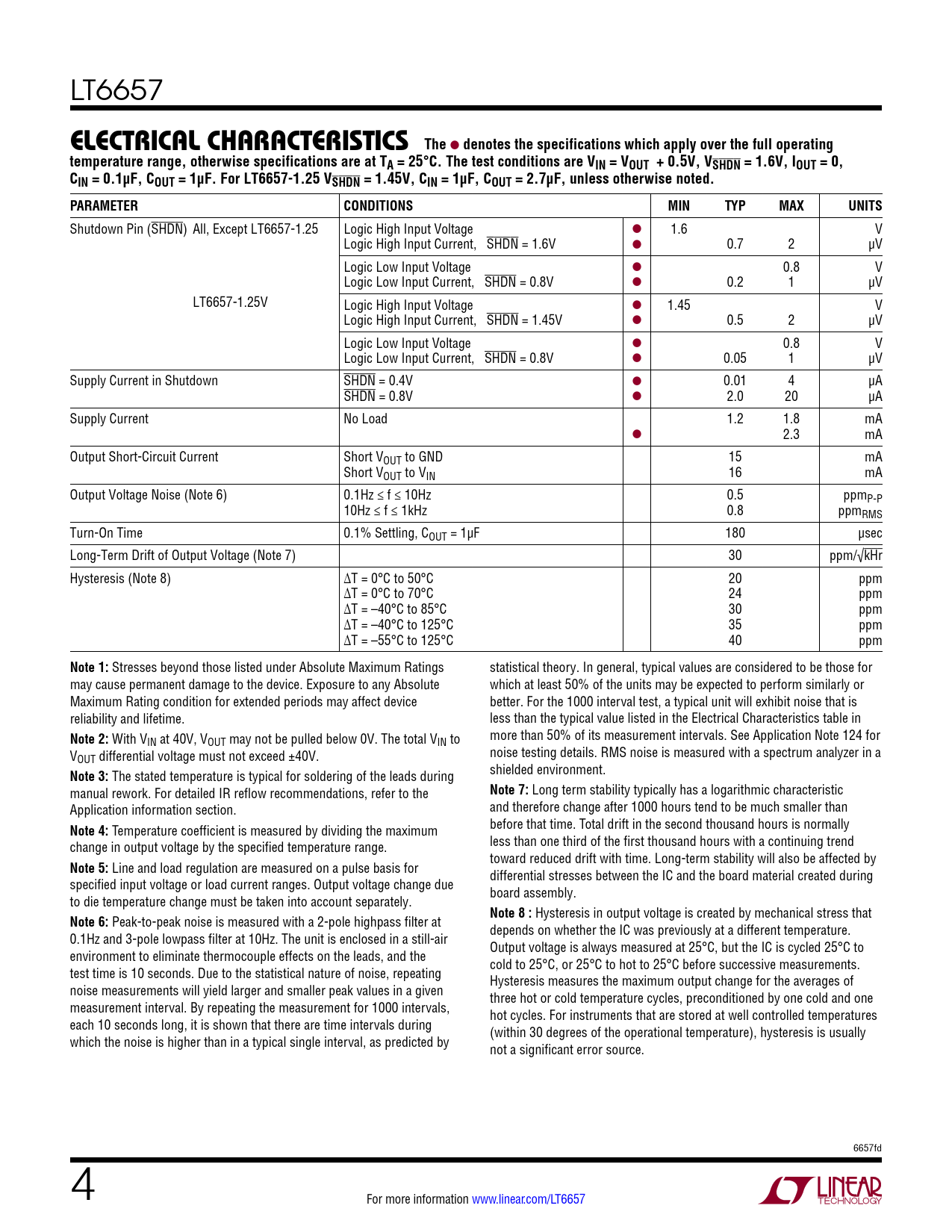

elecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT6657AHMS8-1.25#PBF LT6657AHMS8-1.25#TRPBF LT6657AHMS8-2.5#PBF LT6657AHMS8-2.5#TRPBF LT6657AHMS8-3#PBF LT6657AHMS8-3#TRPBF LT6657AHMS8-4.096#PBF LT6657AHMS8-4.096#TRPBF LT6657AHMS8-5#PBF LT6657AHMS8-5#TRPBF LT6657BHMS8-1.25#PBF LT6657BHMS8-1.25#TRPBF LT6657BHMS8-2.5#PBF LT6657BHMS8-2.5#TRPBF LT6657BHMS8-3#PBF LT6657BHMS8-3#TRPBF LT6657BHMS8-4.096#PBF LT6657BHMS8-4.096#TRPBF LT6657BHMS8-5#PBF LT6657BHMS8-5#TRPBF
Text Version of Document
LT6657
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. The test conditions are VIN = VOUT + 0.5V, VSHDN = 1.6V, IOUT = 0, CIN = 0.1µF, COUT = 1µF. For LT6657-1.25 VSHDN = 1.45V, CIN = 1µF, COUT = 2.7µF, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Shutdown Pin (SHDN) All, Except LT6657-1.25 Logic High Input Voltage l 1.6 V Logic High Input Current, SHDN = 1.6V l 0.7 2 µV Logic Low Input Voltage l 0.8 V Logic Low Input Current, SHDN = 0.8V l 0.2 1 µV LT6657-1.25V Logic High Input Voltage l 1.45 V Logic High Input Current, SHDN = 1.45V l 0.5 2 µV Logic Low Input Voltage l 0.8 V Logic Low Input Current, SHDN = 0.8V l 0.05 1 µV Supply Current in Shutdown SHDN = 0.4V l 0.01 4 µA SHDN = 0.8V l 2.0 20 µA Supply Current No Load 1.2 1.8 mA l 2.3 mA Output Short-Circuit Current Short VOUT to GND 15 mA Short VOUT to VIN 16 mA Output Voltage Noise (Note 6) 0.1Hz ≤ f ≤ 10Hz 0.5 ppmP-P 10Hz ≤ f ≤ 1kHz 0.8 ppmRMS Turn-On Time 0.1% Settling, COUT = 1µF 180 µsec Long-Term Drift of Output Voltage (Note 7) 30 ppm/√kHr Hysteresis (Note 8) ΔT = 0°C to 50°C 20 ppm ΔT = 0°C to 70°C 24 ppm ΔT = –40°C to 85°C 30 ppm ΔT = –40°C to 125°C 35 ppm ΔT = –55°C to 125°C 40 ppm
