Datasheet LT1252 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Low Cost Video Amplifier |
| Pages / Page | 8 / 2 — ABSOLUTE. AXI U. R TI GS. PACKAGE/ORDER I FOR ATIO. ELECTRICAL … |
| File Format / Size | PDF / 200 Kb |
| Document Language | English |

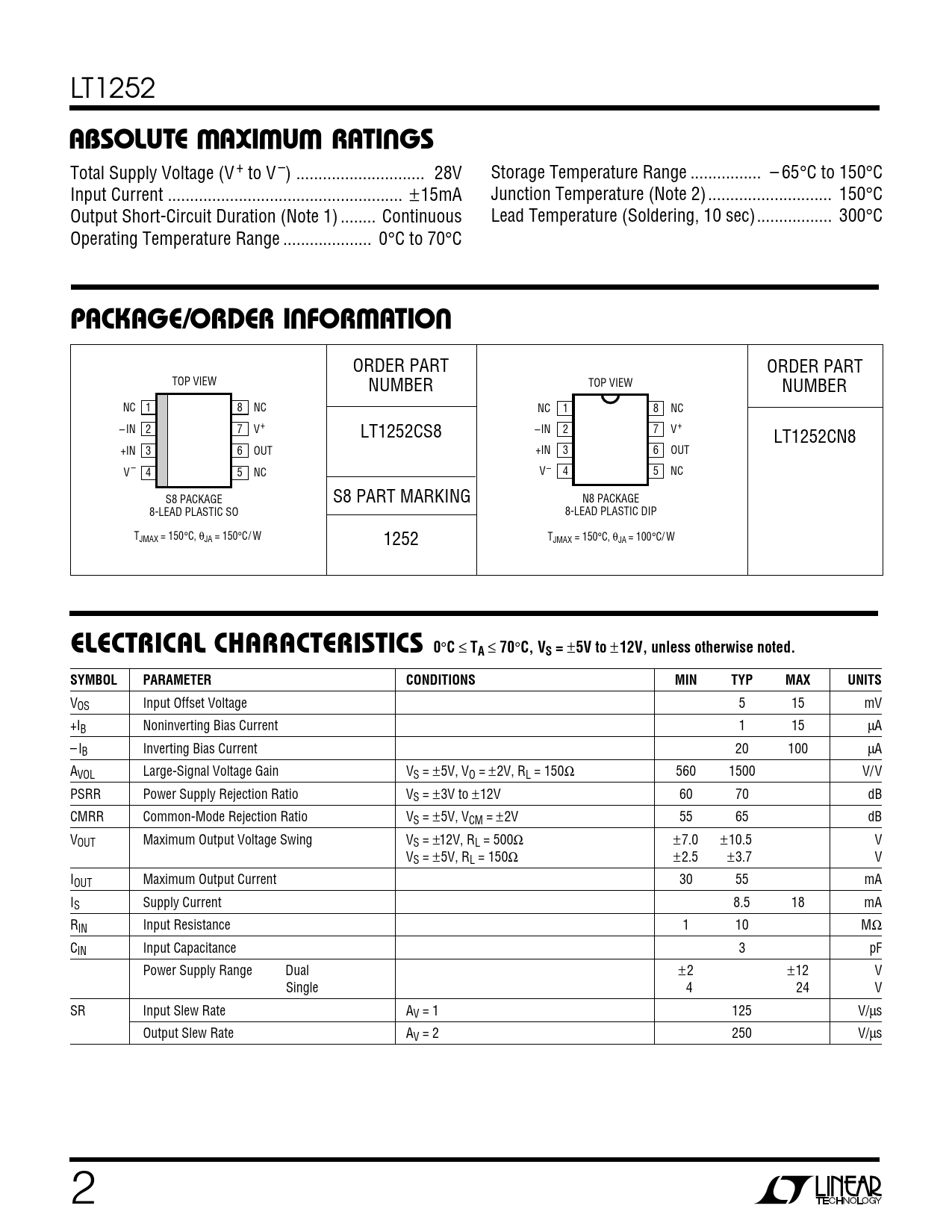

ABSOLUTE. AXI U. R TI GS. PACKAGE/ORDER I FOR ATIO. ELECTRICAL CHARACTERISTICS 0. C, VS =. 5V to. 12V, unless otherwise noted. SYMBOL
Model Line for this Datasheet
Text Version of Document
LT1252
W W W U ABSOLUTE AXI U A R TI GS
Total Supply Voltage (V + to V –) ... 28V Storage Temperature Range .. – 65°C to 150°C Input Current ... ±15mA Junction Temperature (Note 2).. 150°C Output Short-Circuit Duration (Note 1) .. Continuous Lead Temperature (Soldering, 10 sec)... 300°C Operating Temperature Range .. 0°C to 70°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART ORDER PART TOP VIEW NUMBER TOP VIEW NUMBER NC 1 8 NC NC 1 8 NC – IN 2 7 V+ LT1252CS8 –IN 2 7 V+ LT1252CN8 +IN 3 6 OUT +IN 3 6 OUT – V – 4 5 NC V 4 5 NC S8 PACKAGE S8 PART MARKING N8 PACKAGE 8-LEAD PLASTIC SO 8-LEAD PLASTIC DIP TJMAX = 150°C, θJA = 150°C/ W 1252 TJMAX = 150°C, θJA = 100°C/ W
ELECTRICAL CHARACTERISTICS 0
°
C
≤
TA
≤
70
°
C, VS =
±
5V to
±
12V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 5 15 mV +IB Noninverting Bias Current 1 15 µA – IB Inverting Bias Current 20 100 µA AVOL Large-Signal Voltage Gain VS = ±5V, VO = ±2V, RL = 150Ω 560 1500 V/V PSRR Power Supply Rejection Ratio VS = ±3V to ±12V 60 70 dB CMRR Common-Mode Rejection Ratio VS = ±5V, VCM = ±2V 55 65 dB VOUT Maximum Output Voltage Swing VS = ±12V, RL = 500Ω ±7.0 ±10.5 V VS = ±5V, RL = 150Ω ±2.5 ±3.7 V IOUT Maximum Output Current 30 55 mA IS Supply Current 8.5 18 mA RIN Input Resistance 1 10 MΩ CIN Input Capacitance 3 pF Power Supply Range Dual ±2 ±12 V Single 4 24 V SR Input Slew Rate AV = 1 125 V/µs Output Slew Rate AV = 2 250 V/µs 2
