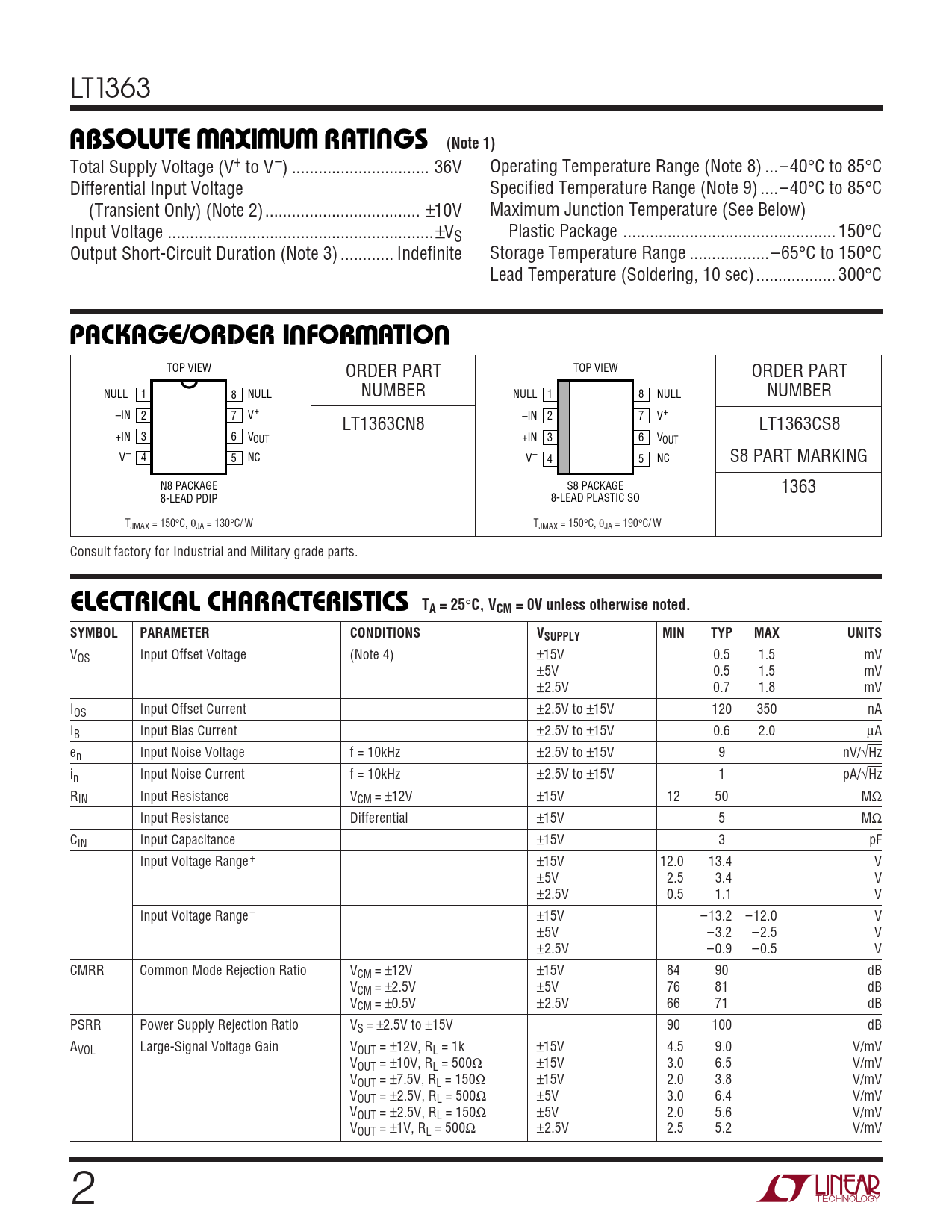

LT1363
W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ... 36V Operating Temperature Range (Note 8) ...–40°C to 85°C Differential Input Voltage Specified Temperature Range (Note 9) ..–40°C to 85°C (Transient Only) (Note 2)... ±10V Maximum Junction Temperature (See Below) Input Voltage .. ±VS Plastic Package .. 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range ..–65°C to 150°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER INFORMATION
TOP VIEW ORDER PART TOP VIEW ORDER PART NULL 1 8 NULL NUMBER NULL 1 8 NULL NUMBER –IN 2 7 V+ LT1363CN8 –IN 2 7 V+ LT1363CS8 +IN 3 6 VOUT +IN 3 6 VOUT V– 4 5 NC V– 4 5 NC S8 PART MARKING N8 PACKAGE S8 PACKAGE 1363 8-LEAD PDIP 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 130°C/ W JMAX = 150°C, θJA = 190°C/ W Consult factory for Industrial and Military grade parts.
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V 0.5 1.5 mV ±5V 0.5 1.5 mV ±2.5V 0.7 1.8 mV IOS Input Offset Current ±2.5V to ±15V 120 350 nA IB Input Bias Current ±2.5V to ±15V 0.6 2.0 µA en Input Noise Voltage f = 10kHz ±2.5V to ±15V 9 nV/√Hz in Input Noise Current f = 10kHz ±2.5V to ±15V 1 pA/√Hz RIN Input Resistance VCM = ±12V ±15V 12 50 MΩ Input Resistance Differential ±15V 5 MΩ CIN Input Capacitance ±15V 3 pF Input Voltage Range+ ±15V 12.0 13.4 V ±5V 2.5 3.4 V ±2.5V 0.5 1.1 V Input Voltage Range– ±15V –13.2 –12.0 V ±5V –3.2 – 2.5 V ±2.5V –0.9 – 0.5 V CMRR Common Mode Rejection Ratio VCM = ±12V ±15V 84 90 dB VCM = ±2.5V ±5V 76 81 dB VCM = ±0.5V ±2.5V 66 71 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V 90 100 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V 4.5 9.0 V/mV VOUT = ±10V, RL = 500Ω ±15V 3.0 6.5 V/mV VOUT = ±7.5V, RL = 150Ω ±15V 2.0 3.8 V/mV VOUT = ±2.5V, RL = 500Ω ±5V 3.0 6.4 V/mV VOUT = ±2.5V, RL = 150Ω ±5V 2.0 5.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V 2.5 5.2 V/mV 2
