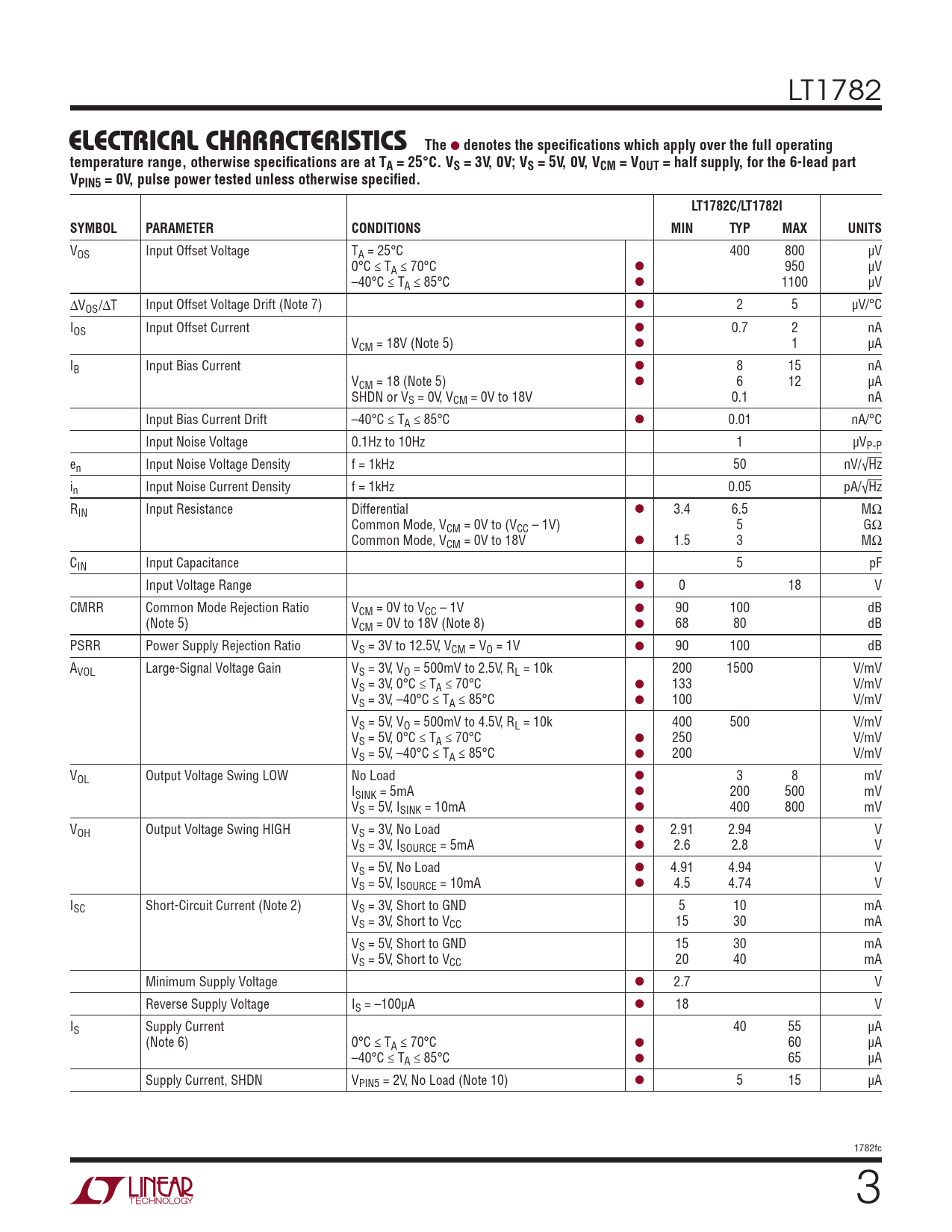

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT1782
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = 3V, 0V; VS = 5V, 0V, VCM = VOUT = half supply, for the 6-lead part VPIN5 = 0V, pulse power tested unless otherwise specified. LT1782C/LT1782I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage TA = 25°C 400 800 µV 0°C ≤ TA ≤ 70°C l 950 µV –40°C ≤ TA ≤ 85°C l 1100 µV ∆VOS/∆T Input Offset Voltage Drift (Note 7) l 2 5 µV/°C IOS Input Offset Current l 0.7 2 nA VCM = 18V (Note 5) l 1 µA IB Input Bias Current l 8 15 nA VCM = 18 (Note 5) l 6 12 µA SHDN or VS = 0V, VCM = 0V to 18V 0.1 nA Input Bias Current Drift –40°C ≤ TA ≤ 85°C l 0.01 nA/°C Input Noise Voltage 0.1Hz to 10Hz 1 µVP-P en Input Noise Voltage Density f = 1kHz 50 nV/√Hz in Input Noise Current Density f = 1kHz 0.05 pA/√Hz RIN Input Resistance Differential l 3.4 6.5 MΩ Common Mode, VCM = 0V to (VCC – 1V) 5 GΩ Common Mode, VCM = 0V to 18V l 1.5 3 MΩ CIN Input Capacitance 5 pF Input Voltage Range l 0 18 V CMRR Common Mode Rejection Ratio VCM = 0V to VCC – 1V l 90 100 dB (Note 5) VCM = 0V to 18V (Note 8) l 68 80 dB PSRR Power Supply Rejection Ratio VS = 3V to 12.5V, VCM = VO = 1V l 90 100 dB AVOL Large-Signal Voltage Gain VS = 3V, VO = 500mV to 2.5V, RL = 10k 200 1500 V/mV VS = 3V, 0°C ≤ TA ≤ 70°C l 133 V/mV VS = 3V, –40°C ≤ TA ≤ 85°C l 100 V/mV VS = 5V, VO = 500mV to 4.5V, RL = 10k 400 500 V/mV VS = 5V, 0°C ≤ TA ≤ 70°C l 250 V/mV VS = 5V, –40°C ≤ TA ≤ 85°C l 200 V/mV VOL Output Voltage Swing LOW No Load l 3 8 mV ISINK = 5mA l 200 500 mV VS = 5V, ISINK = 10mA l 400 800 mV VOH Output Voltage Swing HIGH VS = 3V, No Load l 2.91 2.94 V VS = 3V, ISOURCE = 5mA l 2.6 2.8 V VS = 5V, No Load l 4.91 4.94 V VS = 5V, ISOURCE = 10mA l 4.5 4.74 V ISC Short-Circuit Current (Note 2) VS = 3V, Short to GND 5 10 mA VS = 3V, Short to VCC 15 30 mA VS = 5V, Short to GND 15 30 mA VS = 5V, Short to VCC 20 40 mA Minimum Supply Voltage l 2.7 V Reverse Supply Voltage IS = –100µA l 18 V IS Supply Current 40 55 µA (Note 6) 0°C ≤ TA ≤ 70°C l 60 µA –40°C ≤ TA ≤ 85°C l 65 µA Supply Current, SHDN VPIN5 = 2V, No Load (Note 10) l 5 15 µA 1782fc 3 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Typical Applications Package Description Revision History Typical Application Related Parts
