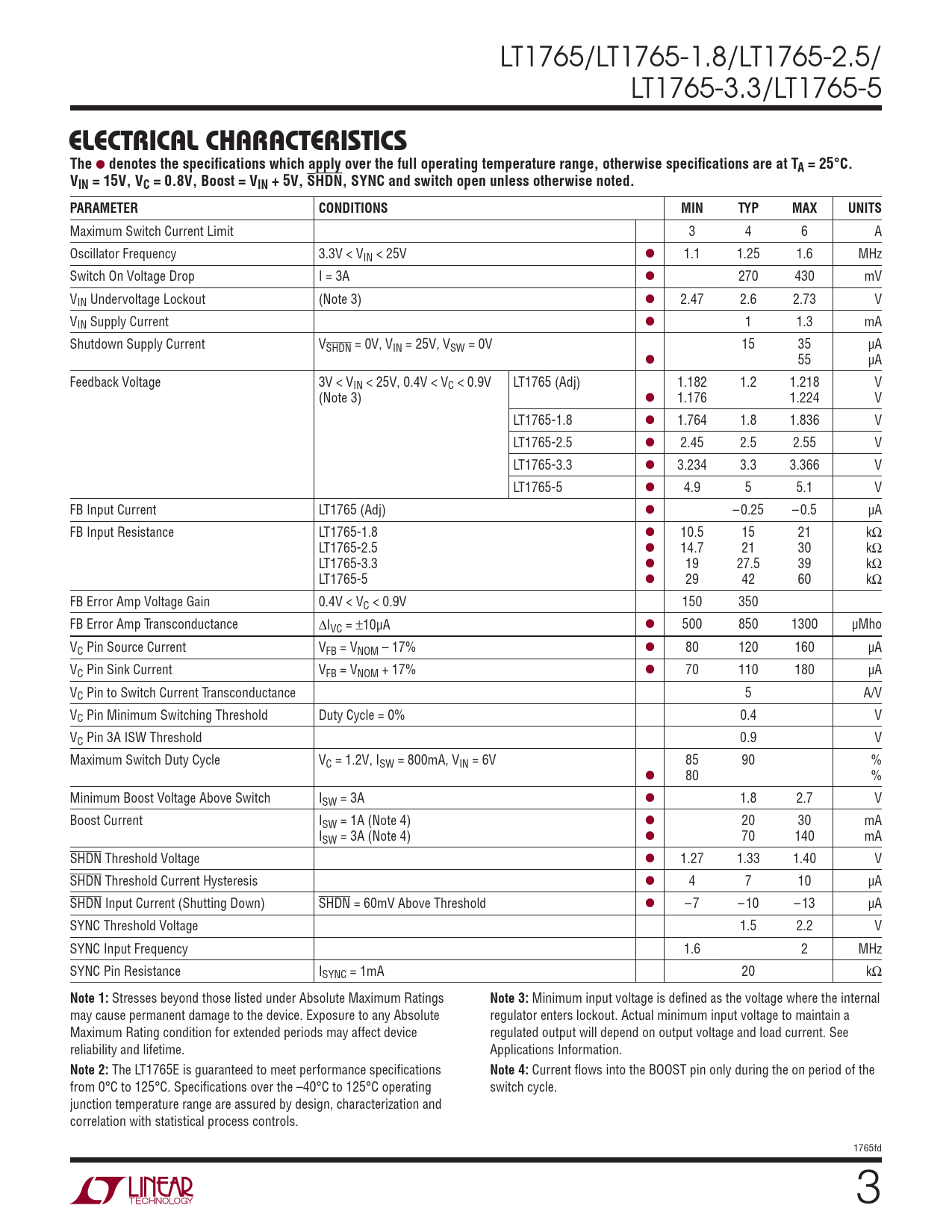

LT1765/LT1765-1.8/LT1765-2.5/ LT1765-3.3/LT1765-5
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 15V, VC = 0.8V, Boost = VIN + 5V, SHDN, SYNC and switch open unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Maximum Switch Current Limit 3 4 6 A Oscillator Frequency 3.3V < VIN < 25V l 1.1 1.25 1.6 MHz Switch On Voltage Drop I = 3A l 270 430 mV VIN Undervoltage Lockout (Note 3) l 2.47 2.6 2.73 V VIN Supply Current l 1 1.3 mA Shutdown Supply Current VSHDN = 0V, VIN = 25V, VSW = 0V 15 35 μA l 55 μA Feedback Voltage 3V < VIN < 25V, 0.4V < VC < 0.9V LT1765 (Adj) 1.182 1.2 1.218 V (Note 3) l 1.176 1.224 V LT1765-1.8 l 1.764 1.8 1.836 V LT1765-2.5 l 2.45 2.5 2.55 V LT1765-3.3 l 3.234 3.3 3.366 V LT1765-5 l 4.9 5 5.1 V FB Input Current LT1765 (Adj) l –0.25 –0.5 μA FB Input Resistance LT1765-1.8 l 10.5 15 21 kΩ LT1765-2.5 l 14.7 21 30 kΩ LT1765-3.3 l 19 27.5 39 kΩ LT1765-5 l 29 42 60 kΩ FB Error Amp Voltage Gain 0.4V < VC < 0.9V 150 350 FB Error Amp Transconductance ΔIVC = ±10μA l 500 850 1300 μMho VC Pin Source Current VFB = VNOM – 17% l 80 120 160 μA VC Pin Sink Current VFB = VNOM + 17% l 70 110 180 μA VC Pin to Switch Current Transconductance 5 A/V VC Pin Minimum Switching Threshold Duty Cycle = 0% 0.4 V VC Pin 3A ISW Threshold 0.9 V Maximum Switch Duty Cycle VC = 1.2V, ISW = 800mA, VIN = 6V 85 90 % l 80 % Minimum Boost Voltage Above Switch ISW = 3A l 1.8 2.7 V Boost Current ISW = 1A (Note 4) l 20 30 mA ISW = 3A (Note 4) l 70 140 mA SHDN Threshold Voltage l 1.27 1.33 1.40 V SHDN Threshold Current Hysteresis l 4 7 10 μA SHDN Input Current (Shutting Down) SHDN = 60mV Above Threshold l –7 –10 –13 μA SYNC Threshold Voltage 1.5 2.2 V SYNC Input Frequency 1.6 2 MHz SYNC Pin Resistance ISYNC = 1mA 20 kΩ
