LTC2353-16
INTERNAL REFERENCE CHARACTERISTICS The
l

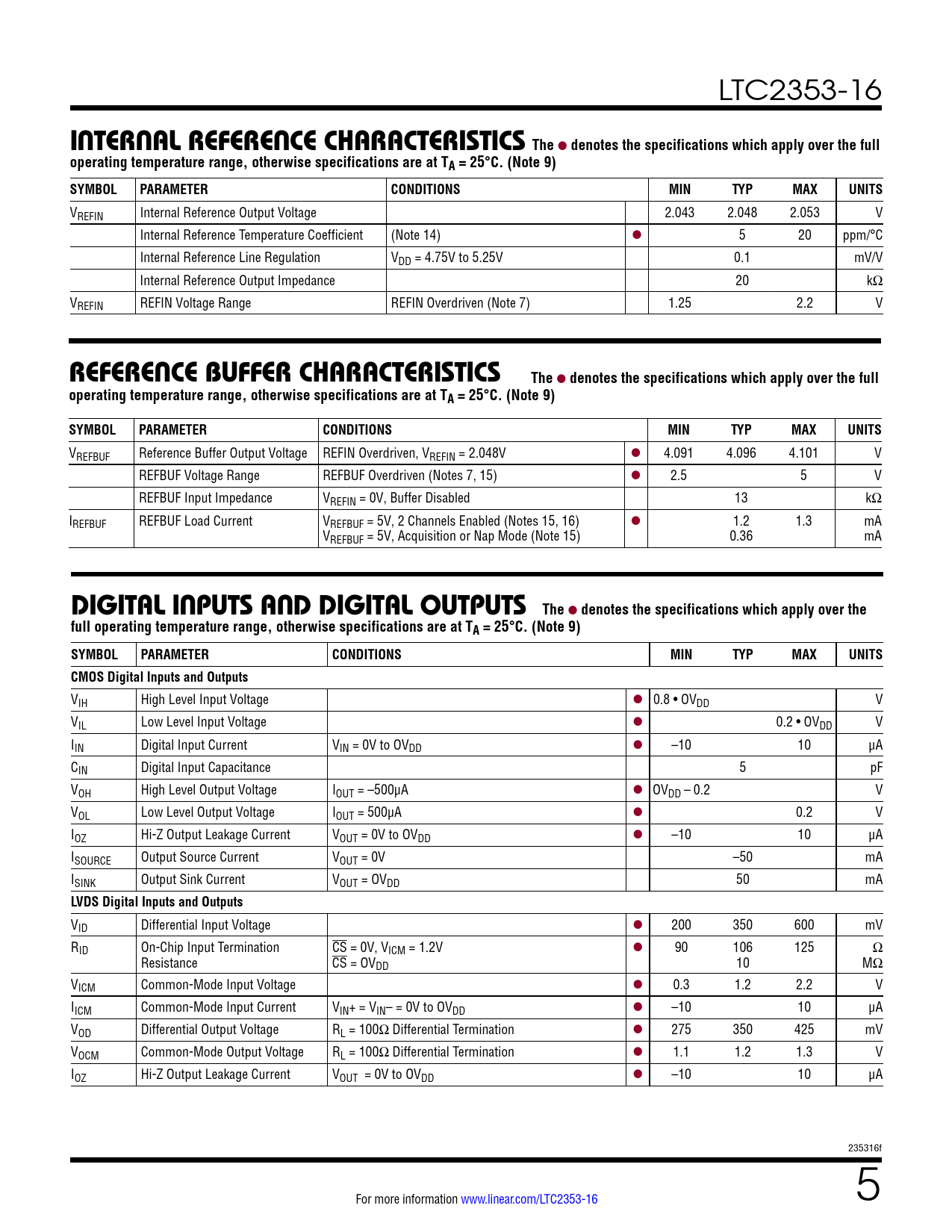

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VREFIN Internal Reference Output Voltage 2.043 2.048 2.053 V Internal Reference Temperature Coefficient (Note 14) l 5 20 ppm/°C Internal Reference Line Regulation VDD = 4.75V to 5.25V 0.1 mV/V Internal Reference Output Impedance 20 kΩ VREFIN REFIN Voltage Range REFIN Overdriven (Note 7) 1.25 2.2 V
REFERENCE BUFFER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VREFBUF Reference Buffer Output Voltage REFIN Overdriven, VREFIN = 2.048V l 4.091 4.096 4.101 V REFBUF Voltage Range REFBUF Overdriven (Notes 7, 15) l 2.5 5 V REFBUF Input Impedance VREFIN = 0V, Buffer Disabled 13 kΩ IREFBUF REFBUF Load Current VREFBUF = 5V, 2 Channels Enabled (Notes 15, 16) l 1.2 1.3 mA VREFBUF = 5V, Acquisition or Nap Mode (Note 15) 0.36 mA
DIGITAL INPUTS AND DIGITAL OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS CMOS Digital Inputs and Outputs
VIH High Level Input Voltage l 0.8 • OVDD V VIL Low Level Input Voltage l 0.2 • OVDD V IIN Digital Input Current VIN = 0V to OVDD l –10 10 μA CIN Digital Input Capacitance 5 pF VOH High Level Output Voltage IOUT = –500μA l OVDD – 0.2 V VOL Low Level Output Voltage IOUT = 500μA l 0.2 V IOZ Hi-Z Output Leakage Current VOUT = 0V to OVDD l –10 10 μA ISOURCE Output Source Current VOUT = 0V –50 mA ISINK Output Sink Current VOUT = OVDD 50 mA
LVDS Digital Inputs and Outputs
