Datasheet LT3091 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | –36V, 1.5A Negative Linear Regulator with Programmable Current Limit |
| Pages / Page | 40 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion |
| File Format / Size | PDF / 756 Kb |
| Document Language | English |
absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion
Model Line for this Datasheet
- LT3091EDE#PBF LT3091EDE#TRPBF LT3091EFE#PBF LT3091EFE#TRPBF LT3091ER#PBF LT3091ER#TRPBF LT3091ET7#PBF LT3091HDE#PBF LT3091HDE#TRPBF LT3091HFE#PBF LT3091HFE#TRPBF LT3091HR#PBF LT3091HR#TRPBF LT3091HT7#PBF LT3091IDE#PBF LT3091IDE#TRPBF LT3091IFE#PBF LT3091IFE#TRPBF LT3091IR#PBF LT3091IR#TRPBF LT3091IT7#PBF LT3091MPDE#PBF LT3091MPDE#TRPBF LT3091MPFE#PBF LT3091MPFE#TRPBF LT3091MPR#PBF LT3091MPR#TRPBF LT3091MPT7#PBF
Text Version of Document
LT3091

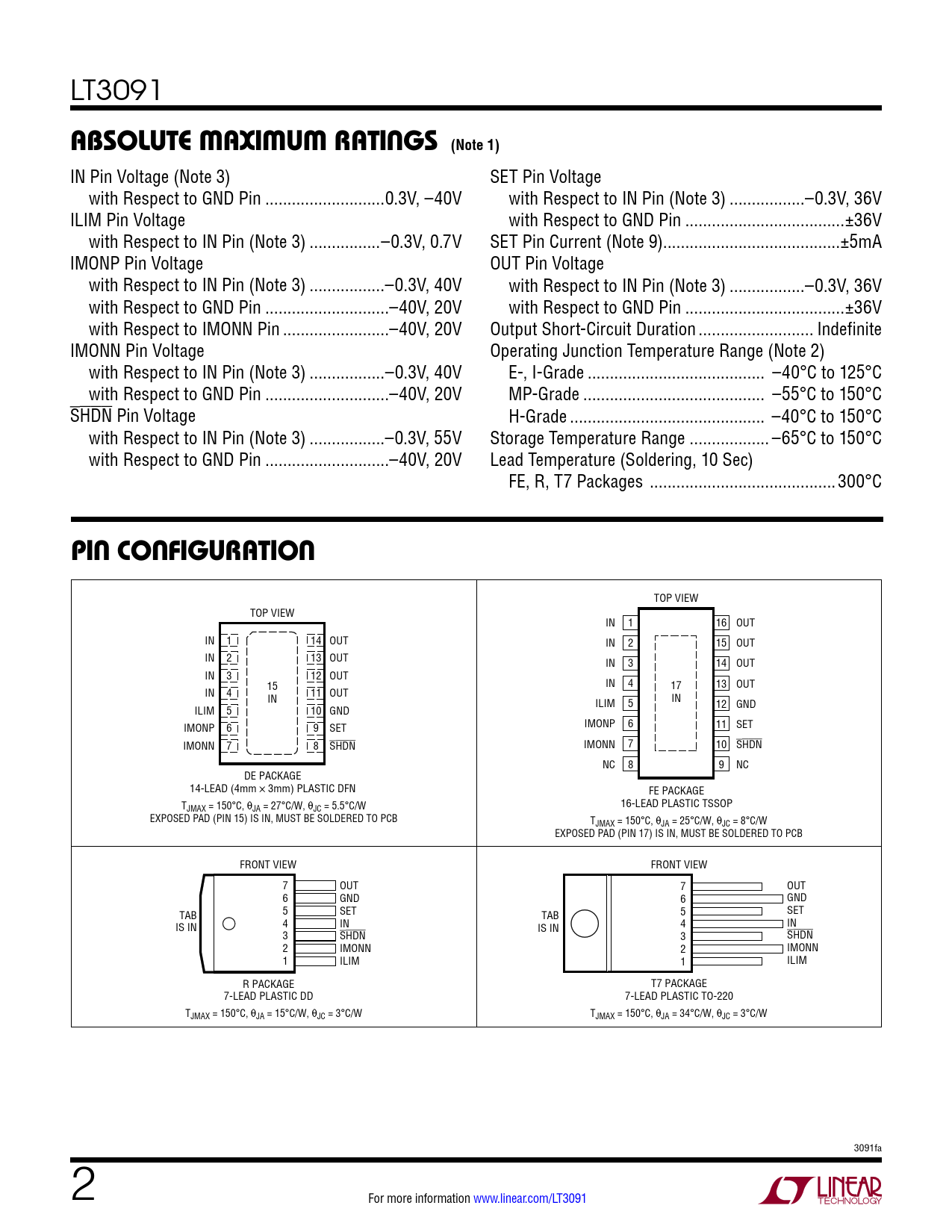

absoluTe MaxiMuM raTings (Note 1)
