| Description | –36V, 600mA Negative Linear Regulator with Programmable Current Limit |
| Pages / Page | 36 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion … |
| File Format / Size | PDF / 704 Kb |
| Document Language | English |
absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LT3090

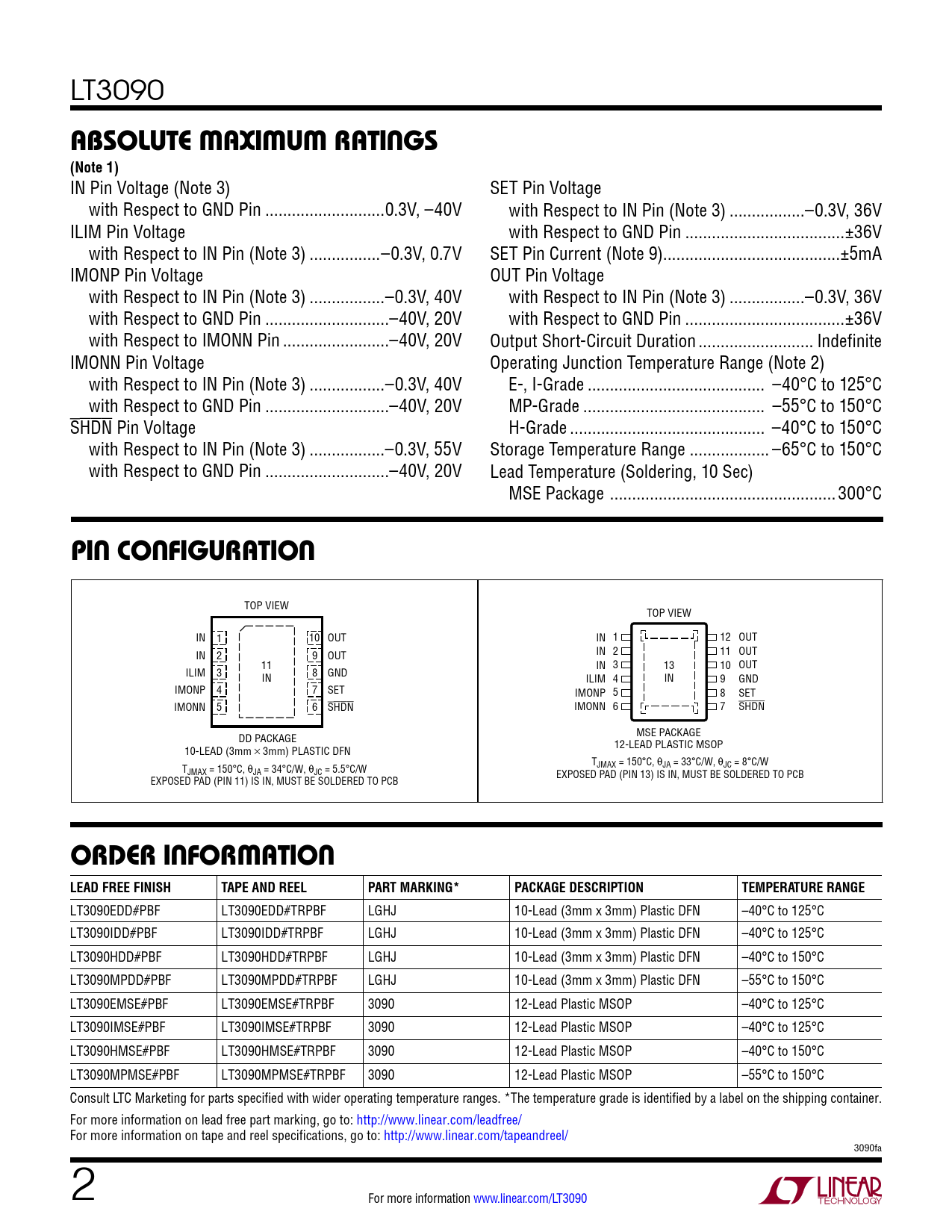

absoluTe MaxiMuM raTings (Note 1)
IN Pin Voltage (Note 3) SET Pin Voltage with Respect to GND Pin ...0.3V, –40V with Respect to IN Pin (Note 3) ...–0.3V, 36V ILIM Pin Voltage with Respect to GND Pin ..±36V with Respect to IN Pin (Note 3) ..–0.3V, 0.7V SET Pin Current (Note 9)..±5mA IMONP Pin Voltage OUT Pin Voltage with Respect to IN Pin (Note 3) ...–0.3V, 40V with Respect to IN Pin (Note 3) ...–0.3V, 36V with Respect to GND Pin ..–40V, 20V with Respect to GND Pin ..±36V with Respect to IMONN Pin ..–40V, 20V Output Short-Circuit Duration .. Indefinite IMONN Pin Voltage Operating Junction Temperature Range (Note 2) with Respect to IN Pin (Note 3) ...–0.3V, 40V E-, I-Grade .. –40°C to 125°C with Respect to GND Pin ..–40V, 20V MP-Grade ... –55°C to 150°C SHDN Pin Voltage H-Grade .. –40°C to 150°C with Respect to IN Pin (Note 3) ...–0.3V, 55V Storage Temperature Range .. –65°C to 150°C with Respect to GND Pin ..–40V, 20V Lead Temperature (Soldering, 10 Sec) MSE Package ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW IN 1 10 OUT IN 1 12 OUT IN 2 9 OUT IN 2 11 OUT 11 IN 3 13 10 OUT ILIM 3 IN 8 GND ILIM 4 IN 9 GND IMONP 4 7 SET IMONP 5 8 SET IMONN 5 6 SHDN IMONN 6 7 SHDN DD PACKAGE MSE PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN 12-LEAD PLASTIC MSOP T T JMAX = 150°C, θJA = 33°C/W, θJC = 8°C/W JMAX = 150°C, θJA = 34°C/W, θJC = 5.5°C/W EXPOSED PAD (PIN 13) IS IN, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 11) IS IN, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3090EDD#PBF LT3090EDD#TRPBF LGHJ 10-Lead (3mm x 3mm) Plastic DFN –40°C to 125°C LT3090IDD#PBF LT3090IDD#TRPBF LGHJ 10-Lead (3mm x 3mm) Plastic DFN –40°C to 125°C LT3090HDD#PBF LT3090HDD#TRPBF LGHJ 10-Lead (3mm x 3mm) Plastic DFN –40°C to 150°C LT3090MPDD#PBF LT3090MPDD#TRPBF LGHJ 10-Lead (3mm x 3mm) Plastic DFN –55°C to 150°C LT3090EMSE#PBF LT3090EMSE#TRPBF 3090 12-Lead Plastic MSOP –40°C to 125°C LT3090IMSE#PBF LT3090IMSE#TRPBF 3090 12-Lead Plastic MSOP –40°C to 125°C LT3090HMSE#PBF LT3090HMSE#TRPBF 3090 12-Lead Plastic MSOP –40°C to 150°C LT3090MPMSE#PBF LT3090MPMSE#TRPBF 3090 12-Lead Plastic MSOP –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3090fa 2 For more information www.linear.com/LT3090
