Datasheet LT3015 (Analog Devices) - 2

ManufacturerAnalog Devices
Description1.5A, Low Noise, Negative Linear Regulator with Precision Current Limit
Pages / Page26 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION
File Format / SizePDF / 555 Kb
Document LanguageEnglish

ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION

ABSOLUTE MAXIMUM RATINGS (Note 1) PIN CONFIGURATION

Model Line for this Datasheet

LT3015 Series

Text Version of Document

LT3015 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
SHDN Pin Voltage IN Pin Voltage ...±33V (with Respect to GND Pin) ..–33V, 22V OUT Pin Voltage (Note 10) ..±33V Output Short-Circuit Duration .. Indefinite OUT to IN Differential Voltage (Note 10) ..–0.3V, 33V Operating Junction Temperature Range (Note 9) SENSE Pin Voltage E-, I-Grade .. –40°C to 125°C (with Respect to IN Pin) (Note 10) ...–0.3V, 33V MP-Grade ... –55°C to 125°C ADJ Pin Voltage Storage Temperature Range .. –65°C to 150°C (with Respect to IN Pin) (Note 10) ...–0.3V, 33V Lead Temperature (Soldering, 10Sec) SHDN Pin Voltage MS12E Package ..300°C (with Respect to IN Pin) (Note 10) ...–0.3V, 55V Q, T Packages ... 250°C
PIN CONFIGURATION

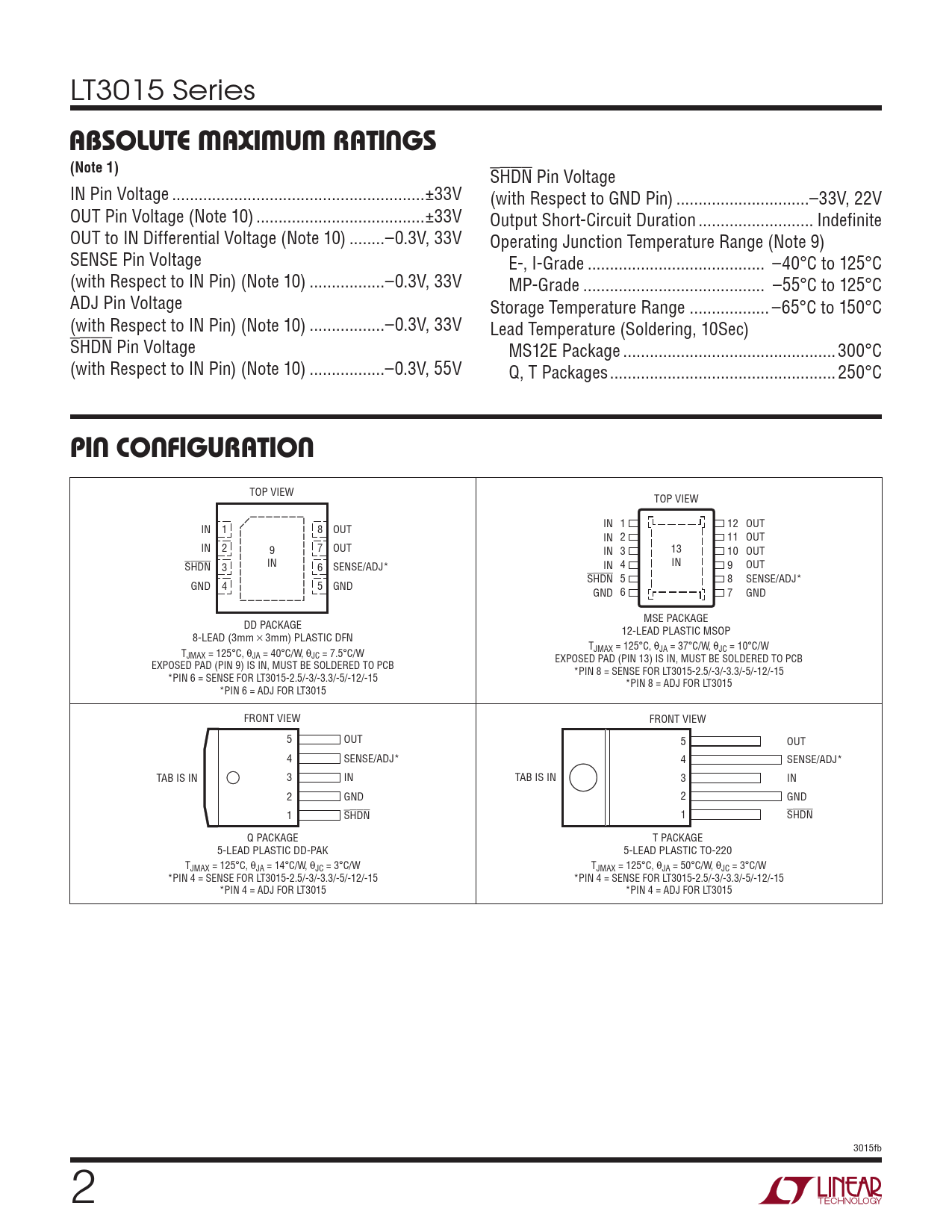

TOP VIEW TOP VIEW IN 1 8 OUT IN 1 12 OUT IN 2 11 OUT IN 2 9 7 OUT IN 3 13 10 OUT IN SHDN 3 6 SENSE/ADJ* IN 4 IN 9 OUT SHDN 5 8 SENSE/ADJ* GND 4 5 GND GND 6 7 GND DD PACKAGE MSE PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN 12-LEAD PLASTIC MSOP T T JMAX = 125°C, qJA = 37°C/W, qJC = 10°C/W JMAX = 125°C, qJA = 40°C/W, qJC = 7.5°C/W EXPOSED PAD (PIN 13) IS IN, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 9) IS IN, MUST BE SOLDERED TO PCB *PIN 8 = SENSE FOR LT3015-2.5/-3/-3.3/-5/-12/-15 *PIN 6 = SENSE FOR LT3015-2.5/-3/-3.3/-5/-12/-15 *PIN 8 = ADJ FOR LT3015 *PIN 6 = ADJ FOR LT3015 FRONT VIEW FRONT VIEW 5 OUT 5 OUT 4 SENSE/ADJ* 4 SENSE/ADJ* TAB IS IN 3 IN TAB IS IN 3 IN 2 GND 2 GND 1 SHDN 1 SHDN Q PACKAGE T PACKAGE 5-LEAD PLASTIC DD-PAK 5-LEAD PLASTIC TO-220 TJMAX = 125°C, qJA = 14°C/W, qJC = 3°C/W TJMAX = 125°C, qJA = 50°C/W, qJC = 3°C/W *PIN 4 = SENSE FOR LT3015-2.5/-3/-3.3/-5/-12/-15 *PIN 4 = SENSE FOR LT3015-2.5/-3/-3.3/-5/-12/-15 *PIN 4 = ADJ FOR LT3015 *PIN 4 = ADJ FOR LT3015 3015fb 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
